Coleman BT200X User Manual

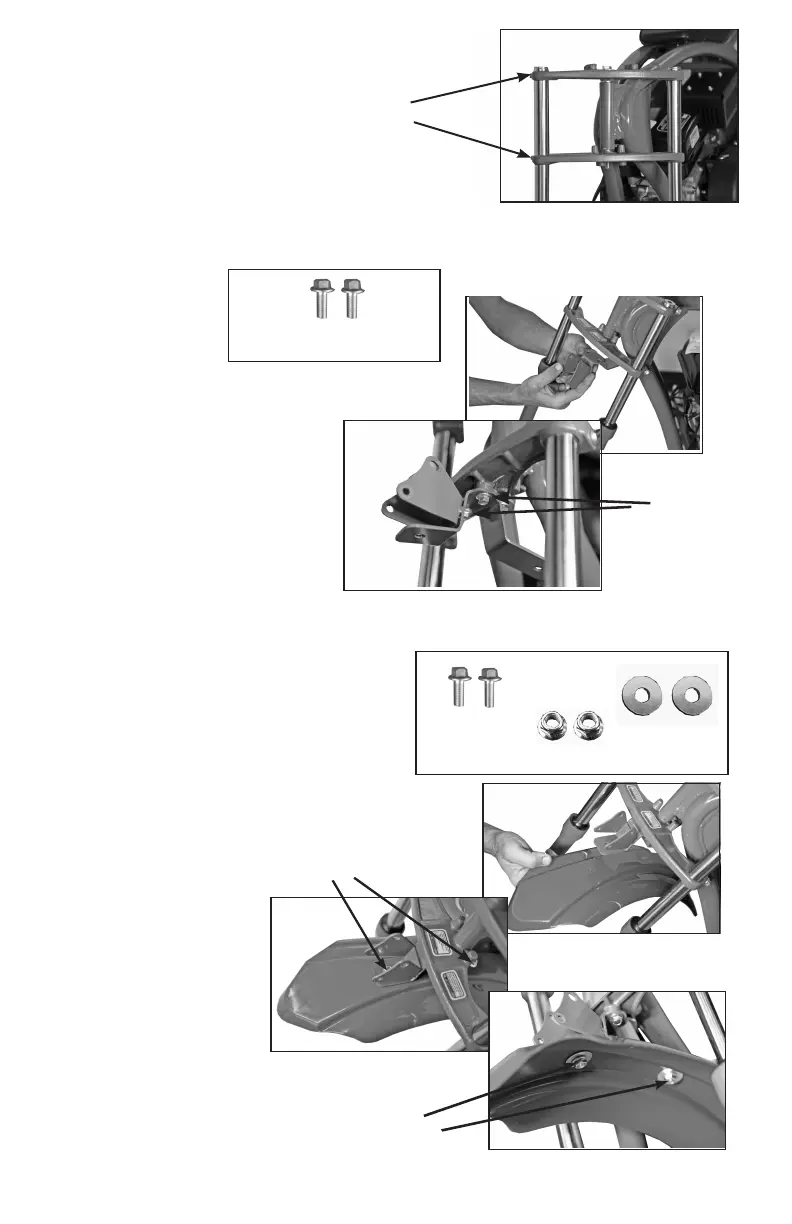

M8 x15 Bolts
Fork Bolts
3. Tighten fork bolts on both
sides of assembly
Torque for bolts 15 Ft/Lbs.
3
M8 Nuts
Large M8
Washers
FRONT FENDER INSTALLATION
LIGHT/FENDER BRACKET INSTALLATION
1. Attach Light/Fender
bracket using M8 x 15 bolts
M8 X 15
bolts
M8 x 20 Bolts
1. Attach front fender with M8
x 20 bolts, large M8 washers
and M8 nuts.
M8x20 bolts
Large M8 Washers
M8 Nuts
Torque bolts
15 ft/lbs.
Torque bolts
15 ft/lbs.

Coleman BT200X Specifications

General

Frame	Steel
Fuel System	Carburetor
Final Drive	Chain
Fuel Capacity	0.95 Gallons
Front Suspension	Telescopic fork
Front Brake	Disc
Front Tire	70/100-19
Rear Tire	90/100-16
Engine Type	Single Cylinder, 4-Stroke, Air Cooled
Weight	121 kg (267 lbs)
Weight Capacity	150 kg (330 lbs)
Wheelbase	1, 270 mm (50 inches)
