M8 Nuts
M8 Rubber
Grommets

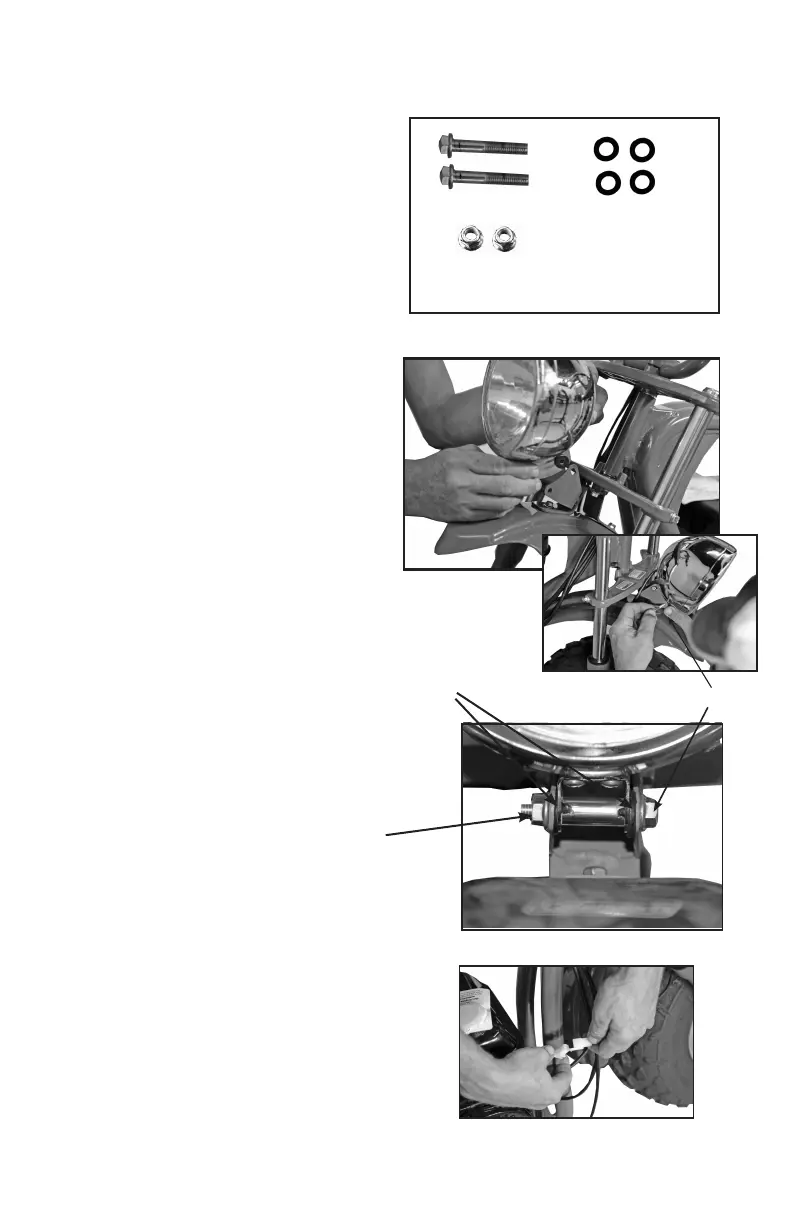

LIGHT INSTALLATION
1. Install front light onto bracket
using M8 X 50 bolts, M8 rubber
grommets and M8 nuts.
Rubber Grommets
between light
and light bracket
Torque Bolts 12ft/lbs
Note: The rubber gromets fit
between the light and the light
bracket
M8 Nuts
M8 x 50 Bolts
2. Plug light wires into wires
from engine assembly
M8 x 50 Bolts
7
