6.4.2 Changing the traction cylinder
Traction drive
Replacing the traction cylinder
If the traction cylinder is damaged or worn, it must be replaced.
Procedure:

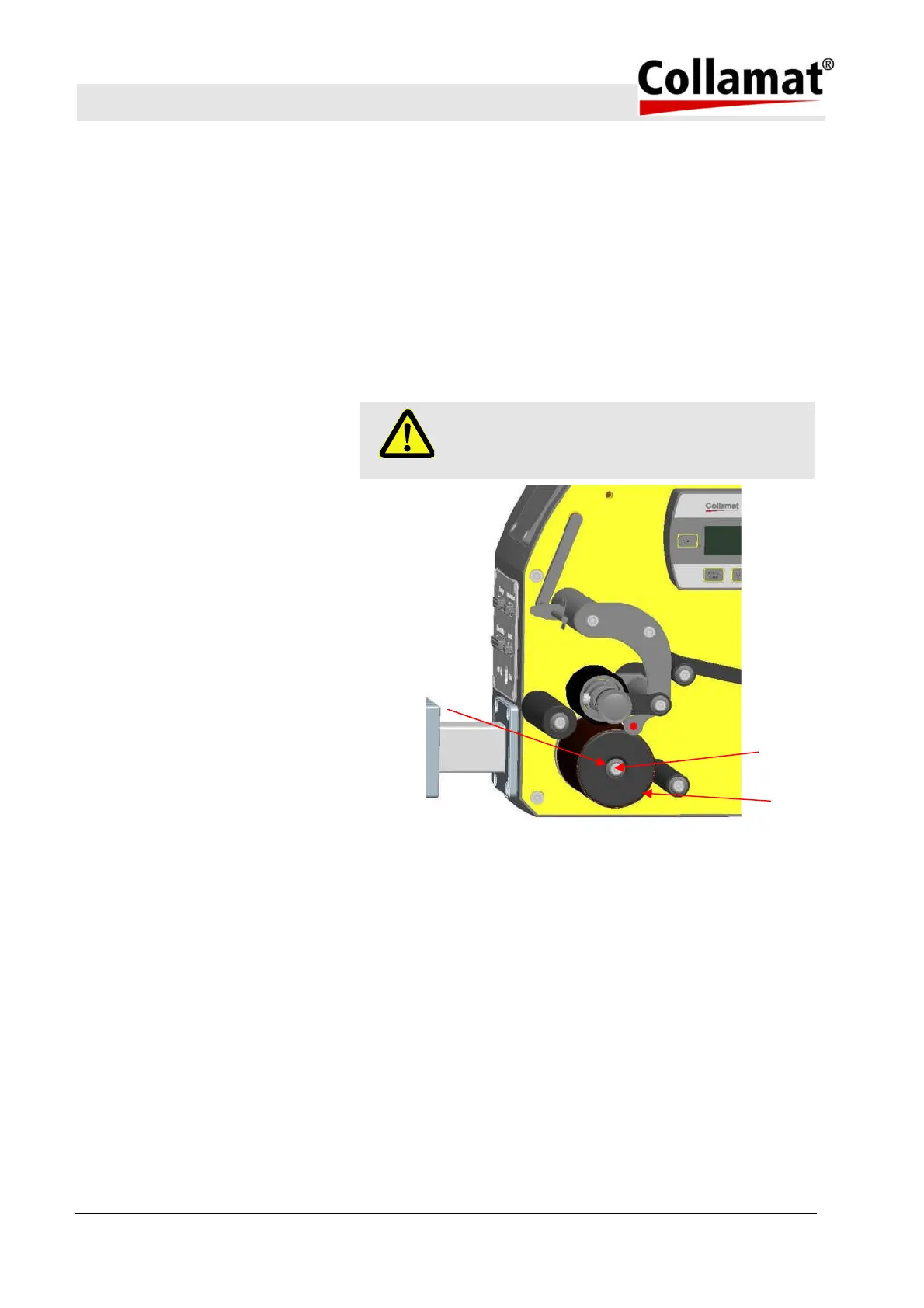

 Unscrew and remove the support screw (1).
 Pull off the traction cylinder (2) from the cylinder bearing (3) and
the drive axle.
 Ensure that the wedge (4) is not damaged.
 Install the traction cylinder in the reverse sequence performed for
removal.
CAUTION!
If possible, install a new wedge during installation.
The wedge is a wear part!
1 Support screw
2 Traction cylinder
3 Cylinder bearing
