6.4.17Changing the rewinder motor (RW active)
Optional electric rewinder

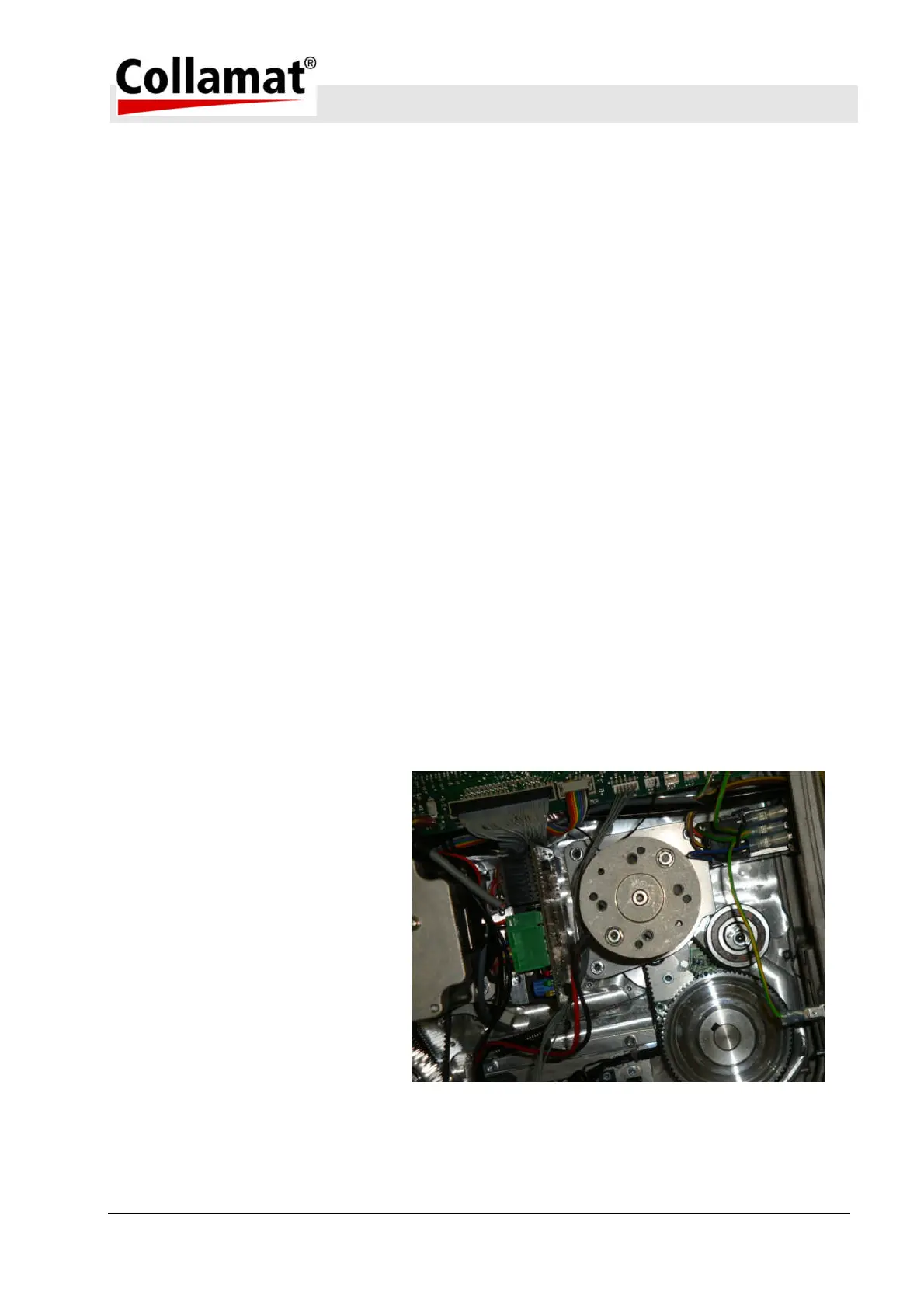

Replacing the DC motor
If the drive motor of the optional electric rewinder is damaged, it
must be replaced.
Procedure:
 Remove the housing cover on the back. For this, remove
the six screws.
 Loosen the belt tensioner (1)
 Detach the red and black motor cable from the power plug
J4 of the motor controller.
 Remove the three fixing screws (5) at the DC motor
flange.
 Remove the DC motor with the timing belt.
 Remove the two screws from the bearing support block.
 Remove the bearing support block
 Pull the gear (7) off the motor axis.
 Push the gear onto the motor axis (new motor)
 Distance from gear (upper guide disk) to motor: 17.5 mm,
then insert timing belt.
 Press the bearing support block onto the motor axis (up to
the stop), then fix it with two screws.
 Clean the motor support block and the motor flange plate,
then re-apply thermal paste
 The remaining steps are performed in reverse order from
disassembly.
 Set the belt tension (see above)
1 Interface
2 Connection cable
3 Fixing screw
4 Fixing screw
5 Protective hood
