Collamat S Series - Firmware Update - Master-Controller (RCM4010)

Collamat S Series
Faults, repair and maintenance work
Release: V1.15/05/2013 91
6.4.20Firmware Update – Master-Controller (RCM4010)
Programming the Master-
Controller of the main control
unit (Mainboard)
Installing programming software:
Install the programming firmware Dynamic C (V 10.66) to your
PC/Laptop. Default directory: C:\Programme\DCRABBIT_10.66\
The „Flash Image“ file will be generated by Collamat AG (with the
Dynamic C Software: Compile Project to .bin File =
MAIN-V1-02.BIN = Version: V 1.02 (FDT3 Data File)
Programming cable:
- Rabbit Programming cable (serial) from Reselec AG
U.Art.Nr. 30010012 (1.27m)
Digi International Inc. Part Number 20-01-0542 (use
„PROG“ – connector)
- US232B-100-BST-cable (Blister 100cm cable) from Reselec AG
U.Art.Nr. 24010001 (1.00m) incl.. EasySYNC driver software
(optional use of this cable, if no serial port is available on your
computer – load EasySYNC-driver first).
Programming (RCM4010):

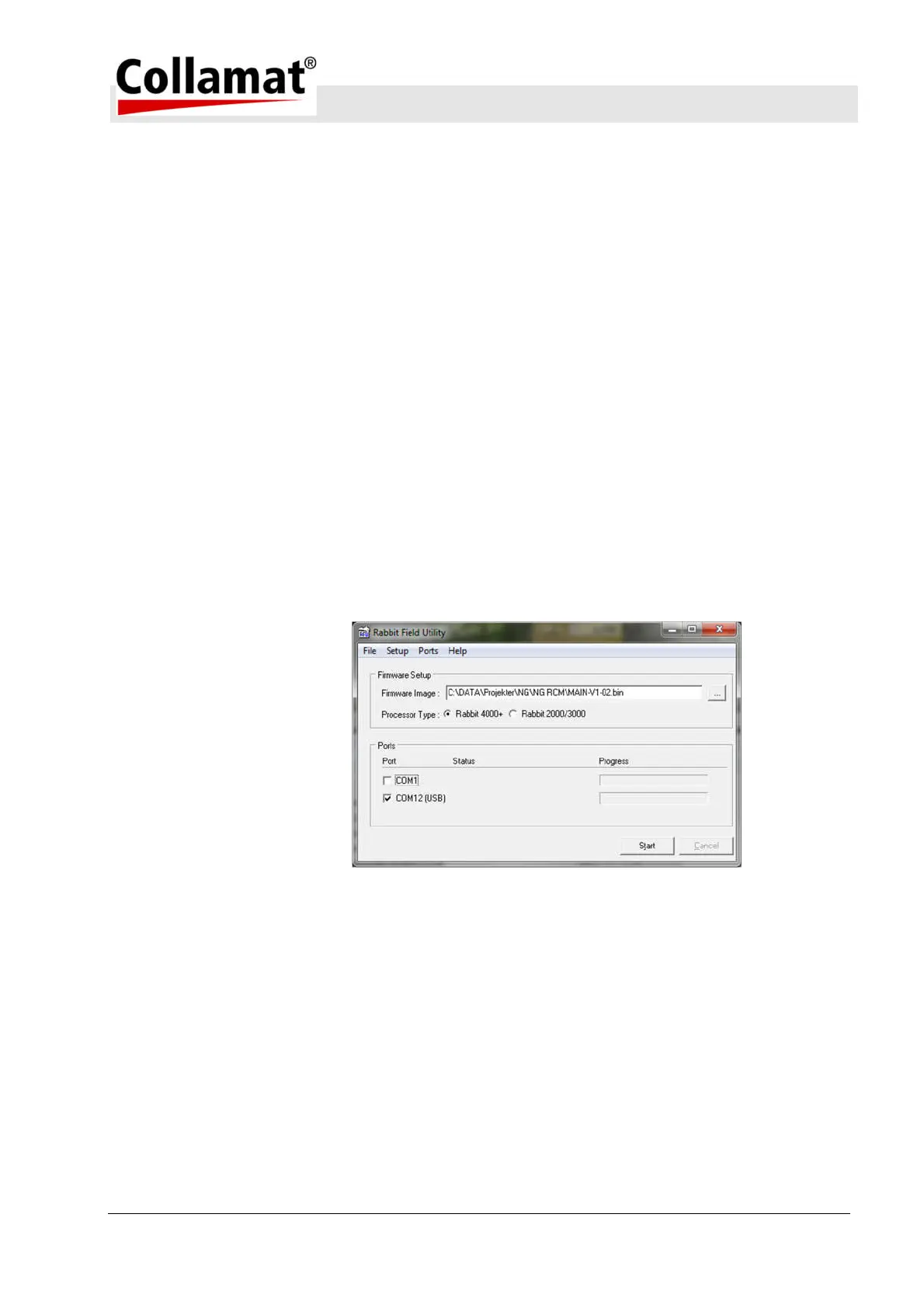

Use the RFU-program from Digi International Inc. (part of the Dynamic
C Installation – see above) to program the Master-controller. RFU =
Rabbit Field Utility Version 4.62 – or later version.
Settings:
- Firmware Setup: Firmware Image: LW:\......\MAIN-V1-02.BIN
- Processor Type: Rabbit 4000+
- Setup: Communication:- Baud Rates: Debug Baud Rates: 115200
,
max.Download Baud Rate: 230400,
Stop Bits: 1
- Enable Processor verification, Optional: use USB to Serial Converter
Plug in programming cable: „PROG“– plug to J1 of RCM4010
(red cable -> top left)
Load firmware image to RCM4010:
- Start: - sending cold loader, sending Pilot BIOS, erasing flash
- programming - observe the „Progress Bar“
- Finish! Switch off Collamat S – remove programming cable.
Check firmware version on RCM4010 - see 6.4.21
