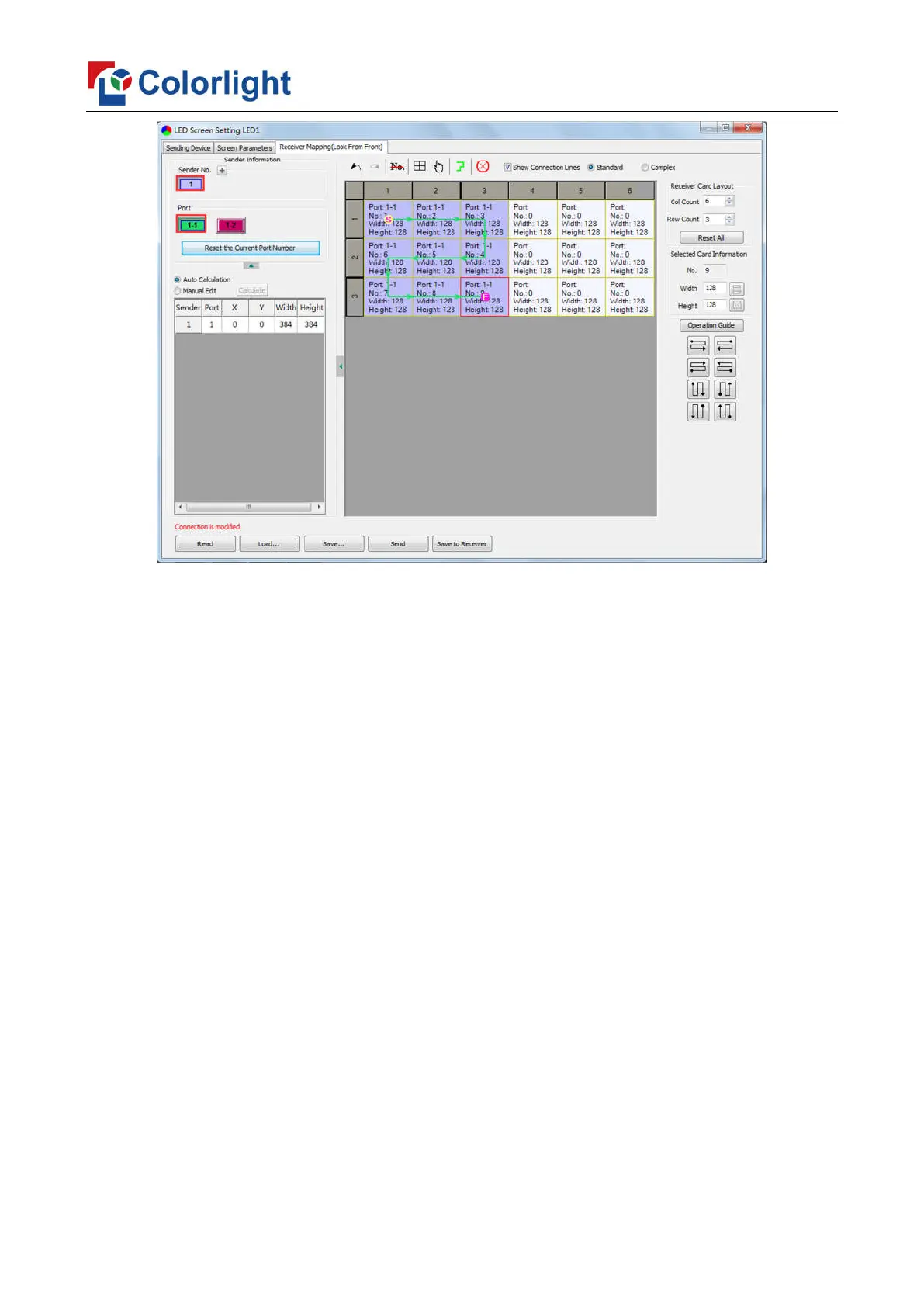

There are two methods to set up:
◆Use mouse to select one by one:
In the mapping area, select the first receiving card based on the actual connection of
the net port (view from the front), and then set up the actual loading width and height of the
target receiving card in the right side (128*128 as an example).
Click the receiver (receiving card) one by one, according to actual connecting line, until
the last one for this network port loads.
◆Connection Pattern:
Aiming at the LED screen with standard connection lines, firstly set up the receiving
card information according to the actual loading width and height (128*128 as an example).
Select the connection line you want from the right side, then cover the corresponding
area of net port loading in mapping area, finally complete setting.
Note: As the cabinets have multiple and different specification (that is the inconsistent
capacity of the receiving card), you can select the different one to adjust separately after
completing setting.
