MACHINE PREPARATION

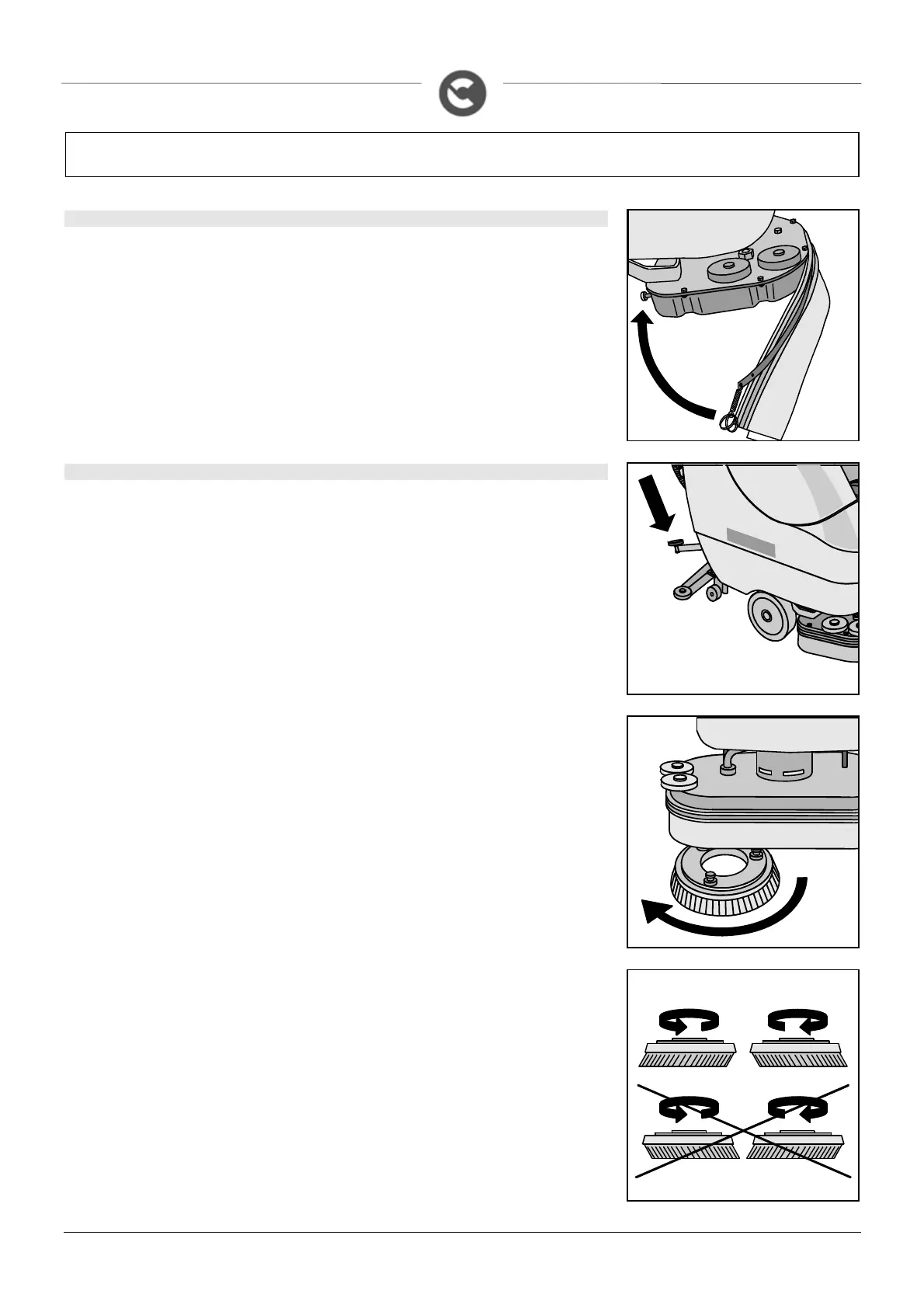

ASSEMBLING THE SPLASH GUARD
For packaging reasons, the splash guard is supplied disassembled from the machine,
and must be assembled as shown in the figure.
ASSEMBLING THE BRUSHES ABILA 42-52
1. Raise the base by means of the appropriate pedal.
2. With the base up, insert the brushes in the plate housing beneath the base, turning
them until the three pins enter the niches in the plate itself; turn until the pin is
pushed towards the coupling spring and is locked into place.
The figure shows the rotation direction to hook up the right-hand brush; for the left-
hand one, rotate in the opposite direction
You are advised to invert the right and left-hand brushes every day. If the brushes are
not new however, and have deformed bristles, it is better to reassemble them in the
same position (the right-hand one on the right, and the left-hand one on the left), to
prevent the different inclination of the bristles producing an overload on the brush
motor as well as excessive vibrations.
