COMAC VERSA 65BT - Preparing the Appliance for Use; Handling, Unpacking, and Transport

21
PREPARING THE
APPLIANCE
21
PREPARING THE APPLIANCE

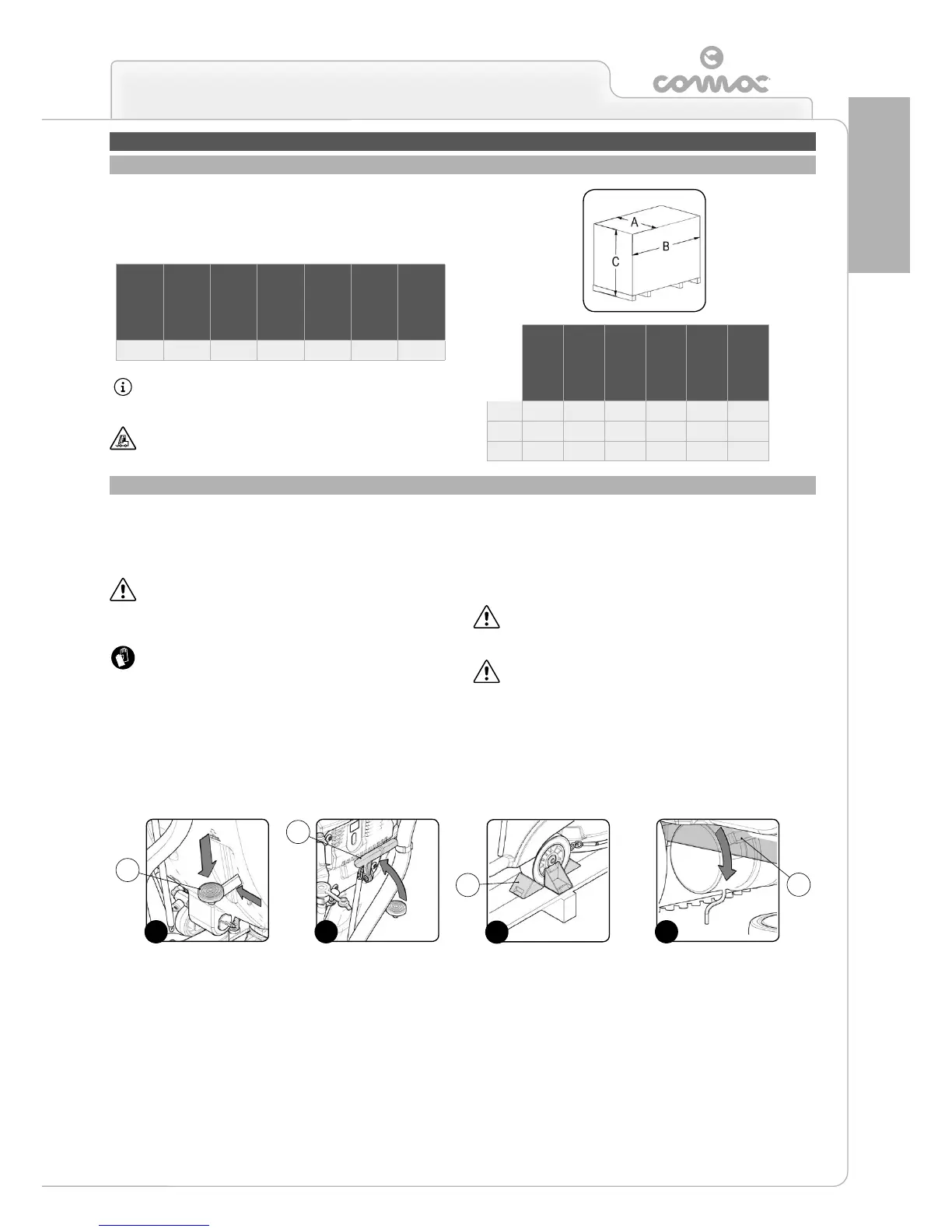

HANDLING THE PACKED APPLIANCE
Since the packaging elements (plastic bags, staples, etc.) are a
potential source of danger, they should not be left within the reach of
children, disabled persons, etc.
Gross weight of device, including packaging, is:
HOW TO UNPACK THE APPLIANCE (versions without PM)
The appliance is contained in specic packaging, to remove the
appliance do as follows:
1. Place the lower part of the outer packaging in contact with the
oor.
ATTENTION: use the pictograms printed on the box as
reference.
2. Remove the outer package.
ATTENTION: these operations must be carried out using
protective gloves to avoid any possible contact with the edges
or tips of metal objects.
3. Raise the brush head unit and press the brush head control pedal
(1) (on the rear of the device) downwards (Fig.1).
4. Raise the squeegee unit and turn the squeegee control lever (2)
in the direction of the arrow in (Fig.2). The lever is located on the
back of the device.
5. The device is xed to the pallet by means of wedges (3) that block
the wheels and brush head (Fig.3). Remove the wedges.
6. For BT versions, release the electronic brake and turn the lever
(4) in the direction of the arrow. The traction gearmotor is located
on the left side of the device (Fig.4).
7. Using a chute, bring the device down from the pallet, pushing it
backwards.
ATTENTION: Do not t the brush and the rear squeegee unit
before unloading the device, and avoid any violent jolts to the
brush head and the squeegee support.
ATTENTION: during the operation to move it by pushing, the
electric brake should not be engaged. The device will anyway
have safety braking, once a set critical speed has been
exceeded the internal braking system of the chopper circuit
board will activate automatically.
ATTENTION: it is recommended that all the packaging
components be kept for any future transportation of the
appliance.
ATTENTION: move the packaged product with handling
equipment that complies with legal requirements regarding
size and mass of the packaging.
1
2
21 4
4
3
3
U/M
ANTEA B
ANTEA
BT
ANTEA
BTO
ANTEA
BTS
VERSA
BT
A mm 610 610 610 730 730
B mm 1250 1250 1250 1330 1330
C mm 1135 1135 1135 1220 1220
ANTEA B
ANTEA BT
ANTEA
BTO
ANTEA
BTS
VERSA
55BT
VERSA
65BT
VERSA
50BTS
95kg 105kg 105 100 112 115 115
