COMPONENT POSITIONING

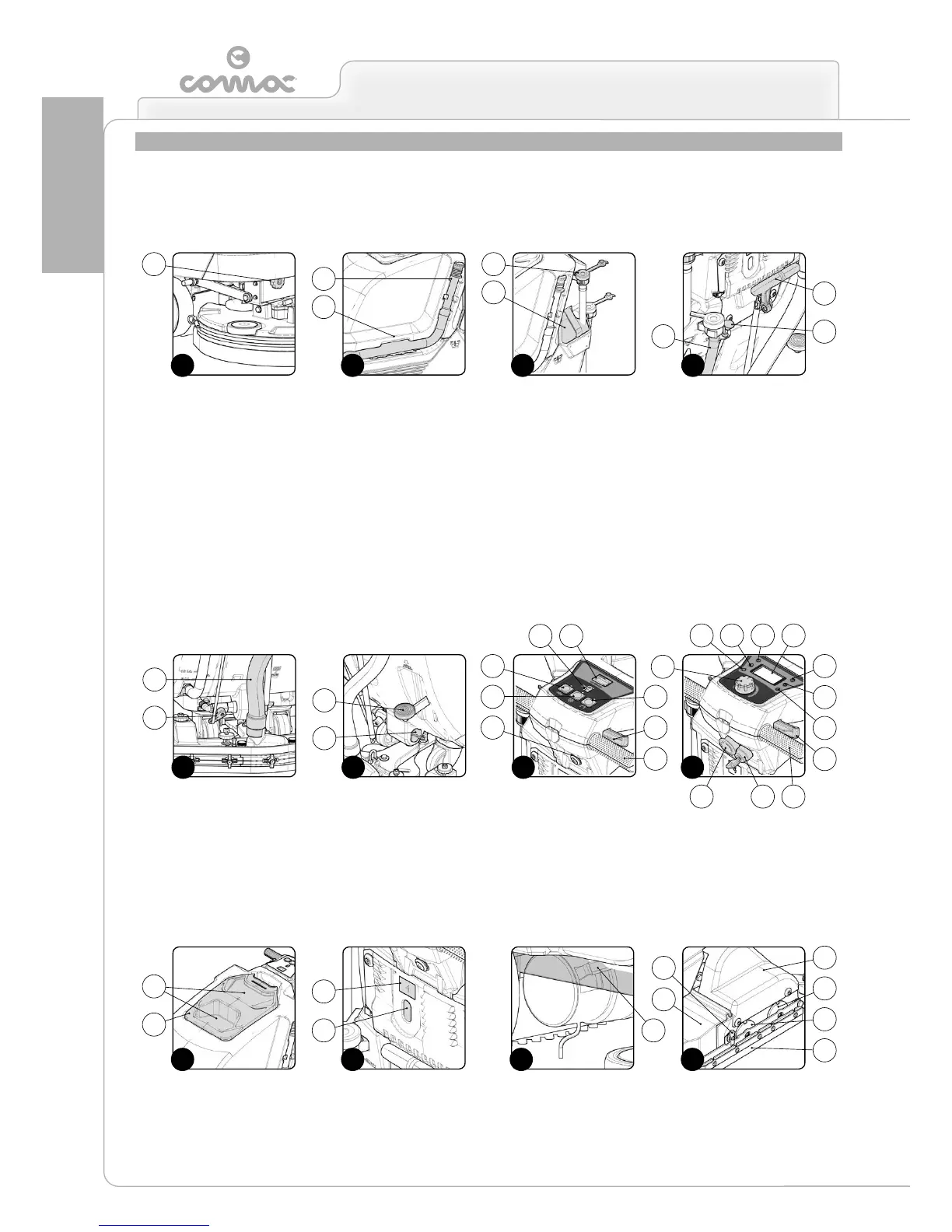

The basic components of the appliance are as follows:
1. Knob for adjusting the work speed (B versions) (Fig.1).
2. Recovery tank outlet pipe (Fig.2).
3. Handle for raising the recovery tank (Fig.2).
4. Solution tank cap/measuring device (Fig.3).
5. Tube for quick lling of the solution tank (Fig.3).
6. Tube for solution tank level/drainage (Fig.4).
7. Handle for raising the squeegee unit (Fig.4).
8. Rod for adjusting the detergent solution ow (Fig.4).
9. Tap control lever (Fig.5).
10. Squeegee unit vacuum hose (Fig.5).
11. Brush head control pedal (Fig.6).
12. Solution tank cap/lter (Fig.6).
13. Hour meter display (B versions) (Fig.7).
14. Battery charge level display (B versions) (Fig.7).
15. Button for switching brush head gearmotor ON and OFF (B
versions) (Fig.7).
16. Button for switching vacuum motor ON and OFF (B versions)
(Fig.7).
17. Button for switching water system solenoid valve ON and OFF
(B versions) (Fig.7).
18. Dead man's lever (Fig.7).
19. Handlebars (Fig.7).
20. Main switch (B versions) (Fig.7).
21. Control display (BT versions) (Fig.8).
22. ECO-MODE program selection button (BT versions) (Fig.8).
23. Button for adjusting the water ow in the device water system
(valid only for BT versions with CDS) (Fig.8).
24. Button for enabling or disabling reverse mode (BT versions)
(Fig.8).
25. Brush uncoupling button (BT versions) (Fig.8).
26. Button for adjusting the detergent solution percentage in the
device water system (valid only for BT versions with CDS) (Fig.8).
27. Knob for adjusting the operation control potentiometer (BT
versions) (Fig.8).
28. Dead man's lever (Fig.8).
29. Handlebars (Fig.8).
30. Key switch for controlling the main system (BT versions) (Fig.8).
31. Emergency button (BT versions) (Fig.8).
32. Recovery tank cover (Fig.9).
33. Storage compartment (Fig.9).
34. Cap for battery charger socket (battery charger versions only)
(Fig.10).
35. Battery charge LED display (battery charger versions only)
(Fig.10).
36. Electronic brake lever (BT versions only) (Fig.11).
37. Brush head carter guard (BTS version) (Fig.12).
38. Right side splash guard retainer knob (BTS version) (Fig.12).
39. Right side splash guard (BTS version) (Fig.12).
40. Front brush hub (BTS version) (Fig.12).
41. Rear brush hub (BTS version) (Fig.12).
42. Debris hopper (BTS version) (Fig.12).
43. Brush head control button (versions with PM) (Fig.8).
