ComAp InteliGen User Manual

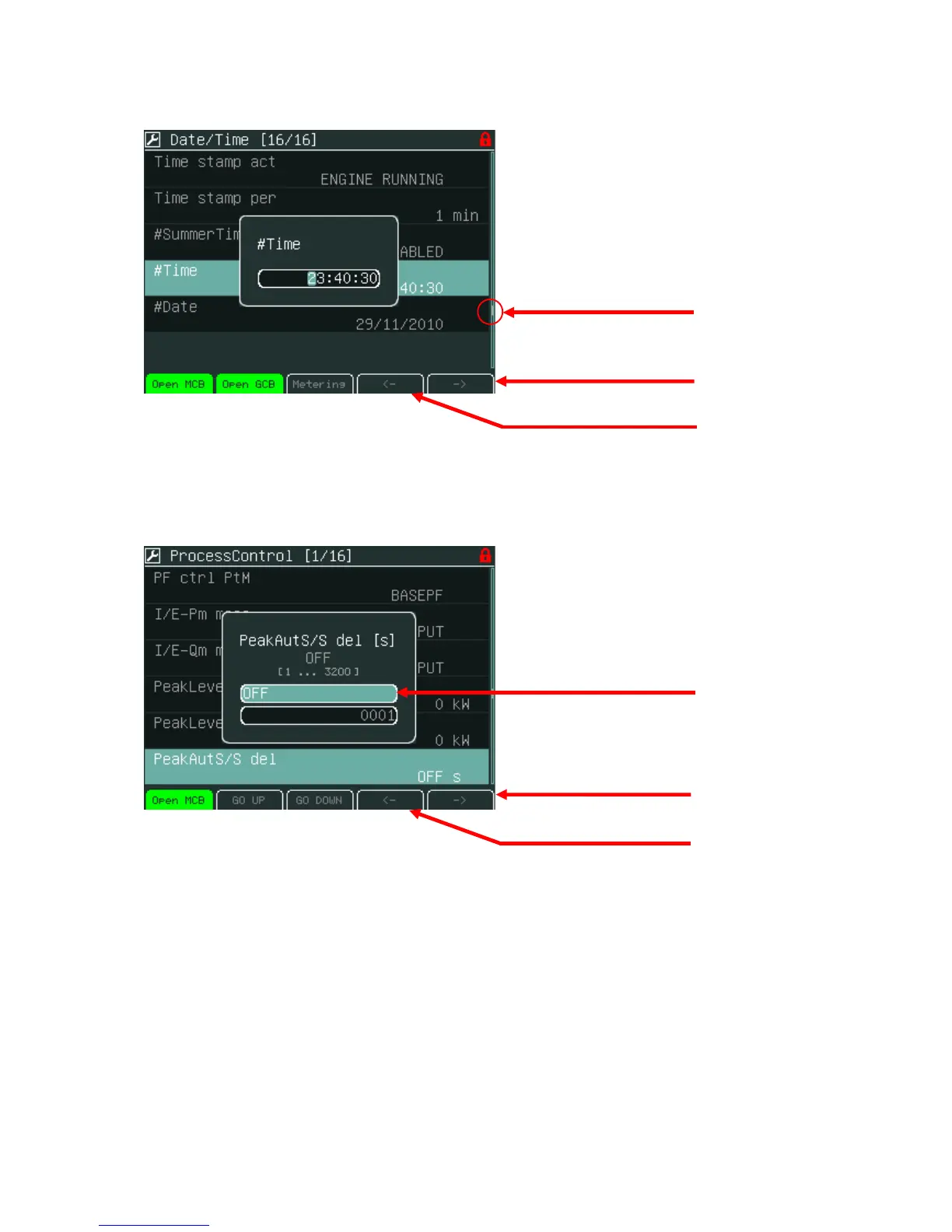

Time and Date Edit
Use ↑ ↓ buttons to select the number, → ← for the next position and press Enter
button.
Combined Setpoints
Use ↑ or ↓ buttons to select the number, → or ← for the next position or go Up or go
Down context buttons and press Enter button.
Scroll bar shows cursor
position on the current screen
Cursor position - Arrow right
Cursor position - Arrow left
Cursor position - Arrow right
Cursor position - Arrow left
Actual setpoint value
InteliVision 5, InteliVision 8 – Operator guide, ©ComAp – January 2014
IGS-NT Operator Guide 01-2014.pdf
16

ComAp InteliGen Specifications

General

Category	Control Systems
Manufacturer	ComAp
Synchronization	Yes
Load Sharing	Yes
PLC Functionality	Yes
Display	LCD
Communication	Ethernet
Operating Temperature	+70 °C
Power Supply	9-36 VDC
Remote Monitoring	Yes
Event Log	Yes
Tier Support	Tier 4
