InteliVision 5 - New Features List
21
14.4 How to setup InteliVision 5 for direct
connection
After start-up
After InteliVision 5 has been programmed with version 1.1.1 or higher connect it to the controller with direct
connection (see How to connect InteliVision 5 to the controller (DIRECT connection) on page 19) and
switch on.

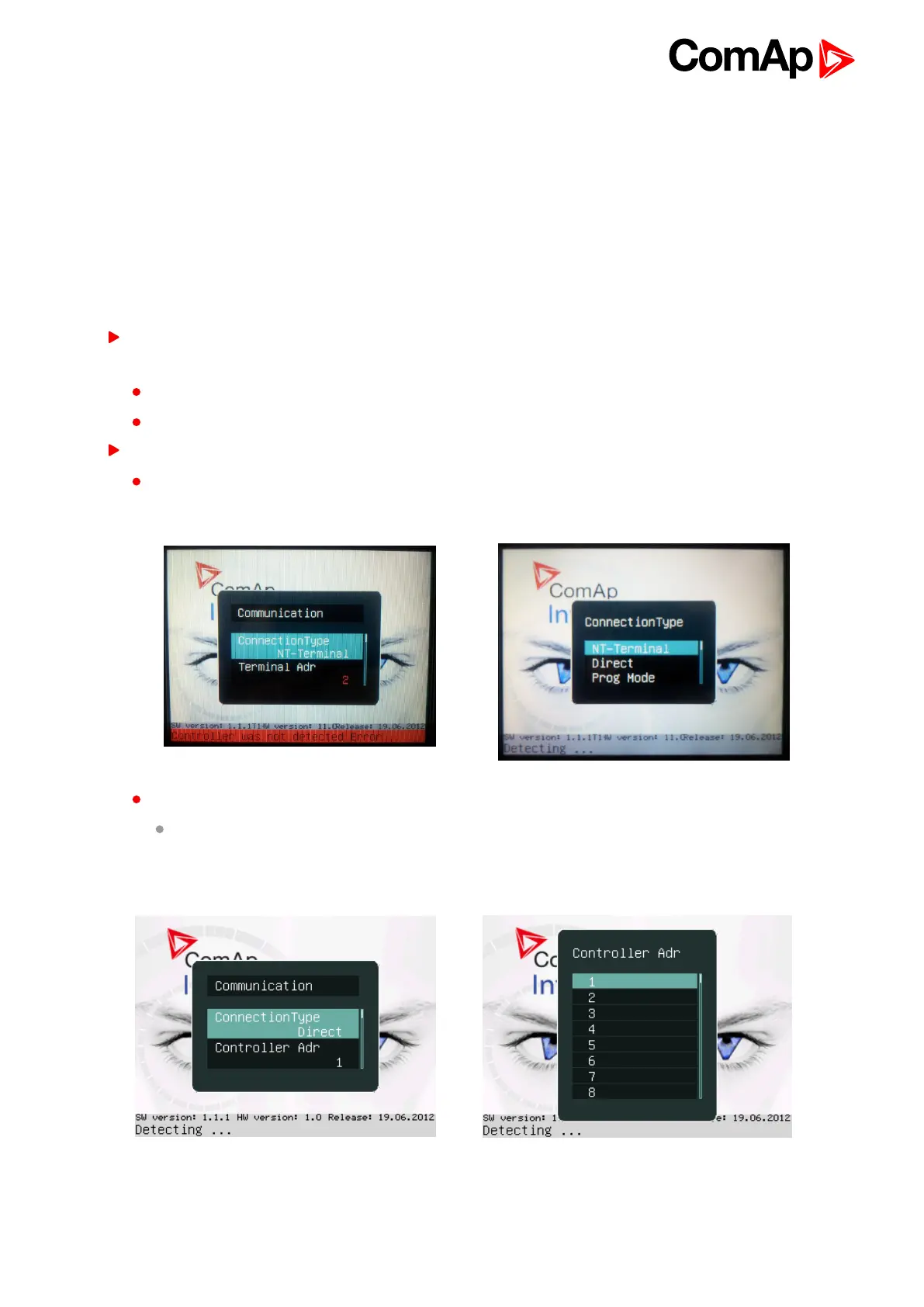

InteliVision 5 shows Communication window with two parameters:
ConnectionType – indicates last connection type which was selected, press “Enter” button to go to menu for
selection between options:
NT-Terminal
Direct
If NT-Terminal is selected then second parameter is:
Terminal Adr - indicates which terminal addresses are available (green text) and which are occupied
(red text), it is possible to connect 2 terminals to IG-NT-(BB) and 3 terminals to IS-NT-(BB) controllers.
If Direct is selected then second parameter is:
Controller Adr - address of the controller to which this InteliVision 5 should be connected (it is
always possible to connect one inteliVision 5 to only one controller). InteliVision 5 always tries to
detect automatically connected controllers so it is possible to wait until the controller address is
detected (scanning of all 32 addresses takes approximately 30 seconds).
During operation
