Comar Systems CSA-300 - Figure 44 Junction Box Connections

Installation
Page 41

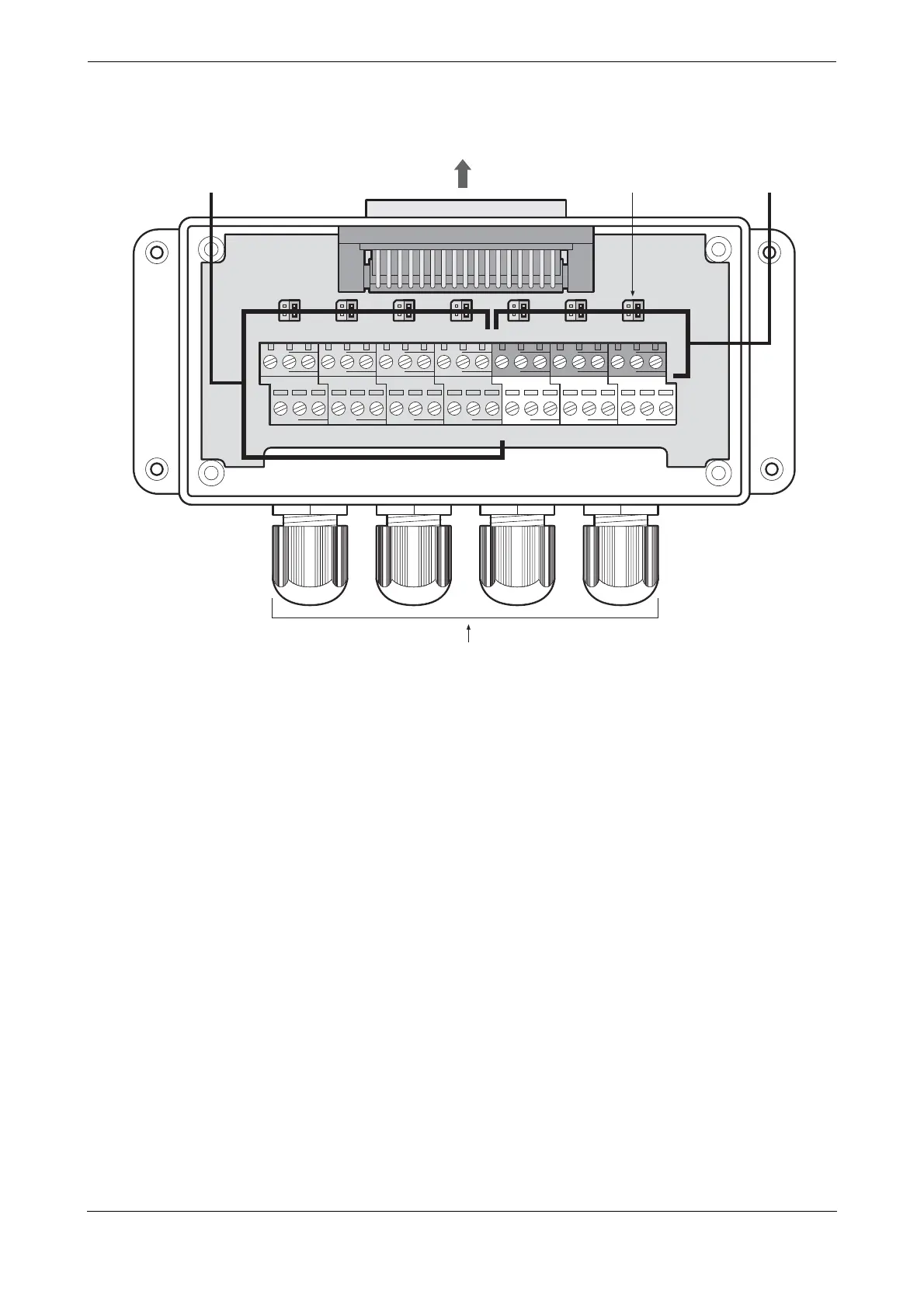

Figure 44 Junction box connections
Cable glands
To transceiver
Bidirectional data ports Sensor data inputsTermination jumpers
AB
EXT_DISP_IN
GND A B
PILOT_IN
GND A B
DGPS_IN
GND A B
LR_IN
GND A B
SEN1
GND A B
SEN2
GND A B
SEN3
GND
AB
EXT_DISP_OUT
GND A B
PILOT_OUT
GND A B
DGPS_OUT
GND A B
LR_OUT
GND COM NC
ALARM
NO GND GND
SHIELD
GND SM BS
SWITCHES
COM
