Transmitter Display
RF512, RF513 and RF516 transmitters all have a liquid crystal display as shown below. Only
RF512 is capable of using all three display areas.

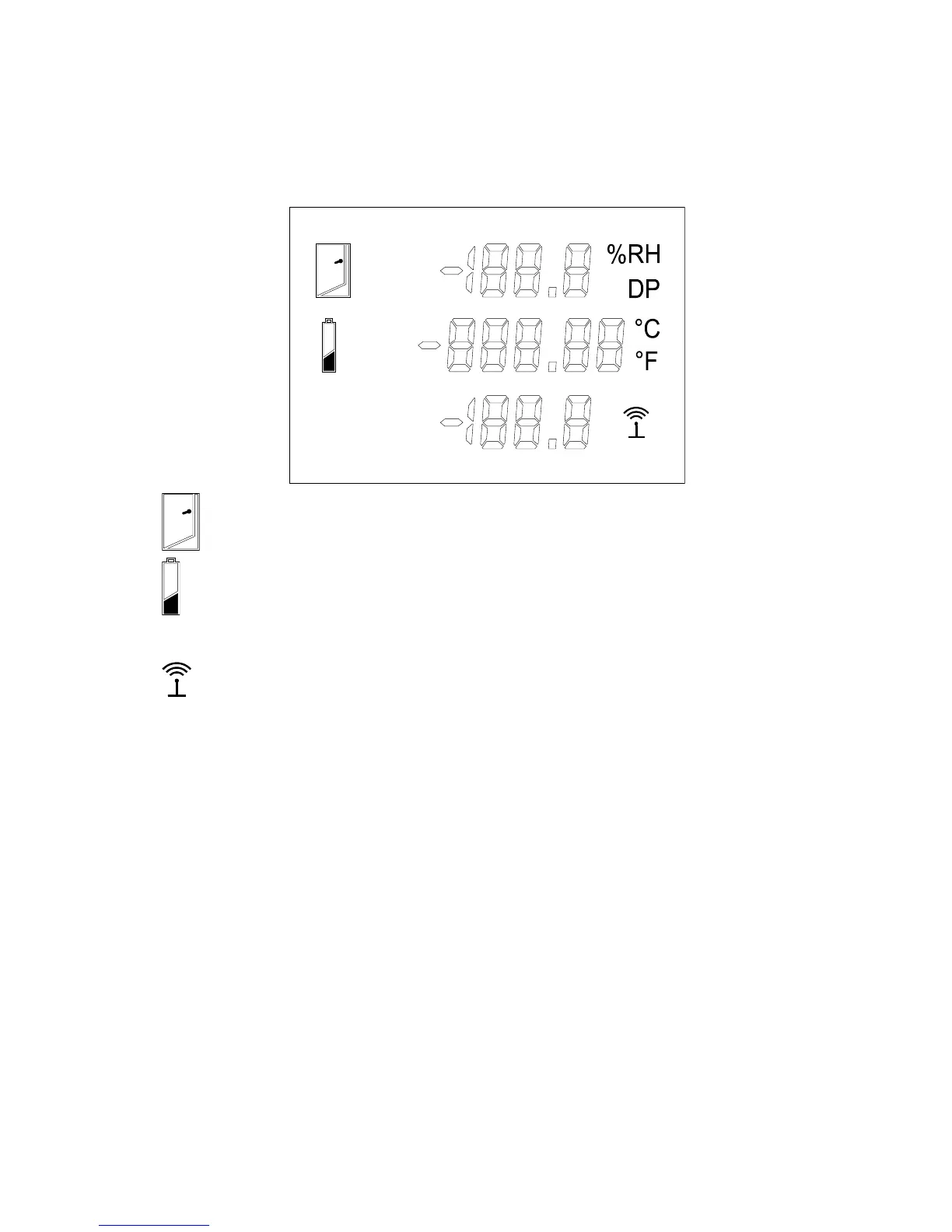

Figure 6 - Transmitter Display
Indicates that the door channel reads open.
Indicates that the internal lithium battery requires replacement.
Indicates that any channel has an unacknowledged alarm.
Indicates that the transmitter has logged onto the Gateway.
