Comelit 1456 - Configuration - ViP Manager Addressing

9
FLOOR VIP SYSTEM GAT E WAY
SOLO CON CAVO ROSSO COMELIT 2E7T000500
ONLY WI TH COMELIT RED CABLE 2E7T00 0500
FIXED PO E SETTABLE POE NO POE
HOME 1 HO ME 2 HOME 3 H OME 4
Art.1456
HOME INTERFACE
STATIC IP ADDRESS
192.168.1.200 (default)
192.168.1.X
192.168.1.1
ROUTER
...
Installer PC
...
see page 5
a
c
d
b
Installer PC
SYSTEM
SCAN
IN DHCP
AN IP COMPATIBLE
WITH THE SYSTEM
WILL BE ASSIGNED
TO THE PC
E.G. 192.168.1.30

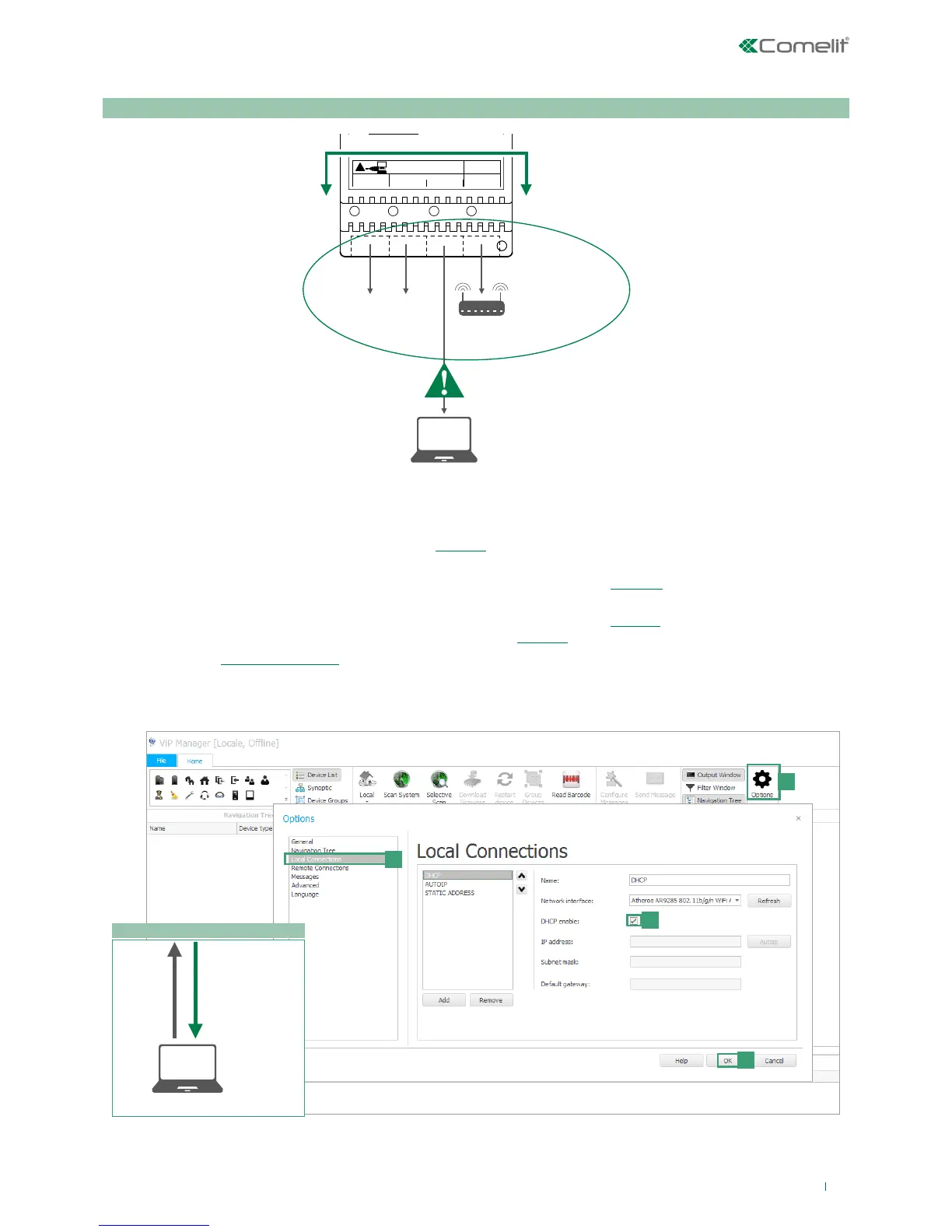

During the system scan...
CASE 1: default address of the device (192.168.1.200) belonging to the same router network (e.g.: 192.168.1.1)
2) ViP Manager addressing
Follow the procedure below to perform a system scan in “DHCP”, to locate all the devices connected to interfaces VIP
SYSTEM and HOME:
• an IP address will be automatically assigned to the devices in addressing mode “Autoip” (connected to interface VIP
SYSTEM);
• an IP address will be automatically assigned to the devices in addressing mode “DHCP” (connected to interface
HOME), if the system is connected to a server with the function “DHCP” active;
• devices with “Static IP address” will be identified only if they have a network address that is compatible with that of
interface HOME.
1. From Options [a] / Local connections [b] tick DHCP Enable [c] and confirm [d].
PERFORM A DHCP SYSTEM SCAN AND ASSIGN A ViP ADDRESS
