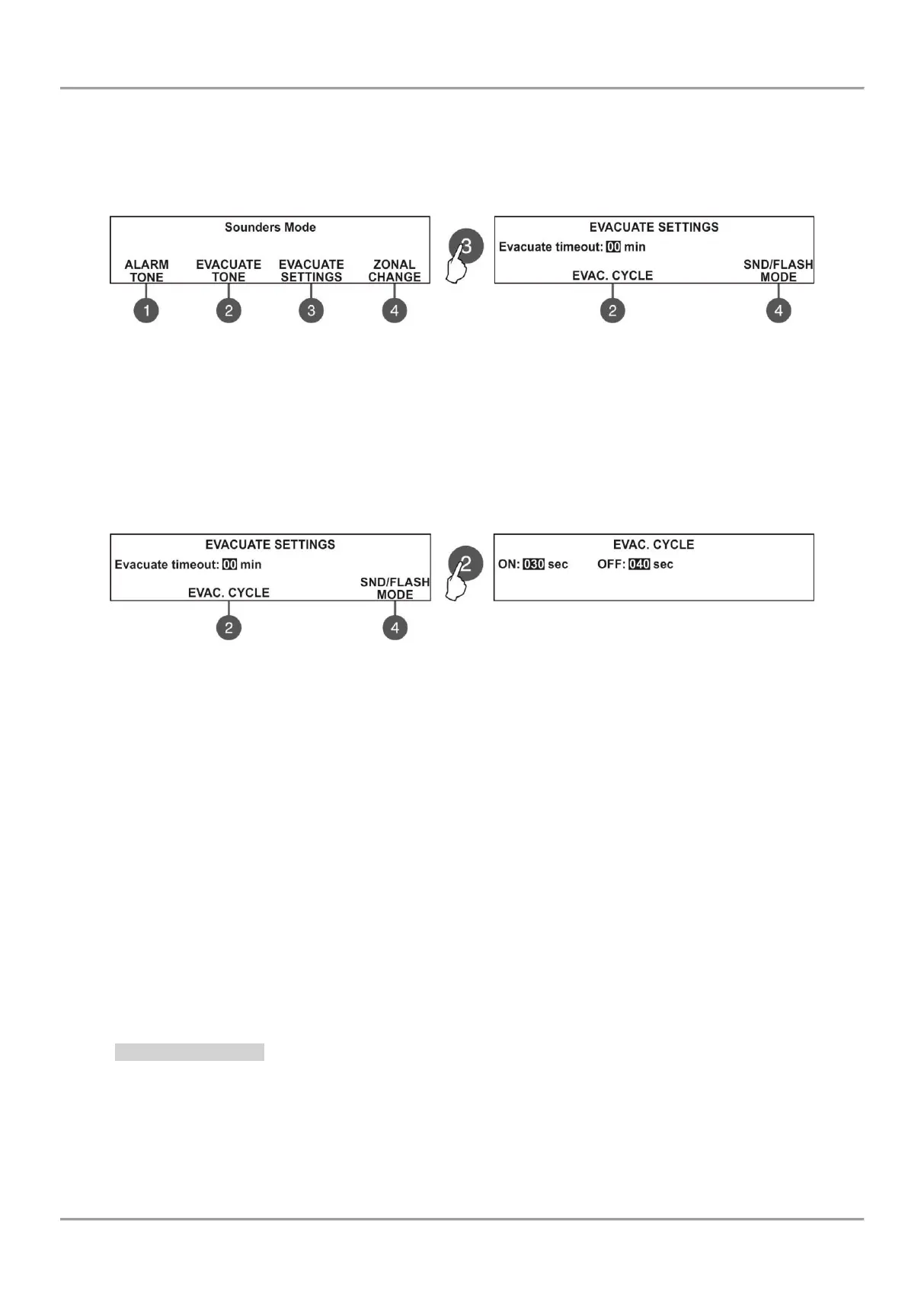

The EVACUATION TIMEOUT is a time delay introduced and running until starting evacuation of the site. Enter the
submenu and use the up/ down arrow buttons to set the EVACUATION TIMEOUT delay from 0 to 10 minutes. In a fire
situation only the sounder of the zone(s) with alarm condition will be activated.
After the set evacuation timeout delay is over the sounders in the whole site are activated also, according the settings
of the (4) MODE button in this menu:
Use the (4) MODE button to set the action of the sounders:
- SND/FLASH – The addressable sounders are activated with sound and LED indication. The sounder outputs
on the panel PCB are activated also.
- SND – The addressable sounders are activated with sound indication only. The sounder outputs on the panel
PCB are activated also.
- FLASH - The addressable sounders are activated with LED indication only. The sounder outputs on the panel
PCB are not activated.
Use the (2) EVAC.CYCLE button to set a cycle sounding of the sounders in evacuation mode. The function requires
setting of two special times defining time intervals for sounders operation as follows:
- ON – Set this time interval from 1 to 600 seconds*. During evacuation mode the sounders will operate with
the setting of (4) MORE button described above – for example when SND/FLASH option is set the sounders will
sounding and flashing at the same time (for the models available).
- OFF - Set this time interval from 1 to 600 seconds*. During evacuation mode the sounders will operate only in
FLASH mode (for the models available).
* Use the up and down arrow buttons to set the parameter value; use the left and right arrow buttons to switch between
the two parameters.
ATTENTION: The EVAC. CYCLE function is active only when the ON and OFF times are set different from 0. If
one or both times are set to 0 the function is inactive.
For example: The MODE is set to SND/FLASH and the EVAC. CYCLE TIMES are set ON: 030 sec and OFF: 040 sec.
When Evacuation is in process on the protected site the operation of the system according the EVACUATION
SETTINGS will be the following: The sounders will sound (Evacuation tone) and flash for 30 seconds and then will only
flash for 40 seconds. The cycle will repeat until resetting of the system or pressing the Silence Alarm button.
(4) ZONAL CHANGE – Press to change the sounders operation mode.
• Common - All sounders will be activated with no sense of zone to which they are connected.
• Zonal - Only the sounder of the zones with alarm condition will be activated.
7.6.7 Company Logo
Enter company name and site description using the arrow buttons as described in APPENDIX B. The description can
be entered on 2 rows with up to 40 symbols (including spaces) each. To enter symbols and letters use the buttons with
up and down arrows. The cursor is moved with the left and right arrow buttons. After entering the full system name and
information for the site, press “ENTER” button to save it. See also APPENDIX B.
