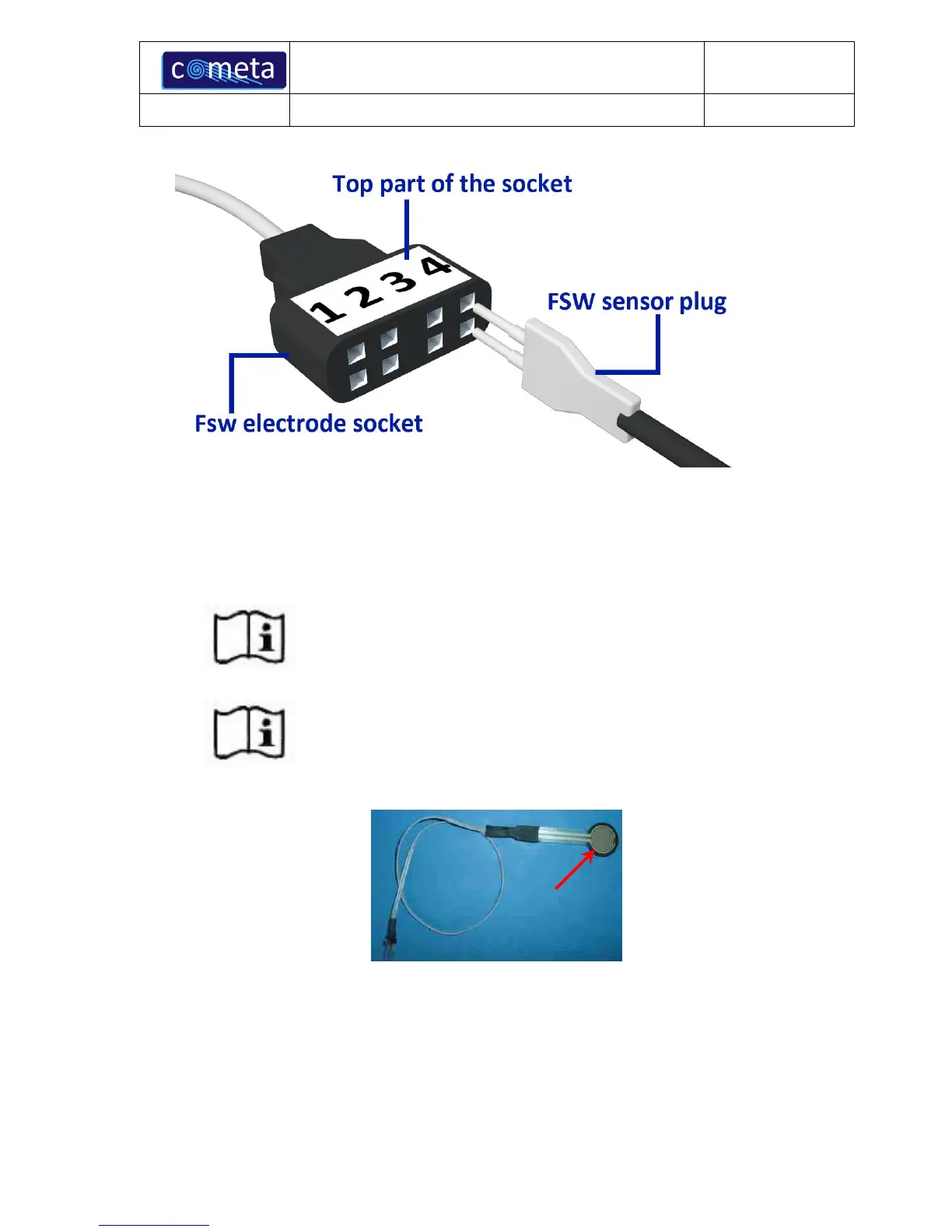

The FSW sensor plug isn’t polarised and can be connected in both ways; the FSW electrode socket has
a white coloured label to make easier the numeric assignment of sensors.
If FSW has been wrongly connected, sensors will not work properly, but the sys-
tem will not be damaged.
To avoid any damage of the sensors, we suggest sticking the dedicated circular
stickers on the grey side of footswitches (i.e., on the side with pressure sensors), as
in the picture below. The stickers application on the black side can damage foot-
switches themselves.
5. SYSTEM MAINTENANCE
5.1 Repairable parts
