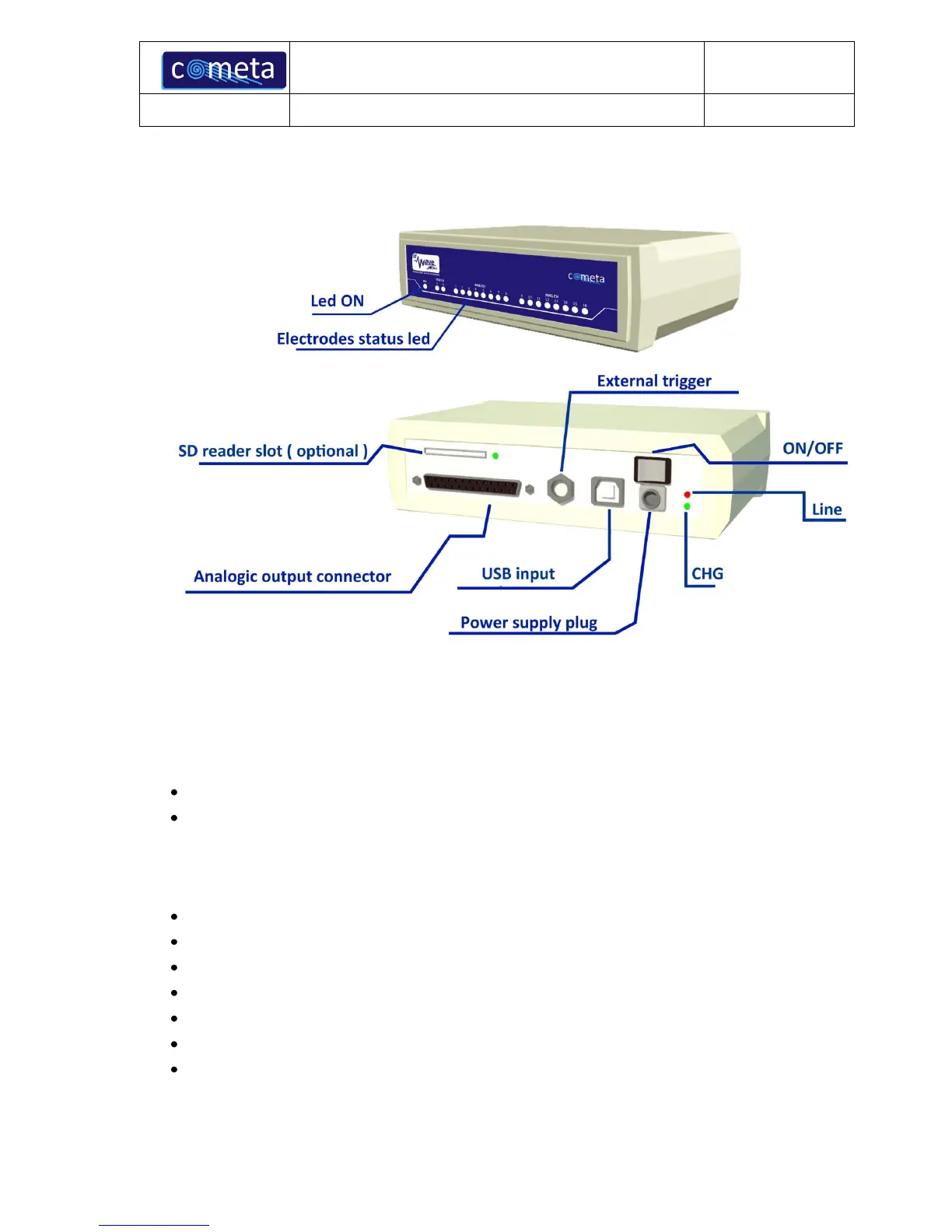

3.3 Base unit
The base unit has a front panel with status LEDs.
The signals are:
LED off: the electrode is non active;
LED on: green light: the electrode is active.
The front panel has also a further green LED indicating the on/off status of the base unit.
On the rear panel:
on-off switch;
jack for the external power supply
female port SCSI 68 pin for analog outputs;
jack for the connection of the external trigger;
USB port to connect the host PC;
LED showing presence of supply;
LED for auxiliary functions (CHG) ā not active
