The power supply module is connected to the acquisition unit through a sliding mechanism; the unit
disassembly should be done only during maintenance (exhausted battery or electric wire deteriorated).
In these cases follow the instructions in the chapter “Replacement of electrode battery”.
Each EMG module (total of 16) is also equipped with a tri-axis accelerometer, able to capture the

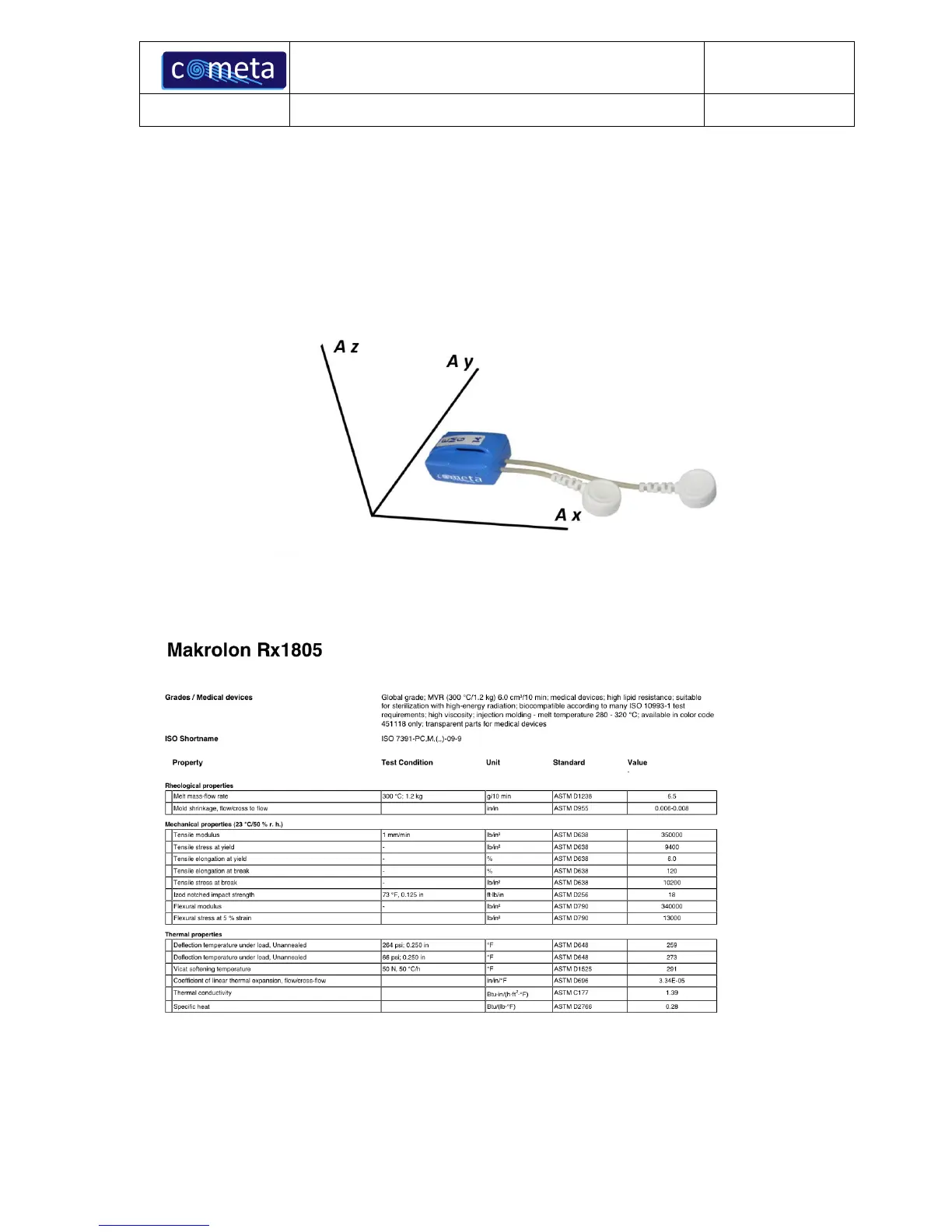

minimum movement of the body in space. The disposition of the accelerometer sensors is the following:
The electrodes are realized with fully bio-compatible plastic produced by Bayer. Below teh factsheet of
the material used for the electrodes casings:
In order to apply the electrodes on the patient’s skin it is necessary to use bi-adhesive tape suitable to be in
contact with the skin and therefore certified to that use, such as the 3M 1522 Double Coated Medical Tape
produced and certified by 3M.
