Comfort COMPASS - Seat Depth Guide

7
INSTALLATION & SET UP
Acta-Back
®
, Acta-Back
®
Deep, Acta-Back
®
Contour,
Acta-Back
®
LTS, Acta-Embrace
®
& Acta-Embrace
®
LTS
Acta-Relief™ & Acta-Relief™ LTS
SEAT DEPTH
2 in. Spacer
3 in. (SDU)
1 + 2 in. Spacers
4 in. (SDU)
1 in. Spacer
2 in. (SDU)
CONVERSION CHART
.356” = 0.9 cm
1” = 2.5 cm
1.5” = 3.6 cm
2” = 5.1 cm
2.356” = 6.0 cm
3” = 7.6 cm
3.356” = 8.5 cm
4” = 10.2 cm
4.356” = 11.1 cm
5” = 12.7 cm
6” = 15.2 cm
7” = 17.8 cm
ACTA-BACK
®
& ACTA-EMBRACE
®
(including DEEP,
CONTOUR and LTS) back supports require the use of
four spacers to connect the back support shell to the
hardware shell bracket. 1.5” of seat depth is used.
ACTA-RELIEF™ requires the use of at least a 1” spacer to connect the back support shell
and shell bracket. 2” of seat depth is used in this conguration which is standard when
shipped with a back support. This allows for the user to still immerse through the shell of
the Acta-Relief™ back support effectively reducing the amount of seat depth used from
that listed.
Extra spacers may be used to increase the available immersion. The possible shell spacer
congurations include 1” spacers only, 2” spacers only, or 1” and 2” spacers combined.
When using a head support with Acta-Relief™, an extra track spacer may be needed for
clearance. This spacer requires an additional .356” of seat depth.
See page 14 when
using shell spacers.
See page 16 if attaching Compass
®
Power Mount Hard-
ware to an Acta-Back
®
or Acta-Embrace
®
back support.
See page 15 when
using track spacers.

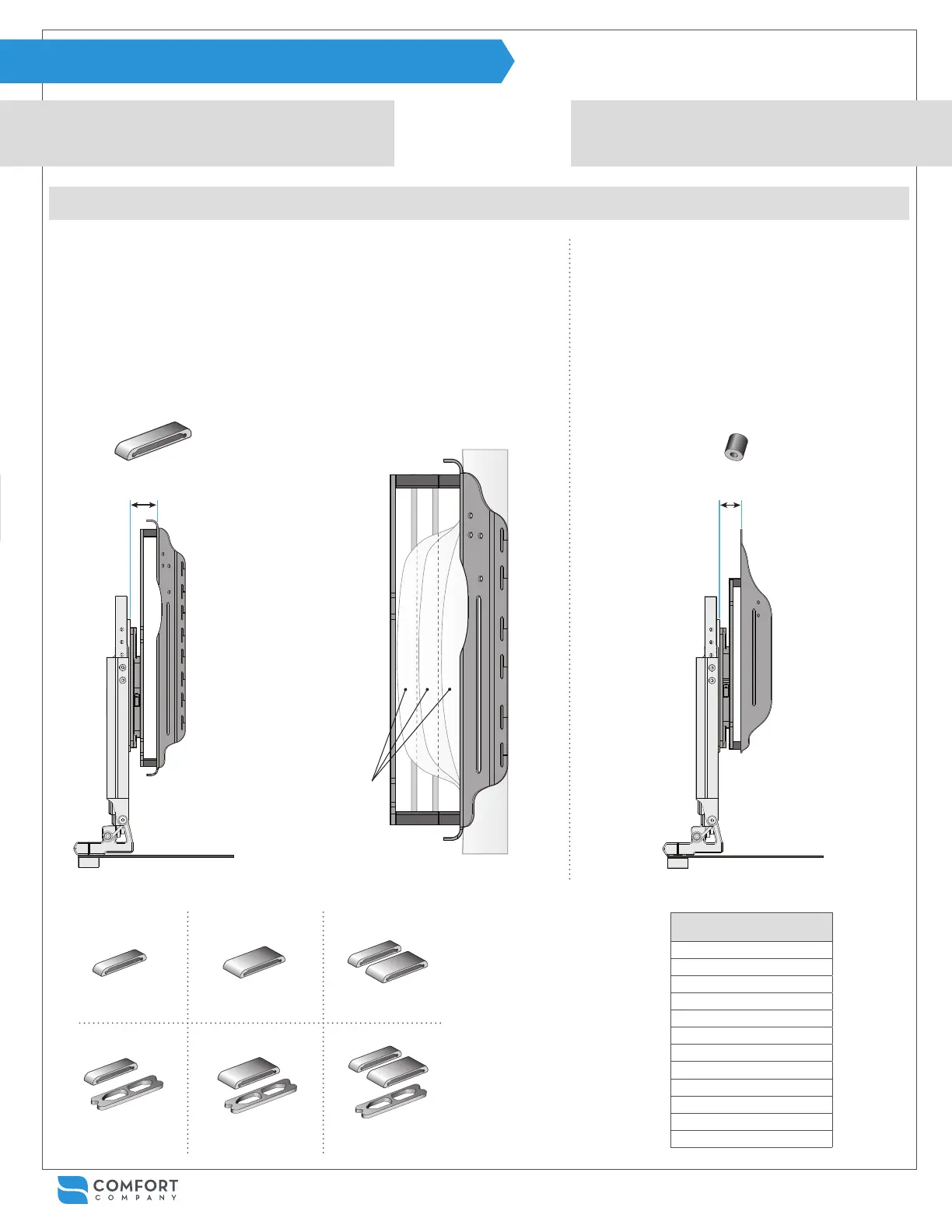

SEAT DEPTH USED = the distance from the base mounting plate to the rear face of the back support shell. This is the distance required for the Compass
®
Power
Mount Hardware assembly complete with spacers. Back support foam thickness varies by model and size and therefore is not included in seat depth used.
2 in. Seat Depth Used
MIN. REQUIRED
Standard ACTA-RELIEF™ conguration
x4
ACTA-BACK
®
shell shown
1.5 in. Seat Depth Used
Possible immersion with
different shell spacer
congurations
1 in. Only 2 in. Only
Both 1 & 2
ACTA-RELIEF™ without cover shown
2.356 in. (SDU)
1 in. Spacer
+ Track Spacer
3.356 in. (SDU)
2 in. Spacer
+ Track Spacer
4.356 in. (SDU)
1 & 2 in. Spacers
+ Track Spacer
ACTA-RELIEF™ SEAT DEPTH USED for all spacer congurations-
