Industrial Stations EE 8000 Connection and Settings
3.1/0614 25

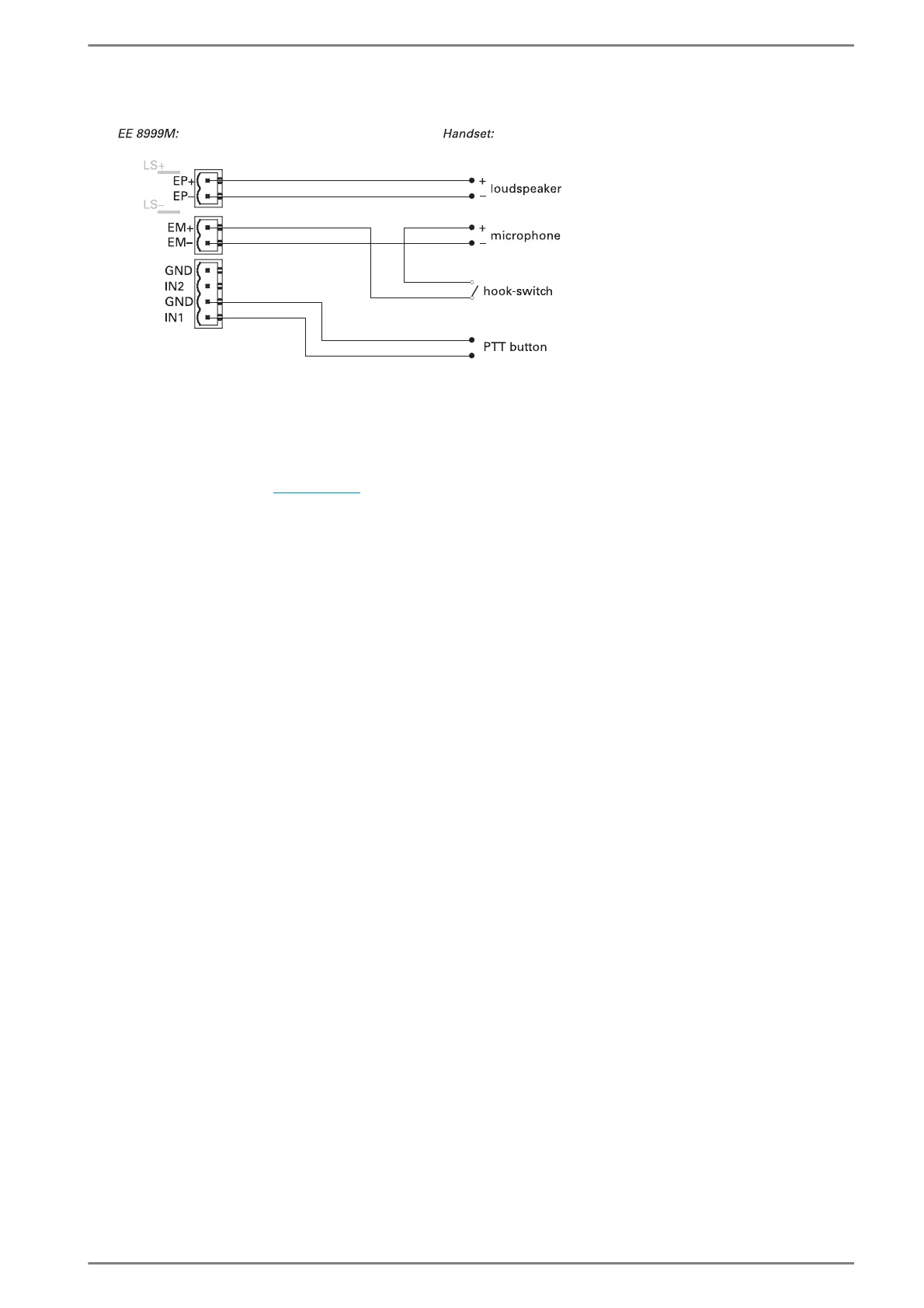

Connection of Handset
At a handset with hook-switch the microphone is only active, while the handset is lifted. This also
means, that the microphone of the industrial station is deactivated, while the handset is lifted.
But the loudspeaker of the handset is always active. On the other side, the loudspeaker of the industrial
station is only deactivated, while the handset is lifted.
Note: When the microphone sensitivity must be changed, the settings have to be carried out via
programming in CCT, see page 32
.
For activation of the PTT button dialling simulation must be defined for the internal input IN1 of the
EE 8000:
Level “Short“: button T - press only, level “Break“: button T - release only
