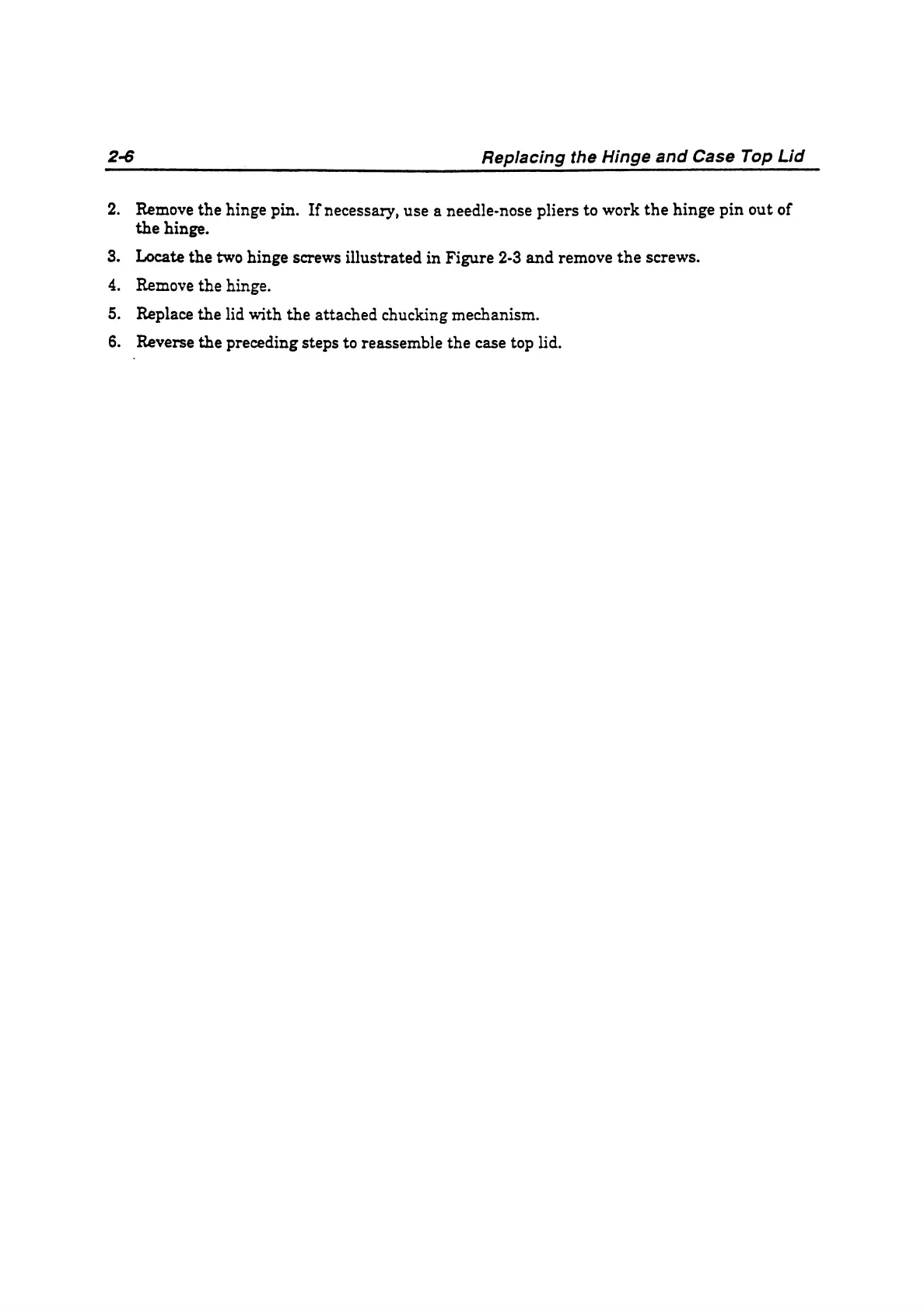

2-6
Replacing the Hinge and Case Top Lid
2. Remove the hinge pin. If necessaiy, use a needle-nose pliers to work the hinge pin out of
the hinge.
3. Locate the two hinge screws illustrated in Figure 2-3 and remove the screws.
4. Remove the hinge.
5. Replace the lid with the attached chucking mechanism.
6. Reverse the preceding Steps to reassemble the case top lid.
