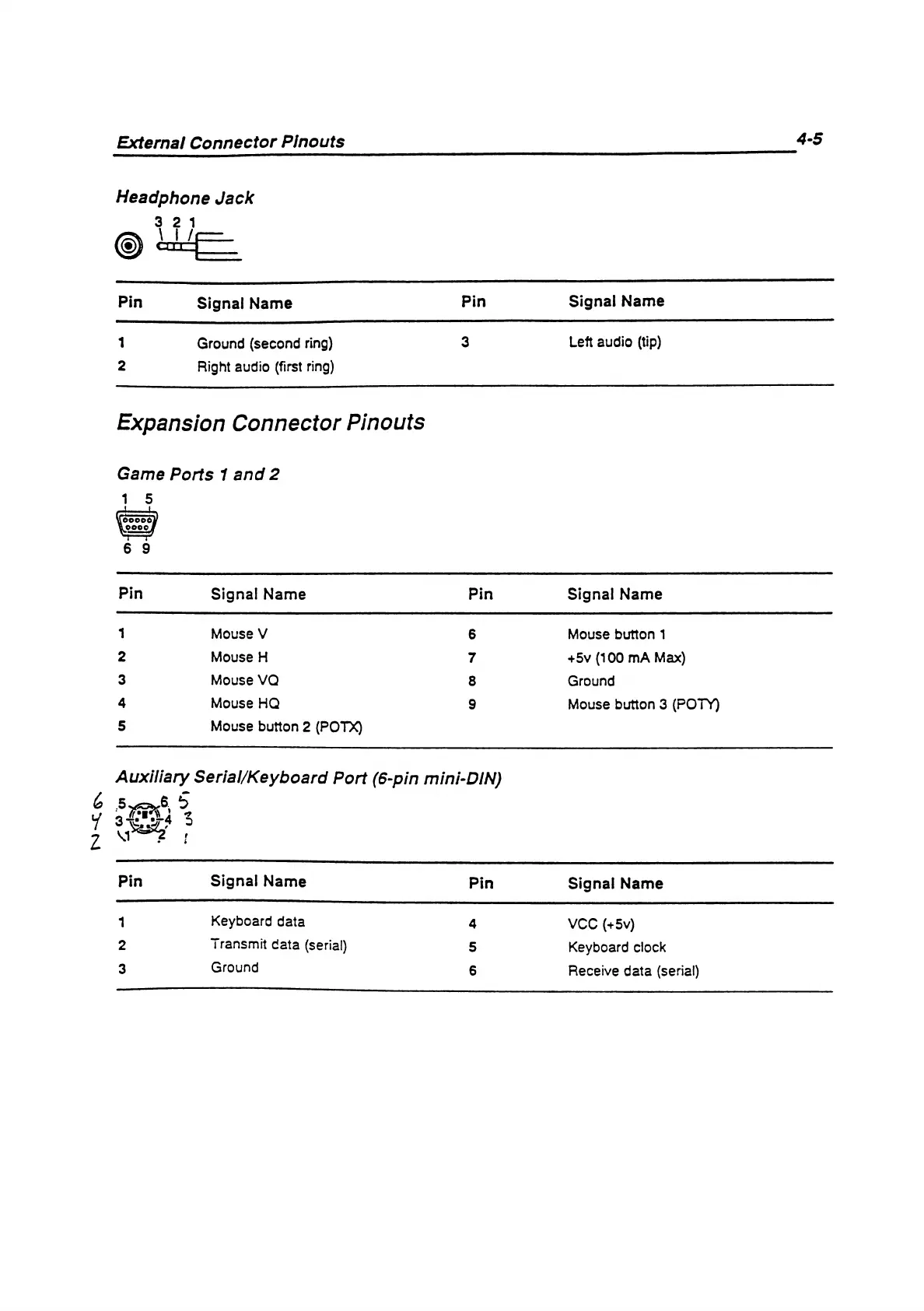

ExternaI Connector PInouts
4-5
Headphone Jack
3 2 1
Pin
Signal Name
Pin
Signal Name
1
Ground (second ring)
3
Left audio (tip)
2
Right audio (first ring)
Expansion Connector Pinouts
Game Ports 1 and 2
1 5
\loooooir
VoocoJ
6 9
Pin
Signal Name
Pin Signal Name
1
Mouse V
6 Mouse button 1
2
Mouse H
7 +5v (100 mA Max)
3
Mouse VQ
8
Ground
4
Mouse HQ
9 Mouse button 3 (POTY)
5
Mouse button 2 (POTX)
Auxiliary Serial/Keyboard Port (6-pin mini-DIN)
•9
VW
D
t
i
Pin
Signal Name
Pin
Signal Name
1
Keyboard data
4
VCC (+5v)
2
Transmit data (serial)
5
Keyboard clock
3
Ground
6
Receive data (serial)
