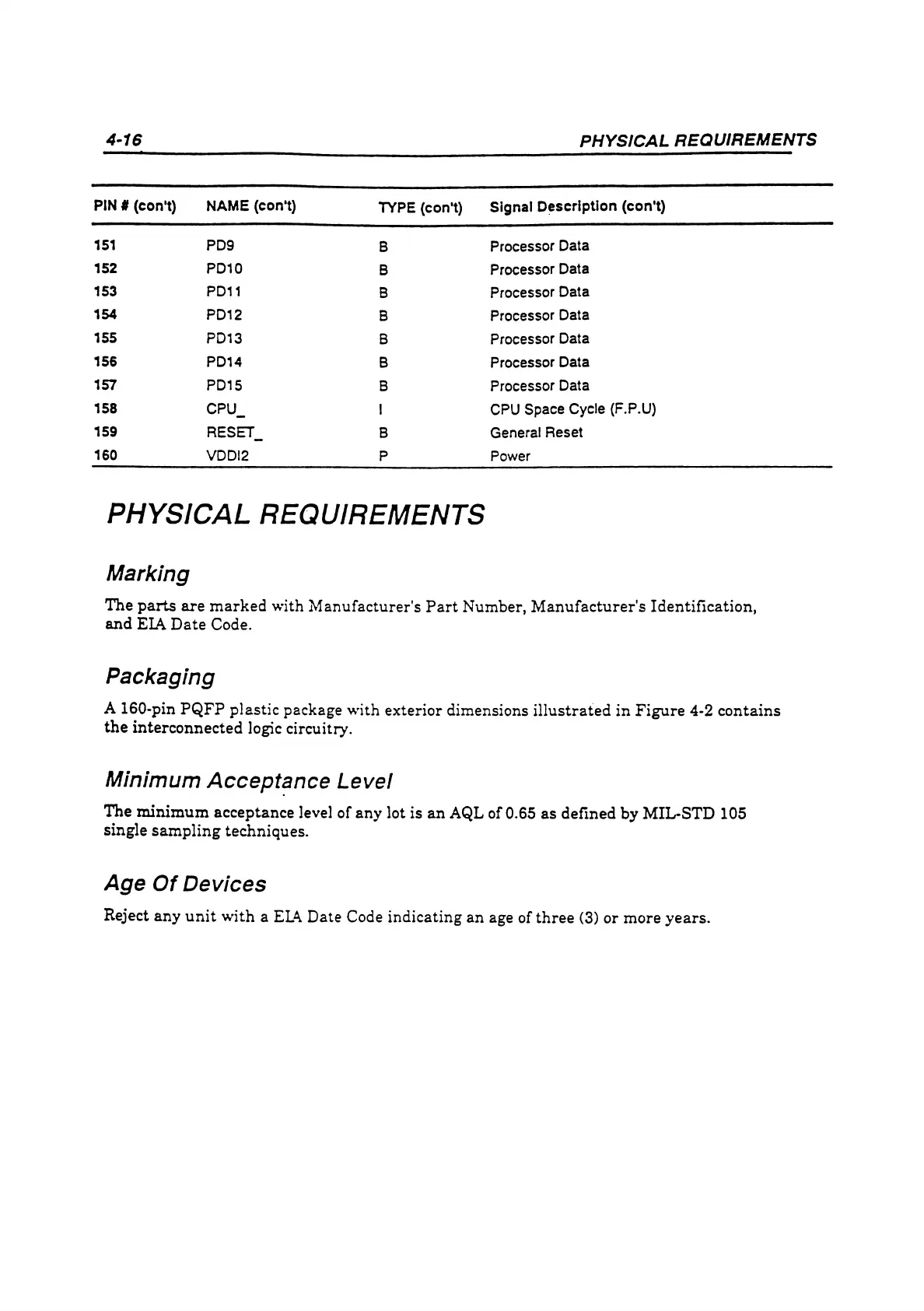

Commodore Amiga CD32 - Physical Requirements; Marking; Packaging; Minimum Acceptance Level

4-16
PHYSICAL REQUIREMENTS
PIN # (con't)
NAME (con't)
TYPE (con't)
Signal Descrlptlon (con't)
151
PD9
B
Processor Data
152
PD10
B
Processor Data
153
PD11
B
Processor Data
154
PD12
B
Processor Data
155
PD13
B
Processor Data
156
PD14
B
Processor Data
157
PD15
B
Processor Data
158
CPU_
I
CPU Space Cycle (F.P.U)
159
RESET_
B
General Reset
160
VDDI2
P
Power
PHYSICAL REQUIREMENTS
Marking
The parts are marked with Manufacturer's Part Number, Manufacturer's Identification,
and EIA Date Code.
Packaging
A 160-pin PQFP plastic package with exterior dimensions illustrated in Figure 4-2 contains
the interconnected logic circuitry.
Minimum Acceptance Level
The minimum acceptance level of any lot is an AQL of 0.65 as defined by MIL-STD 105
single sampling techniques.
Age Of Devices
Reject any unit with a EIA Date Code indicating an age of three (3) or more years.
