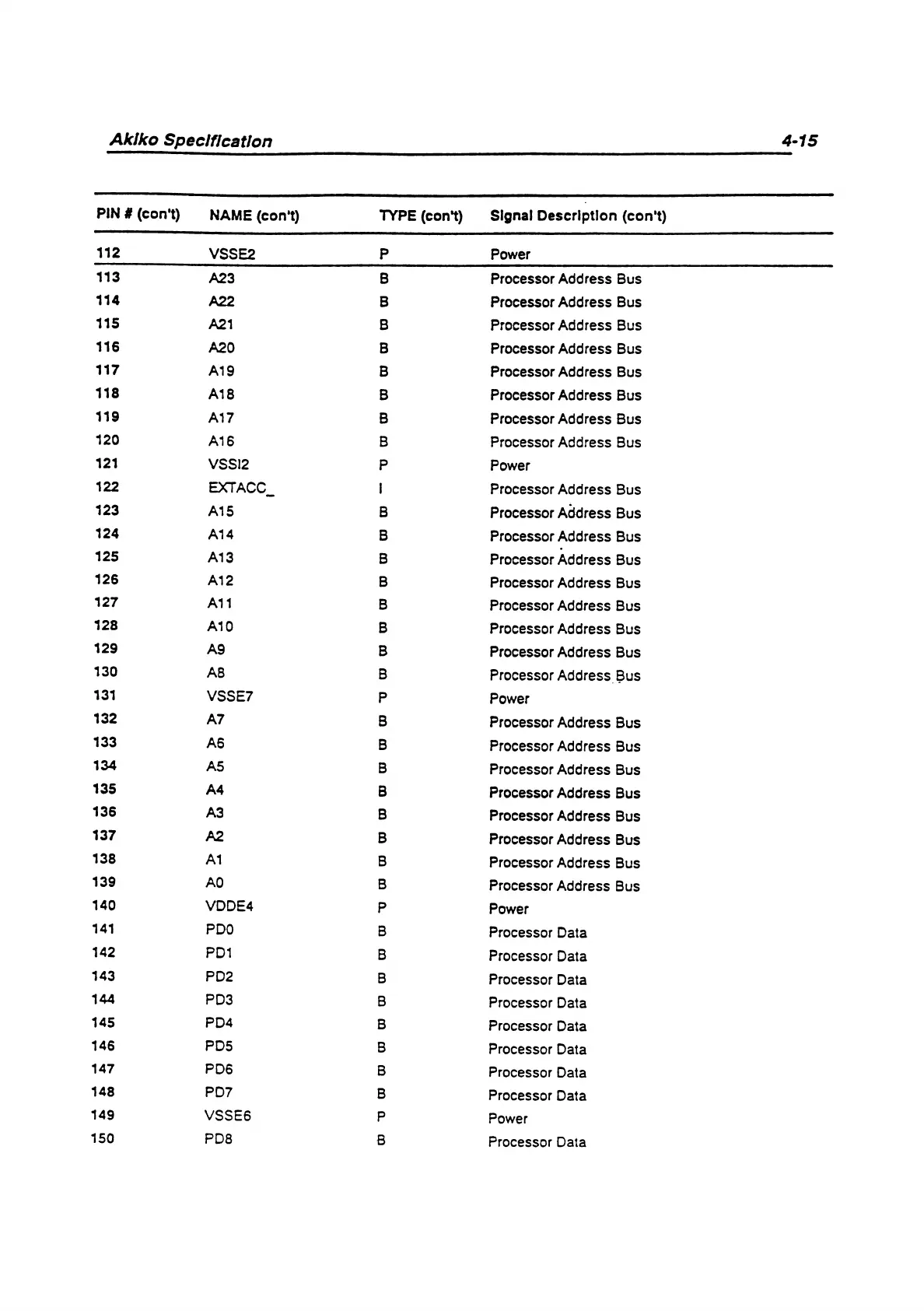

Aklko Speclflcatlon
4-15
PIN # (con't)
NAME (con't) TYPE (cont)
Signal Descrlptlon (con't)
112
VSSE2
P
Power
113
A23
B
Processor Address Bus
114
A22
B Processor Address Bus
115
A21
B Processor Address Bus
116
A20 B
Processor Address Bus
117
A19
B
Processor Address Bus
118
A18
B Processor Address Bus
119
A17
B
Processor Address Bus
120
A16
B
Processor Address Bus
121
VSSI2
P
Power
122
EXTACC_
I
Processor Address Bus
123
A15
B
Processor Address Bus
124
A14
B
Processor Address Bus
125
A13
B
Processor Address Bus
126
A12
B
Processor Address Bus
127
A11
B
Processor Address Bus
128
A10
B
Processor Address Bus
129
A9
B
Processor Address Bus
130
A8
B
Processor Address Bus
131
VSSE7
P
Power
132
A7
B
Processor Address Bus
133
A6
B
Processor Address Bus
134
A5
B
Processor Address Bus
135
A4
B
Processor Address Bus
136
A3
B
Processor Address Bus
137
A2
B
Processor Address Bus
138
A1
B
Processor Address Bus
139
A0
B
Processor Address Bus
140
VDDE4
P
Power
141
PDO
B
Processor Data
142
PD1
B
Processor Data
143
PD2
B
Processor Data
144
PD3
B
Processor Data
145 PD4
B
Processor Data
146
PD5
B
Processor Data
147
PD6
B
Processor Data
148
PD7
B
Processor Data
149
VSSE6
P
Power
150
PD8
B
Processor Data
