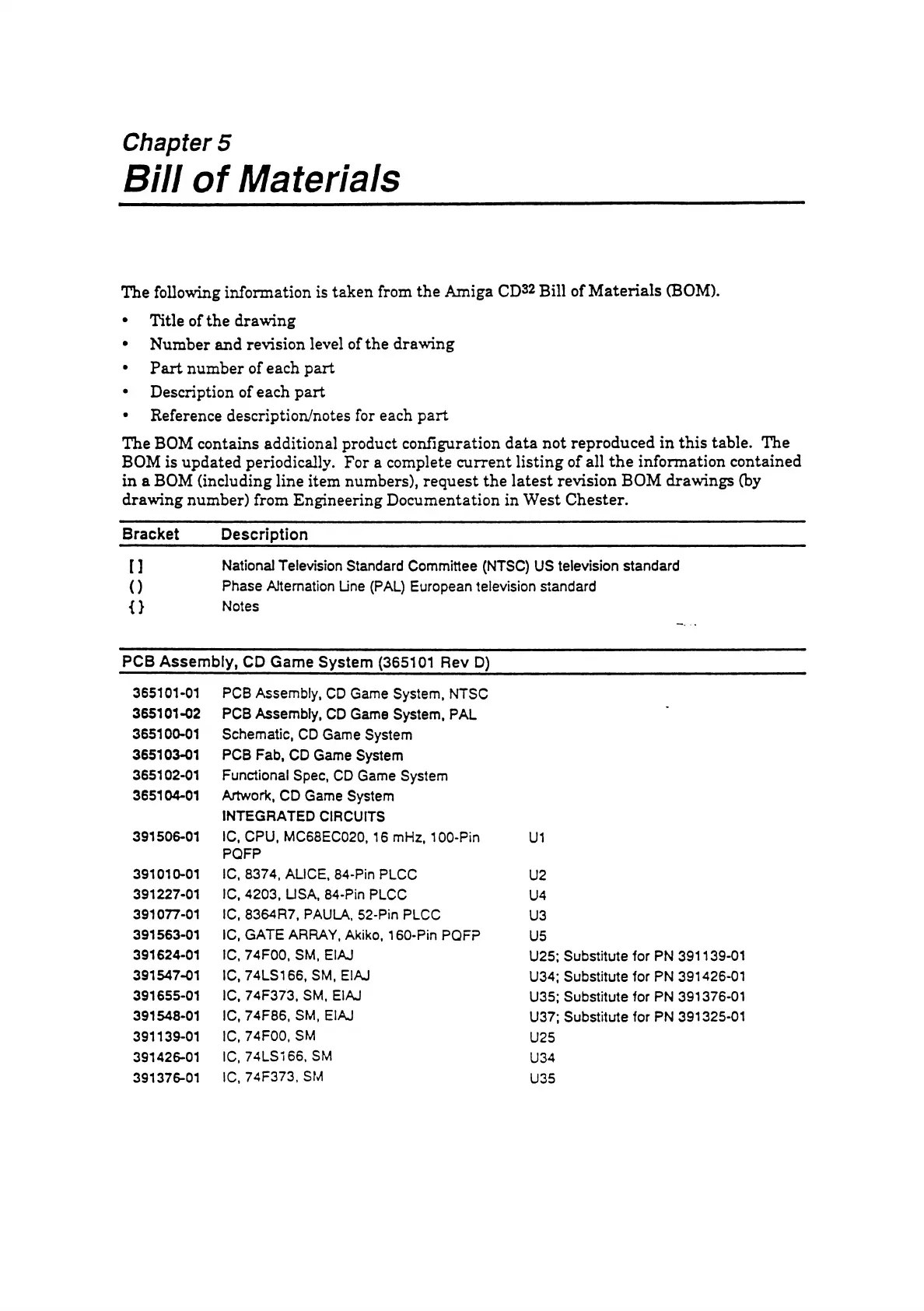

Chapter 5
Bill of Materials
The following Information is taken from the Amiga CD32 Bill of Materials (BOM).
• Title of the drawing
• Number and revision level of the drawing
• Part number of each pari
• Description of each pari
• Reference description/notes for each pari
The BOM contains additional product configuration data not reproduced in this table. The
BOM is updated periodically. For a complete current listing of all the information contained
in a BOM (induding line item numbers), request the latest revision BOM drawings (by
drawing number) from Engineering Documentation in West Chester.
Bracket D escription
[ ] National Television Standard Committee (NTSC) US television Standard
() Phase AJtemation Line (PAL) European television Standard
{ } Notes
PCB Assembly, CD Game System (365101 Rev D)
365101-01
PCB Assembly, CD Game System, NTSC
365101-02
PCB Assembly, CD Game System, PAL
365100-01
Schematic, CD Game System
365103-01
PCB Fab, CD Game System
365102-01
Functional Spec, CD Game System
365104-01 Artwork, CD Game System
INTEGRATED CIRCUITS
391506-01
IC. CPU. MC68EC020,16 mHz, 100-Pin
PQFP
U1
391010-01
IC, 8374, ALICE, 84-Pin PLCC
U2
391227-01
IC. 4203, USA, 84-Pin PLCC
U4
391077-01
IC, 8364R7, PAULA, 52-Pin PLCC
U3
391563-01
IC, GATE ARRAY, Akiko, 160-Pin PQFP
U5
391624-01 IC, 74F00, SM, EIAJ
U25; Substitute for PN 391139-01
391547-01 IC, 74LS166, SM, EIAJ
U34; Substitute for PN 391426-01
391655-01 IC, 74F373, SM, EIAJ
U35; Substitute for PN 391376-01
391548-01
IC, 74F86, SM, EIAJ
U37; Substitute for PN 391325-01
391139-01
IC, 74F00, SM
U25
391426-01
IC, 74LS166, SM
U34
391376-01
IC, 74F373, SM
U35
