Commodore Amiga CD32 - Connectors, Passive Components, and Misc

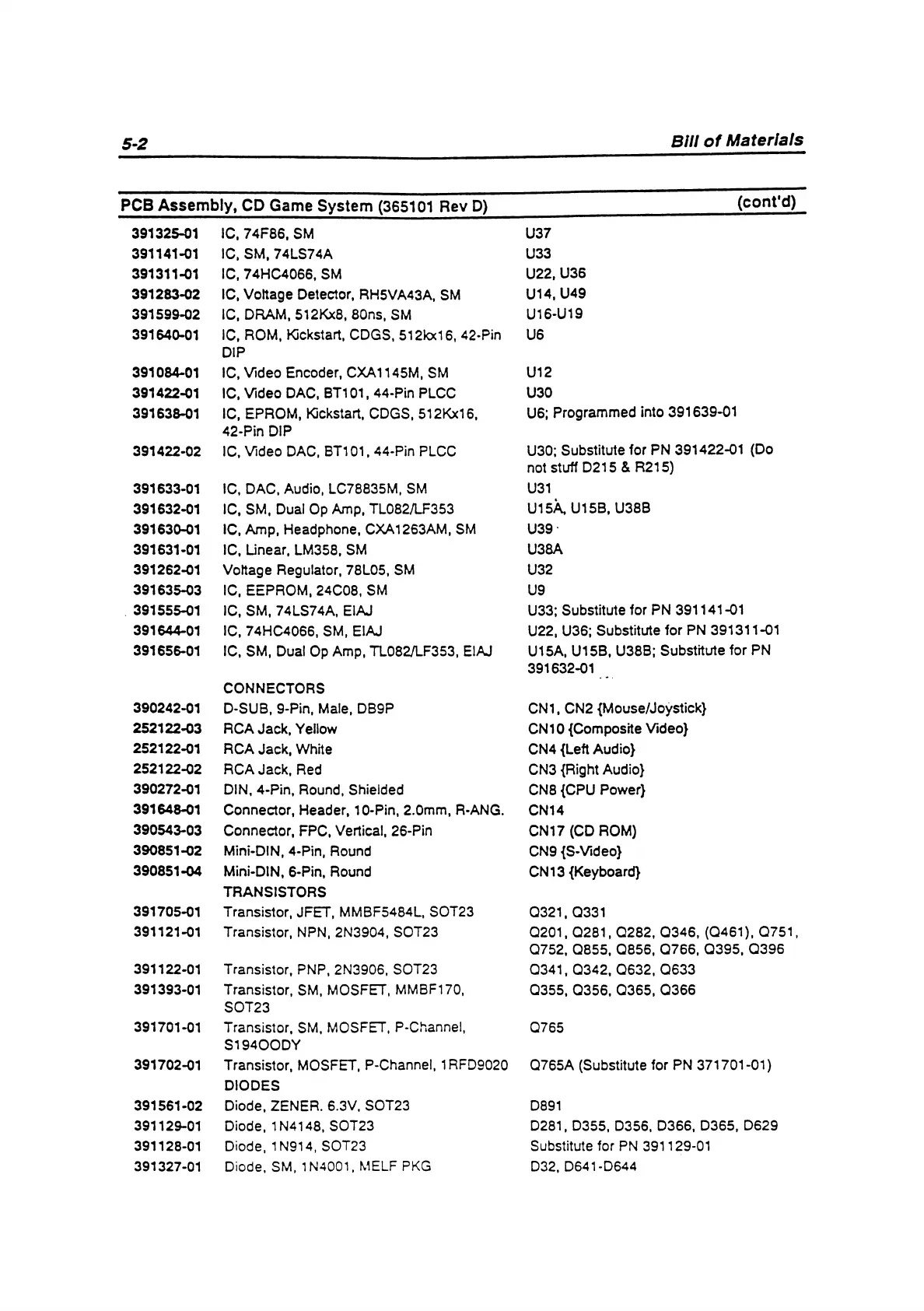

5-2
Bill of Materials
PCB Assembly, CD Game System (365101 Rev D)
(cont'd)
391325-01
IC. 74F86, SM U37
391141-01
IC. SM. 74LS74A
U33
391311-01
IC. 74HC4066, SM
U22, U36
391283-02
IC. Voltage Detector, RH5VA43A, SM
U14, U49
391599-02
IC. DRAM. 512Kx8, 80ns, SM
U16-U19
391640-01
IC. ROM. Kickstart, CDGS, 512kx16, 42-Pin
DIP
U6
391084-01
IC, Video Encoder, CXA1145M. SM U12
391422-01
IC. Video DAC, BT101, 44-Pin PLCC U30
391638-01
IC. EPROM, Kickstart, CDGS. 512Kx16,
42-Pin DIP
U6; Programmed into 391639-01
391422-02
IC. Video DAC. BT10 1 .44-Pin PLCC
U30; Substitute for PN 391422-01 (Do
not stuft D215&R215)
391633-01
IC, DAC, Audio, LC78835M, SM
U31
391632-01
IC, SM, Dual Op Amp, TL082/LF353
U15Ä.U15B, U38B
391630-01 IC, Amp, Headphone, CXA1263AM, SM U39
391631-01
IC, Linear, LM358. SM
U38A
391262-01
Voltage Regulator, 78L05, SM U32
391635-03
IC. EEPROM. 24C08, SM U9
391555-01
IC, SM. 74LS74A, EIAJ
U33; Substitute for PN 391141-01
391644-01
IC. 74HC4066, SM. EIAJ
U22, U36; Substitute for PN 391311-01
391656-01
IC. SM, Dual Op Amp. TL082/LF353, EIAJ
U15A, U15B, U38B; Substitute for PN
391632-01
CONNECTORS
390242-01
D-SUB, 9-Pin, Male, DB9P
CN1, CN2 {Mouse/Joystick}
252122-03
RCA Jack. Yellow
CN10 (Composite Video}
252122-01
RCA Jack, White
CN4(Left Audio}
252122-02
RCA Jack, Red
CN3 (Right Audio}
390272-01
DIN, 4-Pin, Round, Shieided
CN8 (CPU Power}
391648-01
Connector, Header, 10-Pin, 2.0mm, R-ANG.
CN14
390543-03
Connector, FPC, Vertical, 26-Pin
CN17 (CD ROM)
390851-02
Mini-DIN, 4-Pin, Round
CN9 {S-Video}
390851-04
Mini-DIN, 6-Pin, Round
TRANSISTORS
CN13 {Keyboard}
391705-01
Transistor, JFET, MMBF5484L, SOT23
Q321, Q331
391121-01
Transistor, NPN, 2N3904, SOT23
Q201, Q281, Q282, Q346, (Q461). Q751,
Q752, Q855, Q856, Q766, Q395, Q396
391122-01
Transistor, PNP, 2N3906, SOT23
Q341, Q342, 0632, Q633
391393-01
Transistor, SM, MOSFET, MMBF170,
SOT23
0355, Q356, Q365, Q366
391701-01 Transistor, SM, MOSFET, P-Channel,
S19400DY
Q765
391702-01 Transistor, MOSFET, P-Channel, 1RFD9020
DIODES
Q765A (Substitute for PN 371701-01)
391561-02
Diode, ZENER. 6.3V, SOT23 D891
391129-01
Diode, 1N4148, SOT23 D281, D355, D356, D366, D365, D629
391128-01 Diode, 1N914, SOT23 Substitute for PN 391129-01
391327-01 Diode, SM, 1N4001. MELF PKG
D32, D641-D644
