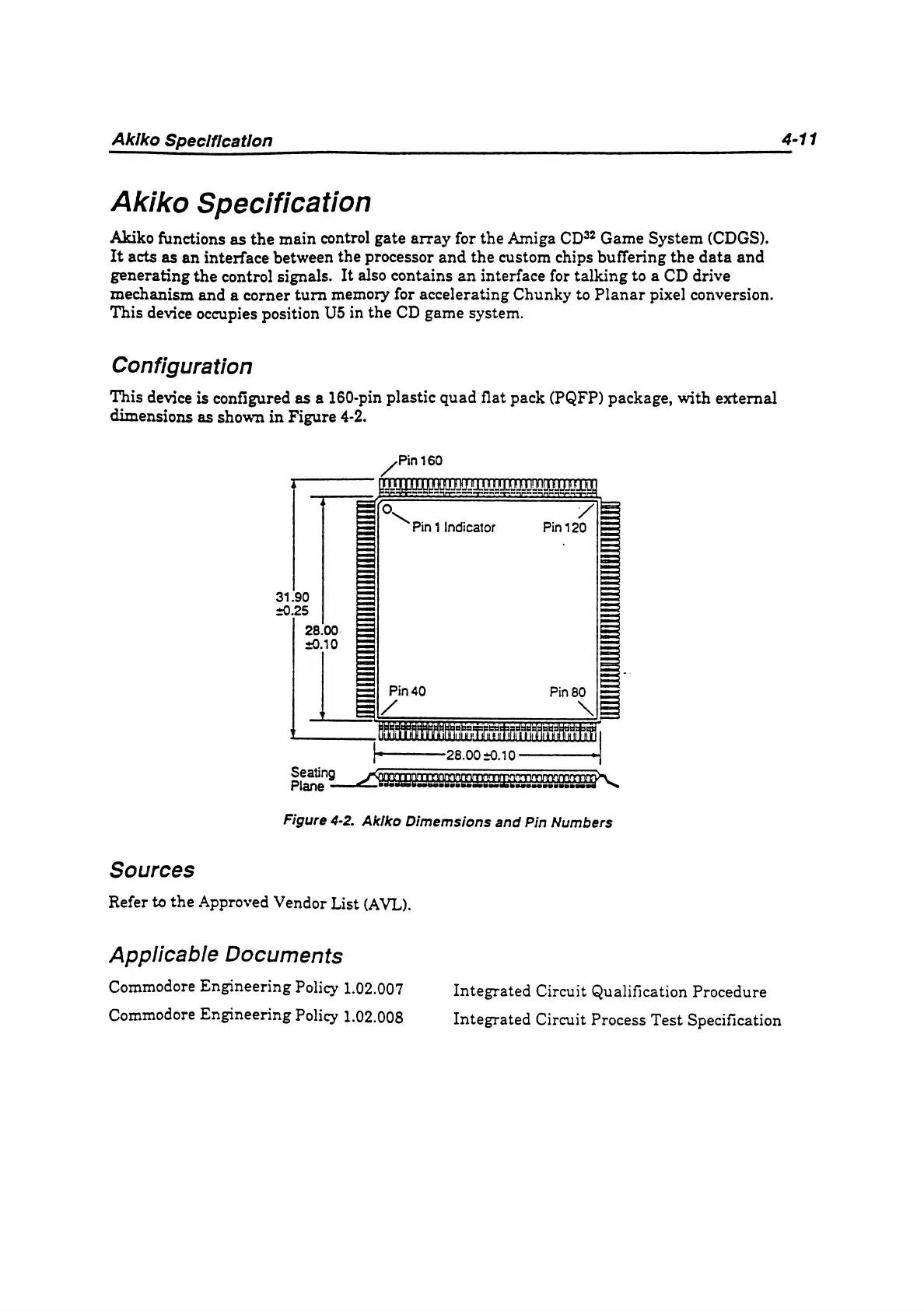

Aklko Speclflcation
4-11
Akiko Specification
Akiko functions as the main control gate array for the Amiga CD32 Game System (CDGS).
It acts as an interface between the processor and the custom chips buffering the data and
generating the control signals. It also contains an interface for talking to a CD drive
mechanism and a corner turn memory for accelerating Chunky to Planar pixel conversion.
This device occupies position U5 in the CD game system.
Configuration
This device is configured as a 160-pin plastic quad flat pack (PQFP) package, with extemal
dimensions as shown in Figure 4-2.
ooogmooo^^
31.90
*0.25
28.00
* 0.10
SSJ Pin 40 Pin 80 —2
WWWHmiwaBwniBiwii«mii
•28.00 ±0.10
Seating
Plane -
Figure 4-2. Akiko Dimemsions and Pin Numbers
Sources
Refer to the Approved Vendor List (AVL).
Applicable Documents
Commodore Engineering Policy 1.02.007
Commodore Engineering Policy 1.02.008
Integrated Circuit Qu alification Procedure
Integrated Circuit Process Test Specification
