Aklko Speclflcatlon

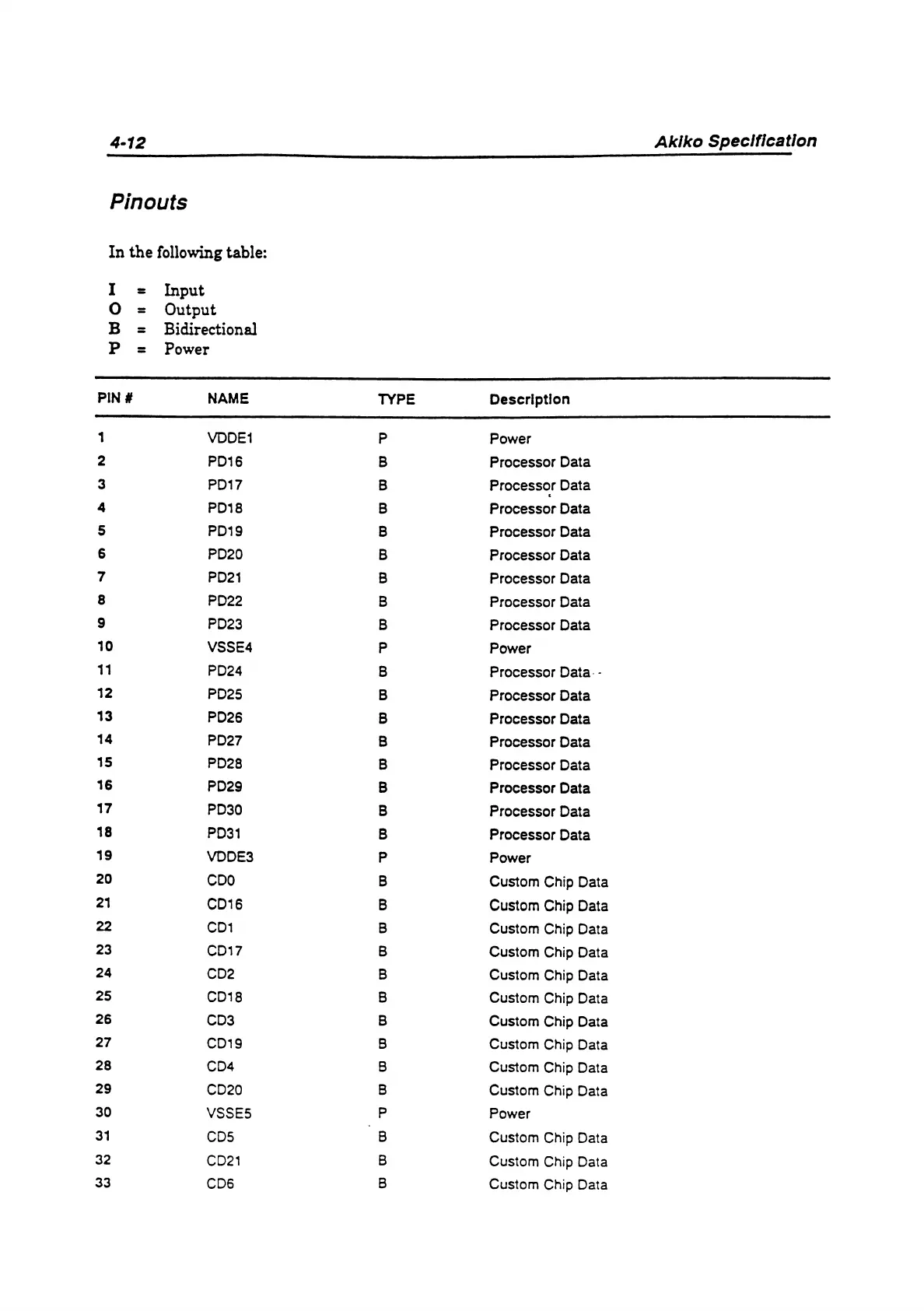

Pinouts
In the following table:
I = Input
O = Output
B = Bidirectional
P = Power
PIN#
NAME
TYPE
Descrlptlon
1
VDDE1 P Power
2
PD16 B Processor Data
3
PD17
B Processor Data
4
PD18 B Processor Data
5
PD19
B Processor Data
6
PD20 B
Processor Data
7
PD21
B Processor Data
8
PD22
B
Processor Data
9
PD23
B Processor Data
10
VSSE4
P
Power
11
PD24
B
Processor Data -
12
PD25
B
Processor Data
13
PD26
B
Processor Data
14
PD27
B
Processor Data
15
PD28
B
Processor Data
16
PD29
B
Processor Data
17
PD30
B
Processor Data
18
PD31
B
Processor Data
19
VDDE3 P
Power
20
CDO
B
Custom Chip Data
21
CD16
B
Custom Chip Data
22
CD1
B
Custom Chip Data
23
CD17
B
Custom Chip Data
24
CD2 B
Custom Chip Data
25
CD18
B
Custom Chip Data
26
CD3 B
Custom Chip Data
27
CD19 B
Custom Chip Data
28
CD4 B
Custom Chip Data
29
CD20
B
Custom Chip Data
30
VSSE5
P
Power
31
CD5
B
Custom Chip Data
32
CD21
B
Custom Chip Data
33
CD6
B
Custom Chip Data
