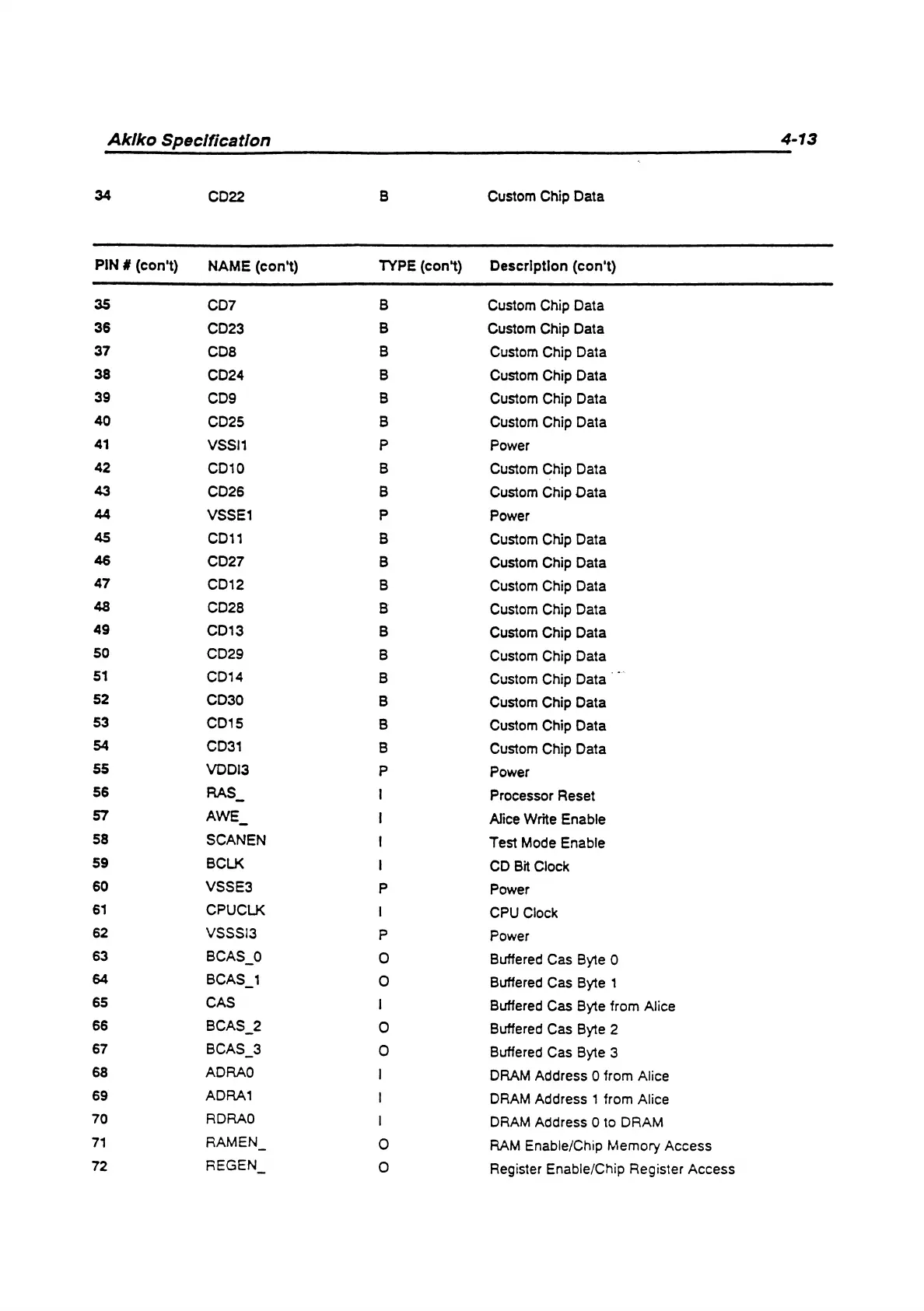

Commodore Amiga CD32 - Page 33

Aklko Speclficatlon
4-13
34 CD22
B Custom Chip Data
PIN # (con't) NAME (con't) TYPE (con't) Descrlptlon (con't)
35
CD7
B
36
CD23
B
37
CD8
B
38
CD24
B
39
CD9
B
40
CD25
B
41
VSSI1
P
42
CD10
B
43
CD26 B
44
VSSE1
P
45
CDU
B
46
CD27
B
47
CD12
B
43
CD28
B
49
CD13
B
50
CD29
B
51
CD14
B
52
CD30
B
53
CD15
B
54
CD31
B
55
VDDI3
P
56
RAS_
I
57
AWE_
I
58
SCANEN
I
59
BCLK
I
60
VSSE3
P
61
CPUCLK
I
62
VSSSI3
P
63
BCAS_0
0
64
BCAS_1
0
65
CAS
I
66
BCAS_2
0
67
BCAS_3
0
68
ADRAO
I
69
ADRA1
I
70 RDRAO
I
71
RAMEN_
0
72
REGEN_
0
Custom Chip Data
Custom Chip Data
Custom Chip Data
Custom Chip Data
Custom Chip Data
Custom Chip Data
Power
Custom Chip Data
Custom Chip Data
Power
Custom Chip Data
Custom Chip Data
Custom Chip Data
Custom Chip Data
Custom Chip Data
Custom Chip Data
Custom Chip Data
Custom Chip Data
Custom Chip Data
Custom Chip Data
Power
Processor Reset
Alice Write Enable
Test Mode Enable
CD Bit Clock
Power
CPU Clock
Power
Buffered Cas Byte 0
Buffered Cas Byte 1
Buffered Cas Byte from Alice
Buffered Cas Byte 2
Buffered Cas Byte 3
DRAM Address 0 from Alice
DRAM Address 1 from Alice
DRAM Address 0 to DRAM
RAM Enable/Chip Memory Access
Register Enable/Chip Register Access
