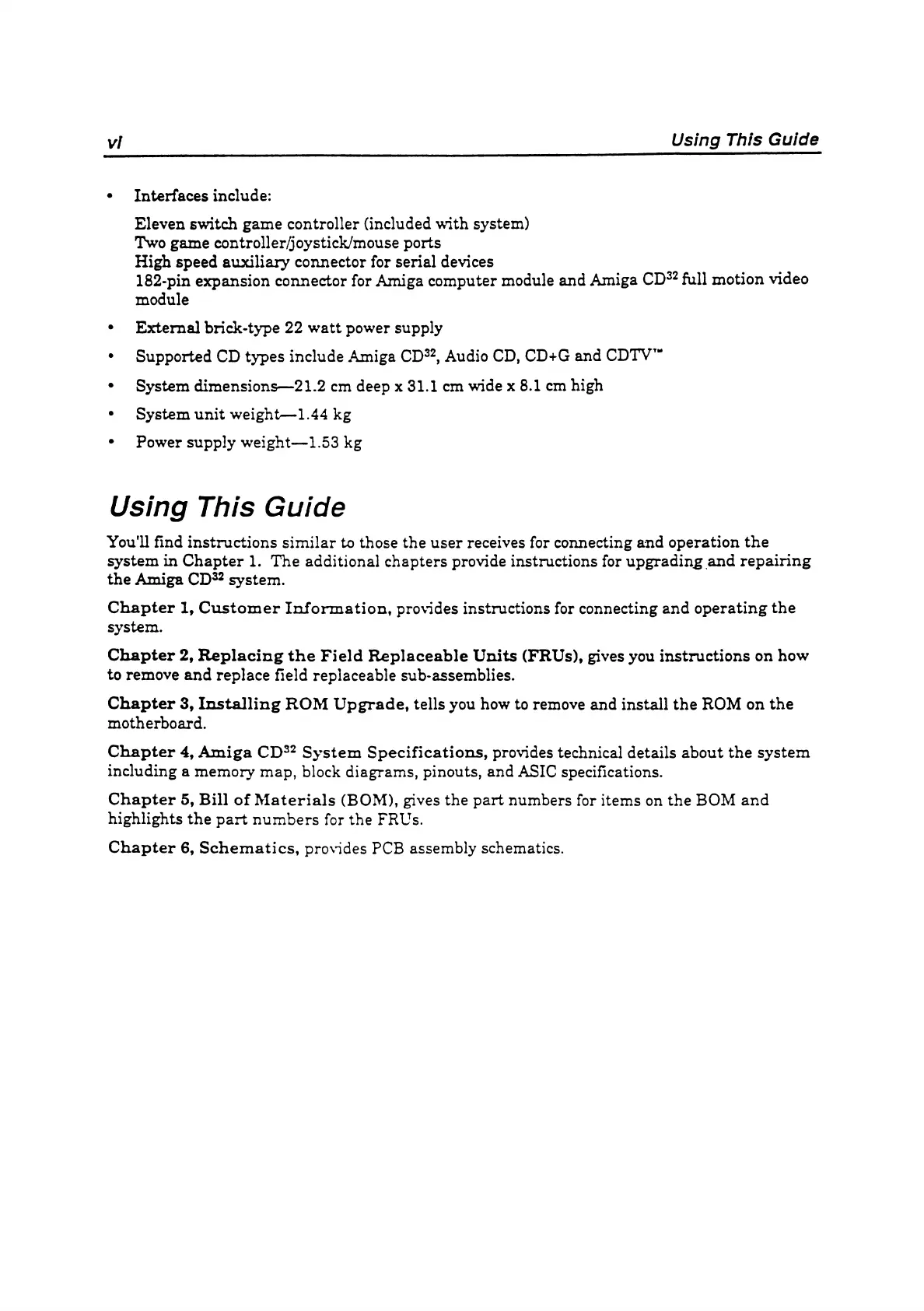

Using This Guide
• Interfaces include:
Eleven switch game Controller (included with System)
Two game controller/joystick/mouse ports
High speed auxiliary connector for serial devices
182-pin expansion connector for Amiga Computer module and Amiga CD32 full motion video
module
• Extemal brick-type 22 watt power supply
• Supported CD types include Amiga CD32, Audio CD, CD+G and CDTV’“
• System dimensions—21.2 cm deep x 31.1 cm wide x 8.1 cm high
• System unit weight—1.44 kg
• Power supply weight—1.53 kg
Using This Guide
You'll find instructions similar to those the user receives for connecting and Operation the
System in Chapter 1. The additional chapters provide instructions for upgrading and repairing
the Amiga CD32 System.
Chapter 1, C ustom er Inform ation, provides instructions for connecting and operating the
System.
Chapter 2, Replacing th e Field Replaceable Units (FRUs), gives you instructions on how
to remove and replace field replaceable sub-assemblies.
Chapter 3, Installing ROM Upgrade, teils you how to remove and install the ROM on the
motherboard.
Chapter 4, Amiga CD32 System Specifications, provides technical details about the System
including a memory map, block diagrams, pinouts, and ASIC specifications.
Chapter 5, Bill of M aterials (BOM), gives the part numbers for items on the BOM and
highlights the part numbers for the FRUs.
Chapter 6, Schem atics, provides PCB assembly schematics.
