4-4

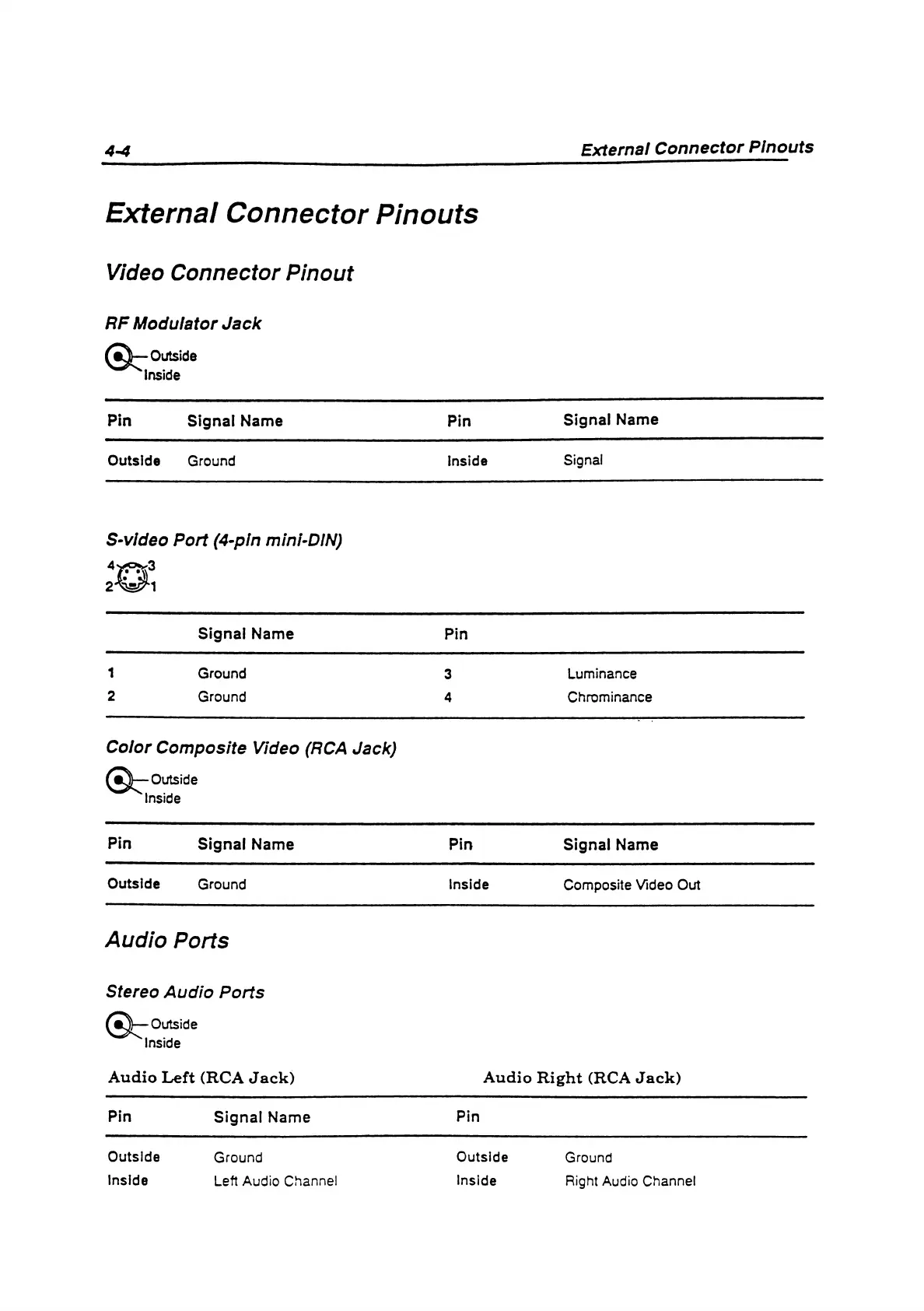

ExternaI Connector Plnouts
Externa! Connector Pinouts
Video Connector Pinout
RF Modulator Jack
(SS—Outside
V"*S n s id e
Pin
Signal Name
Pin
Signal Name
Outside Ground Inside
Signal
S-vldeo Port (4-pin mini-DIN)
Signal Nam e
Pin
1
Ground
3 Luminance
2
Ground
4 Chrominance
Color Composite Video (RCA Jack)
Outside
Inside
Pin
Signal Name
Pin
Signal Name
Outside
Ground
Inside
Composite Video Out
Audio Ports
Stereo Audio Ports
Outside
Inside
Audio Left (RCA Jack) Audio Right (RCA Jack)
Pin Signal Name Pin
Outside
Inside
Ground
Left Audio Channel
Outside
Inside
Ground
Right Audio Channel
