4-10

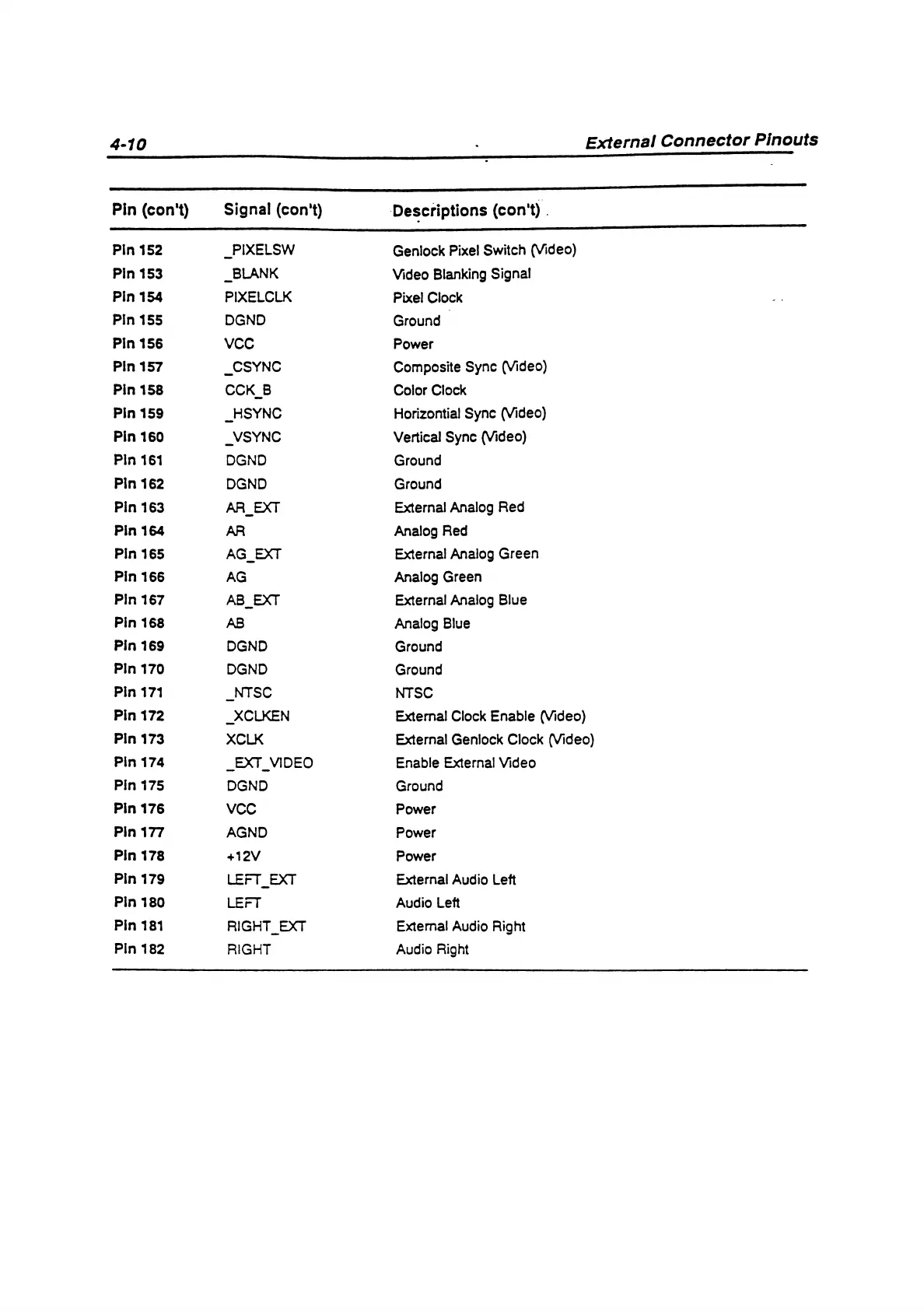

Extemal Connector Pinouts
Pin (con't)
Signal (con't)
Descriptions (con't)
Pin 152 _PIXELSW
Genlock Pixel Switch (Video)
Pin 153
_BLANK
Video Bianking Signal
Pin 154
PIXELCLK
Pixel Clock
Pin 155
DGND
Ground
Pin 156
VCC
Power
Pin 157
_CSYNC
Composite Sync (Video)
Pin 158
CCK_B
Color Clock
Pin 159
_HSYNC Horizontial Sync (Video)
Pin 160
_VSYNC
Vertical Sync (Video)
Pin 161
DGND
Ground
Pin 162
DGND
Ground
Pin 163
AR_EXT
External Analog Red
Pin 164
AR
Analog Red
Pin 165
AG_EXT
External Analog Green
Pin 166
AG
Analog Green
Pin 167
AB_EXT
External Analog Blue
Pin 168
AB
Analog Blue
Pin 169
DGND
Ground
Pin 170
DGND
Ground
Pin 171
_NTSC
NTSC
Pin 172
_XCLKEN
Extemal Clock Enable (Video)
Pin 173
XCLK
External Genlock Clock (Video)
Pin 174
_EXT_VlDEO
Enable External Video
Pin 175
DGND
Ground
Pin 176
VCC Power
Pin 177
AGND
Power
Pin 178
+12V
Power
Pin 179
LEFT_EXT
External Audio Left
Pin 180 LEFT
Audio Left
Pin 181
RIGHT_EXT Extemal Audio Right
Pin 182
RIGHT Audio Right
