Commonplace Robotics Mover 4 - Drawing of the Robot Base

16
Pin1: 12V, max 0.5A
Pin2 GND
Pin3: DOut 11 (5V TTL)
Pin4: DOut 12 (5V TTL)
Pin5: not connected
Pin 6: not connected
Pic.
5
:

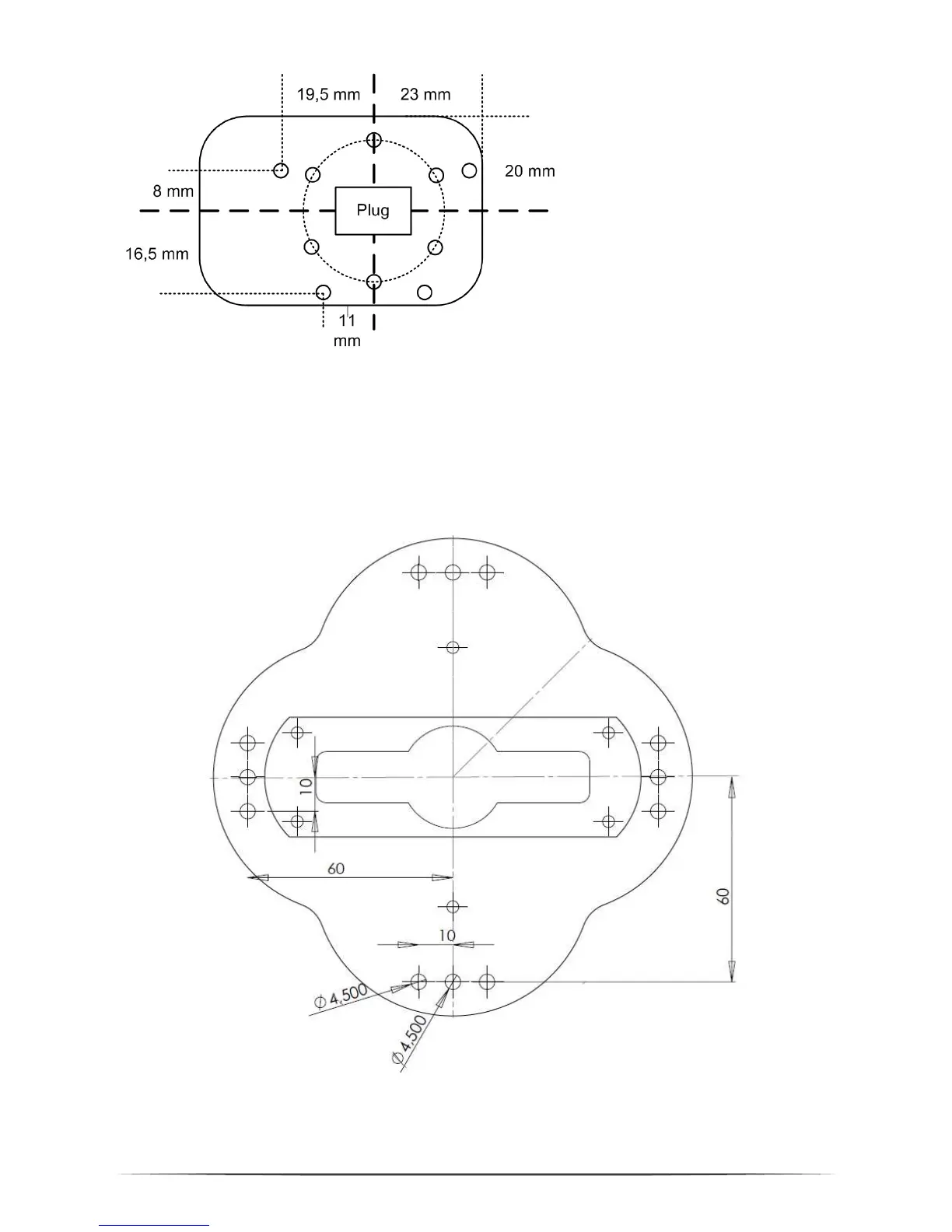

Drawing of the flange
4.4 Drawing of the Robot Base
The robot can be mounted using the M4 through holes.
Pic.
6
:
Drawing of the robot b
ase plate
