3.55 IN.
(9.0 CM)
10.07 IN.
(25.6 CM)
MOUNTING
HOLE
(4 PLACES)
12.80 IN.
(32.5 CM)
3.55 IN.
(9.0 CM)
4.22 IN.
(10.7 CM)
12.00 IN.
(30.5 CM)
14.00 IN.
(35.6 CM)
15.00 IN.
(38.1 CM)
TOP VIEW
FRONT VIEW
24563-A
ADCP-90-545 • Issue 4 • July 2016
Page 16
© 2016 CommScope. All Rights Reserved.

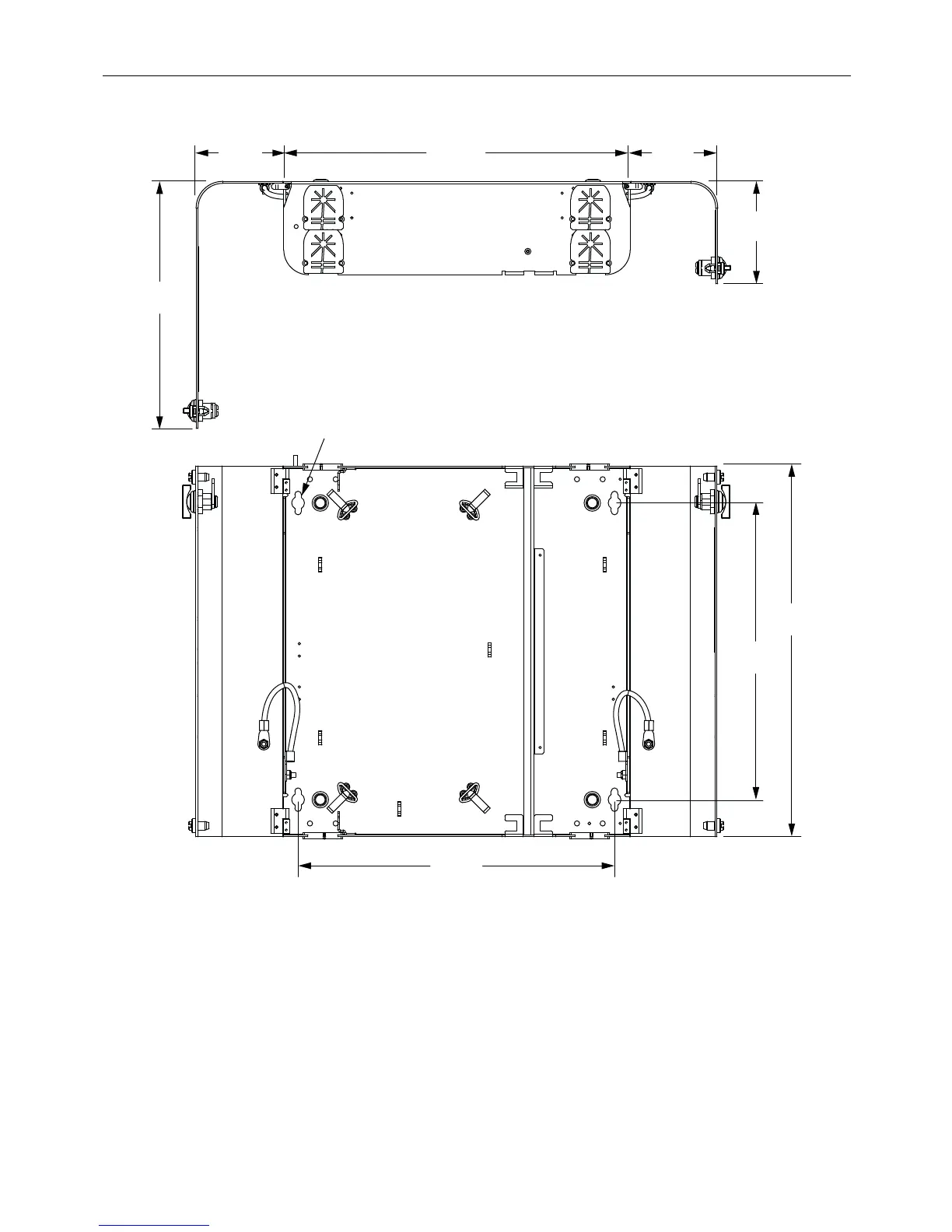

Figure 12. 24/48 Wall-Mount Box Dimensions
