4. If using a compression fitting (Figure 20):
a. Thread the cable through the cap and housing.
b. Determine which of the eight available mounting slots wi
ll be used and insert the
housing into the slot.
c. Fasten to box using lock nut provided.
d. Turn cap clockwise until tight on cable.
LOCK
NUT
COMPRESSION
FITTING BRACKET
TPE
BUSHING
GROMMIT
SLOT
CAP
GASKET
WASHER
HOUSING
24567-A

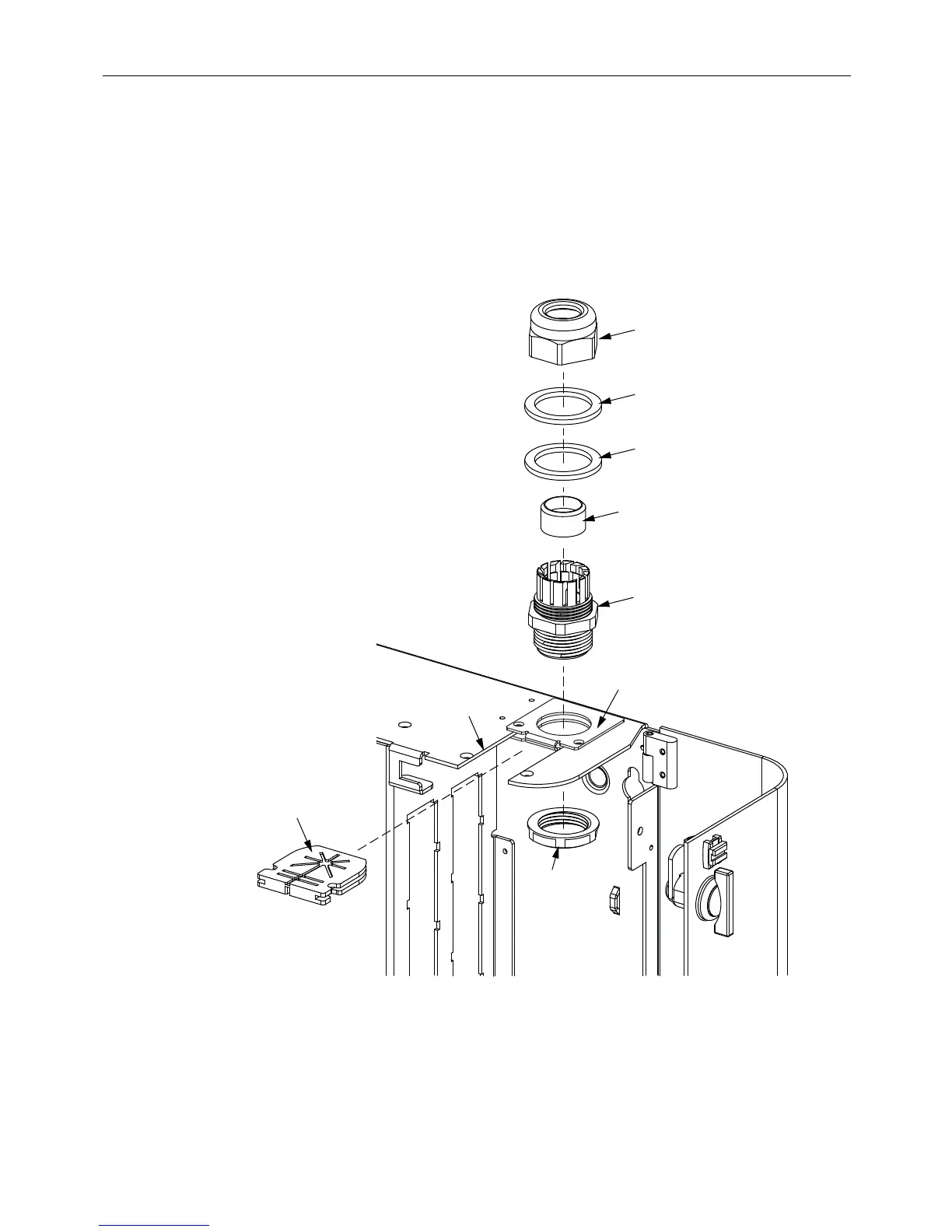

Figure 20. Compression Fitting (Select from Eight Mounting Locations)
5. If the cable being installed is an OSP cable with a metallic strength member, bond the
cable to ground following the instructions for the bonding/grounding kit.
