IFC OR OSP
CABLE
A
B
C
SHEATH
67.0 IN.
(170.2 CM)
92.0 IN.
(233.7 CM)
25.0 IN.
(63.5 CM)
SUB-UNITS
FIBERS
CONNECTORS
24576-A
BOTTOM 6 PAKS
(ROUTED FROM TOP)
C
ROUTE
BOTTOM FIBERS
AROUND LEFT
RADIUS LIMITER
ONLY
A
B
RADIUS
LIMITERS
ADCP-90-545 • Issue 4 • July 2016
Page 25
© 2016 CommScope. All Rights Reserved.

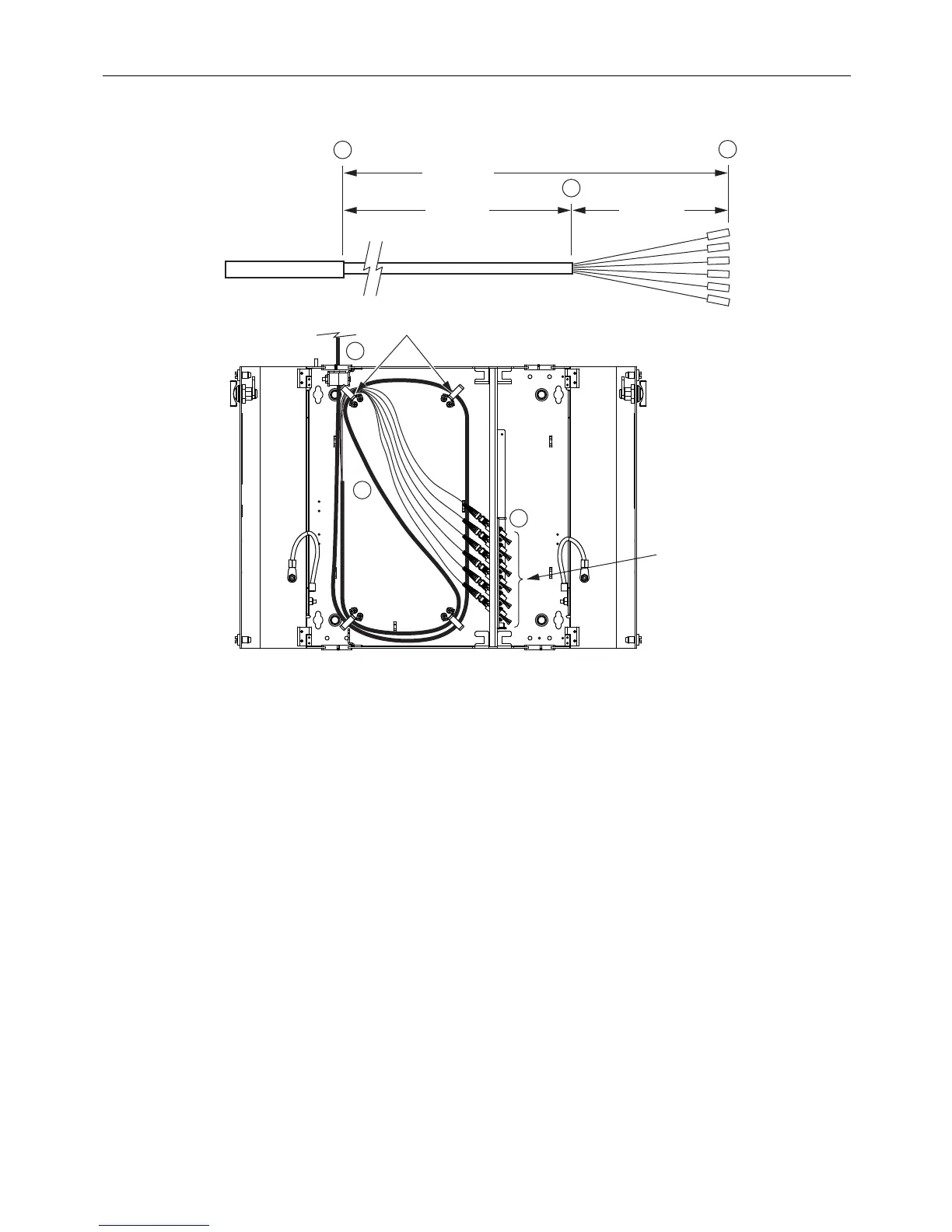

Figure 22. Field Termination Breakout and Routing, 24-Fiber Wall-Mount Box (Top Entry, Bottom 6paks)
