CommScope FL1000 - Page 28

24578-A
RADIUS
LIMITER
PLACE GROMMETS
ON EACH RADIUS
LIMITER BEHIND
AND IN FRONT OF
SPLICE TRAY
ROUTED FROM TOP
ROUTED FROM BOTTOM
IFC OR OSP
CABLE
A
B C
SHEATH
36 IN. MIN.
(91.44 CM)
104 - 110 IN.
(264 - 279 CM)
SUB-UNITS
FIBERS
CORNER OF
SPLICE TRAY
ADCP-90-545 • Issue 4 • July 2016
Page 28
© 2016 CommScope. All Rights Reserved.

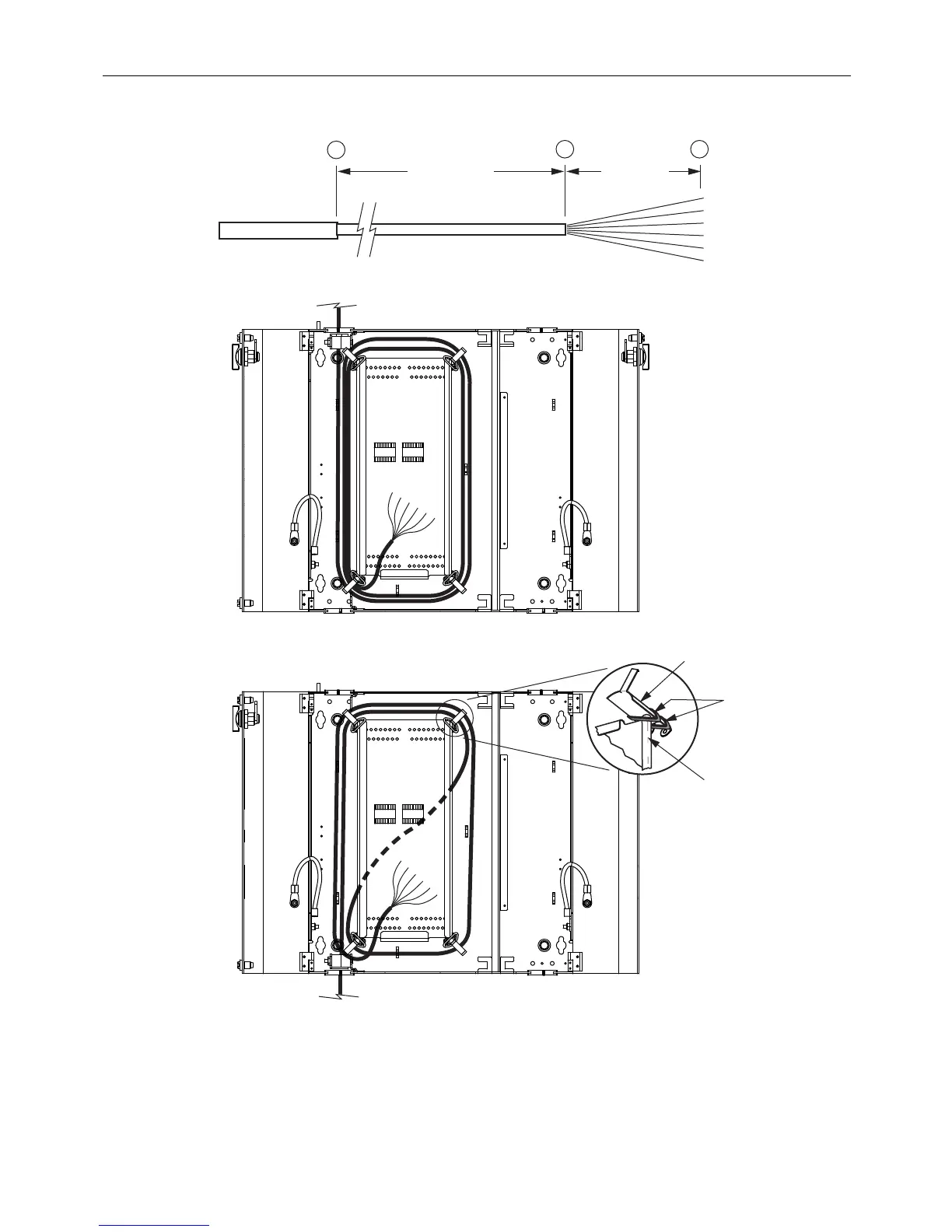

Figure 25. Splicing Breakout and Routing 24-Fiber Wall-Mount Box
Use the following procedure to prepare and install the cable.
