CommScope FL1000 - Page 27

IFC OR OSP
CABLE
A
B
C
SHEATH
81.0 IN.
(205.7 CM)
106.0 IN.
(269.2 CM)
25.0 IN.
(63.5 CM)
SUB-UNITS
FIBERS
CONNECTORS
24577-A
BOTTOM 6 PAKS
(ROUTED FROM BOTTOM)
A
B
C
ROUTE
BOTTOM FIBERS
AROUND LEFT
RADIUS LIMITER
ONLY
RADIUS
LIMITERS
ADCP-90-545 • Issue 4 • July 2016
Page 27
© 2016 CommScope. All Rights Reserved.

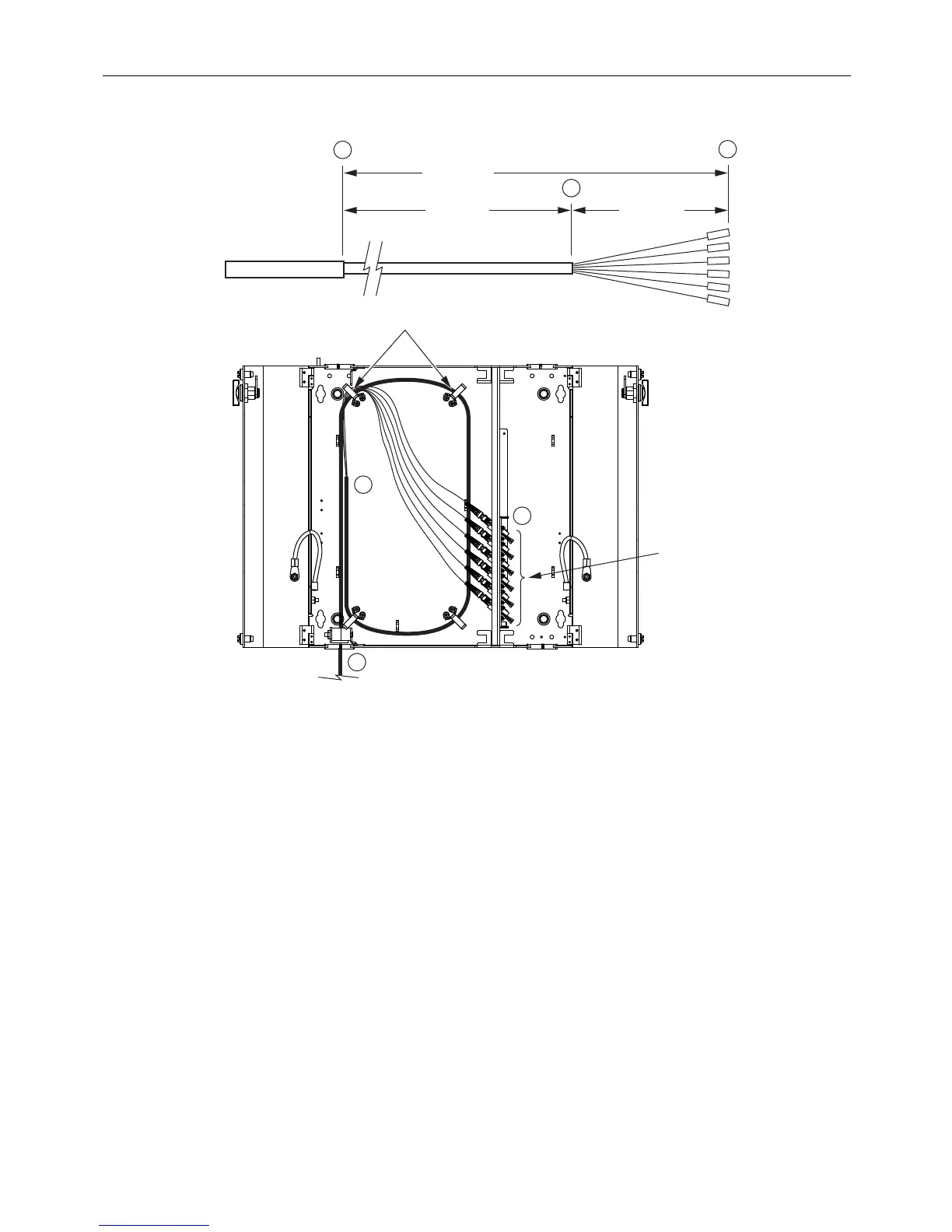

Figure 24. Field Termination Breakout and Routing, 24-Fiber Wall-Mount Box (Bottom Entry, Bottom 6paks)
