ComNav 2001 Autopilot System
P/N 29010017 V1.0 - 44-
REMOTE CONTROLS
COMNAV 211 REMOTE CONTROL
This remote control plugs into either remote
receptacle on the rear of the autopilot.
If it is plugged into the REMOTE 1 receptacle,
Dip Switch 5 on the autopilot control circuit
board must be in the ON position.
If it is plugged into the REMOTE 2 receptacle,
Dip Switch 6 must be in the ON position.
Control is taken at the remote by pressing both its
pushbuttons for one second. The decimal point on
all displays will move to the REM.1 or REM.2
position.
The STANDBY, PILOT, AND NAV modes are
the same as on the autopilot front panel, and the
TILLER position permits direct control of the
vessel's rudder angle, identical to the COMNAV
201 remote.
The DODGE/U-TURN toggle switch operates
identically to the COMNAV 101 remote.

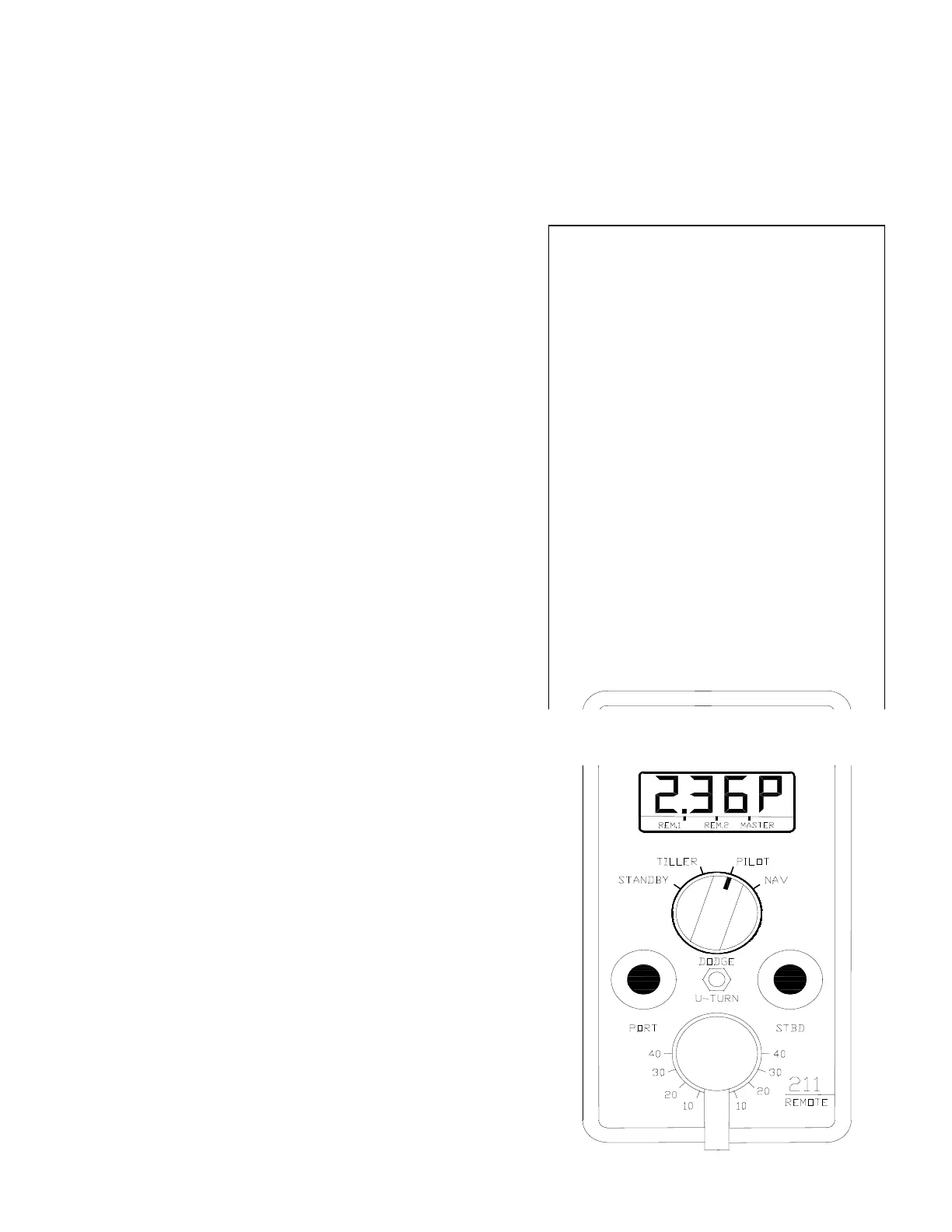

Figure 12 - ComNav 211 Remote
