2
Setting up the receiver
This chapter provides general information on environmental requirements, setup,
power supply and connection of the T300 PLUS receiver.
2.1 Environmental requirements
To keep the receiver with a reliable performance, it is better to use the receiver in
safe environmental conditions:
• Operating temperature: -40°C to +65°C
• Storage temperature: -40°C to +85°C
• Out of corrosive fluids and gases
• With a clear view of sky

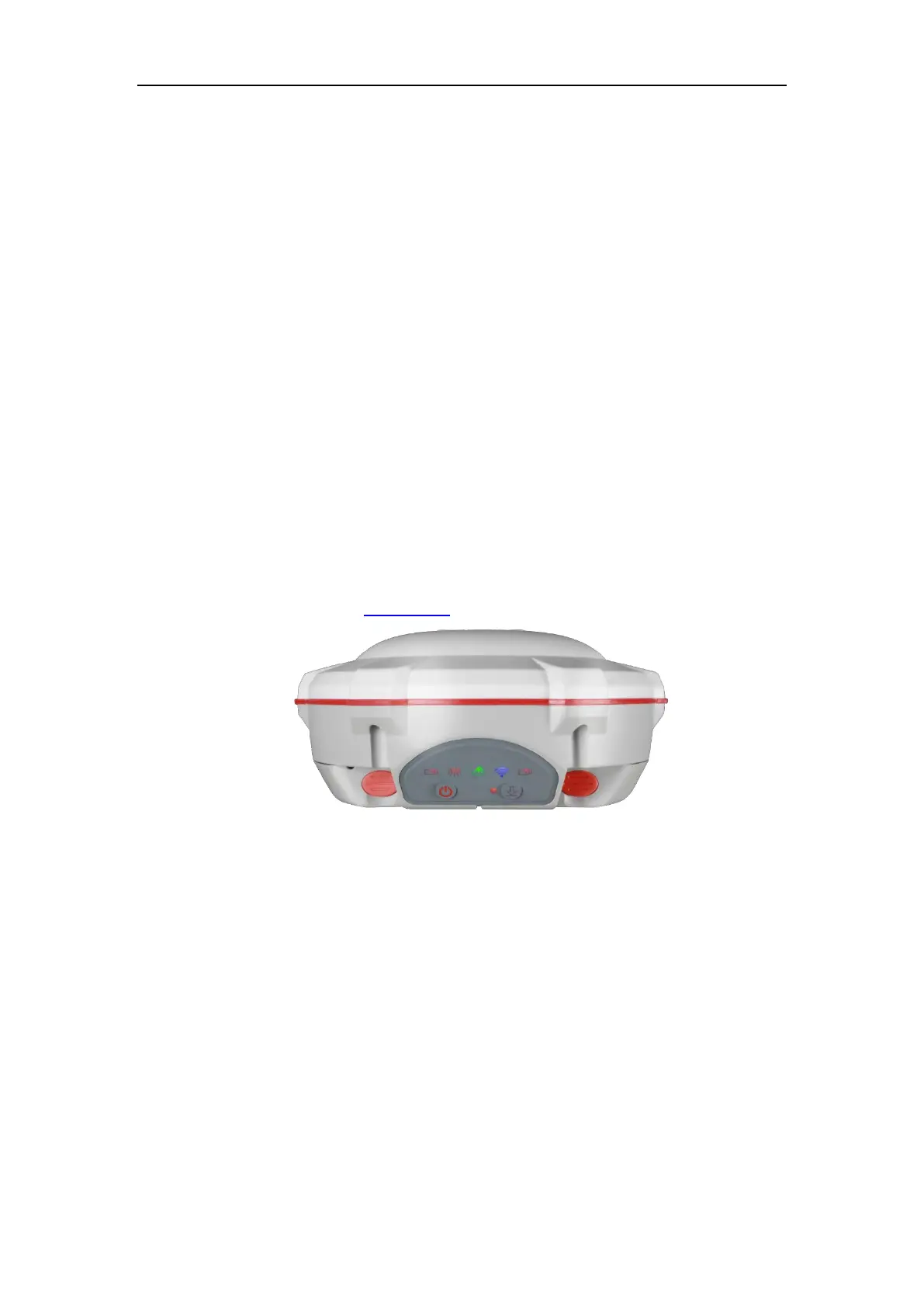

2.2 Front panel
Receiver front panel contains 5 indicator LEDs, Power button and Record button. The
indicator LEDs show the status of differential, satellite tracking, WIFI/GPRS and battery.
For detailed information, see chapter 3.3.
2.3 Lower housing
Receiver lower housing contains a serial port, UHF radio antenna connector, two
removable battery compartments (the SIM card slot is located in compartment A),
and a threaded insert.
