INS_CNGE2+2SMS_REV– 02/19/13 PAGE 16
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427

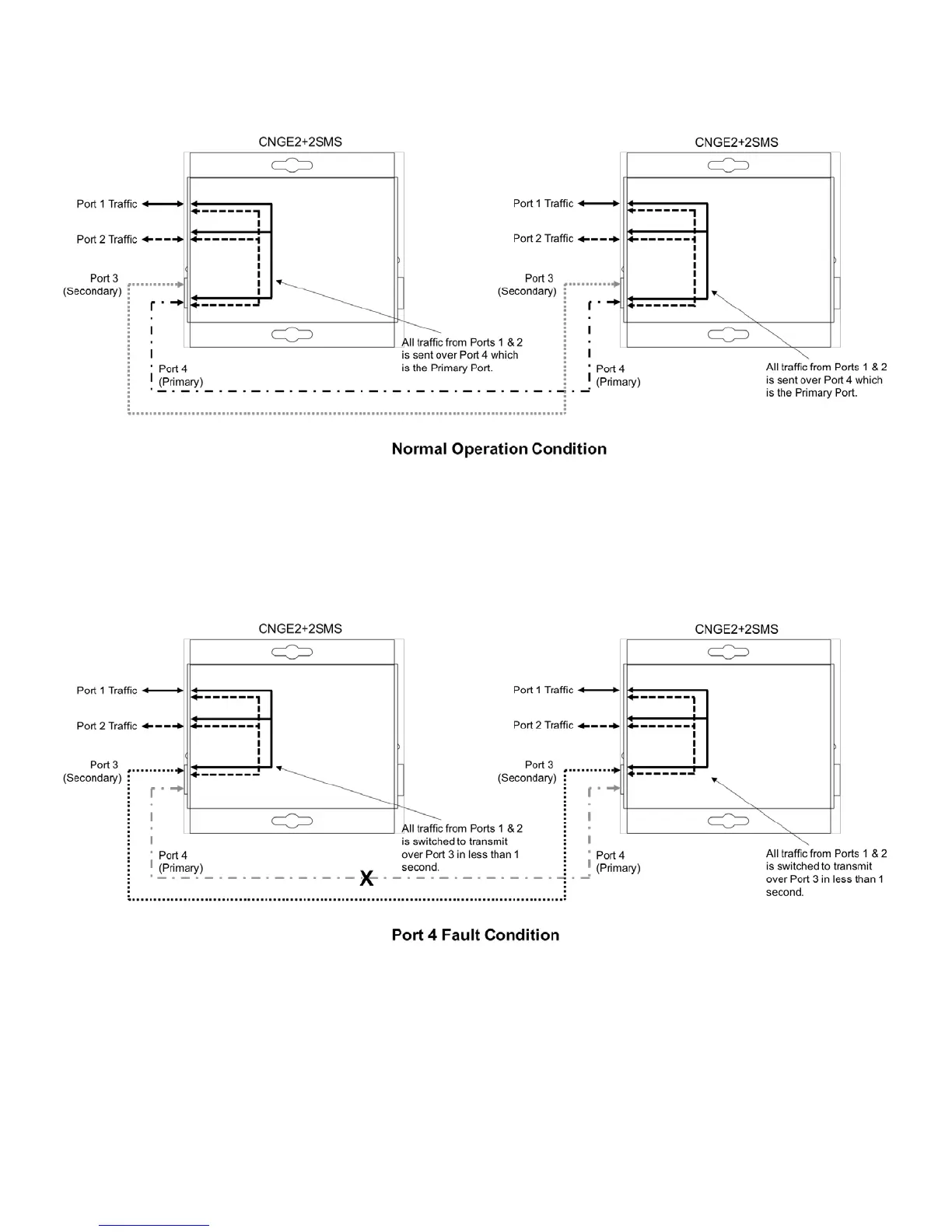

Redundant SFP (RSFP) Enabled (DIP Switch 4 in On Position)
Note: There is no port isolation between Ports 1 & 2 as shown. Ports 1 & 2 are free to send traffic
between each other as per a normal switch.
Redundant SFP (RSFP) Enabled (DIP Switch 4 in On Position)
Note: There is no port isolation between Ports 1 & 2 as shown. Ports 1 & 2 are free to send traffic
between each other as per a normal switch.
When Port 4 comes back online all traffic from Ports 1 & 2 is switched back to transmit
over Port 4 in less than 1 second.
