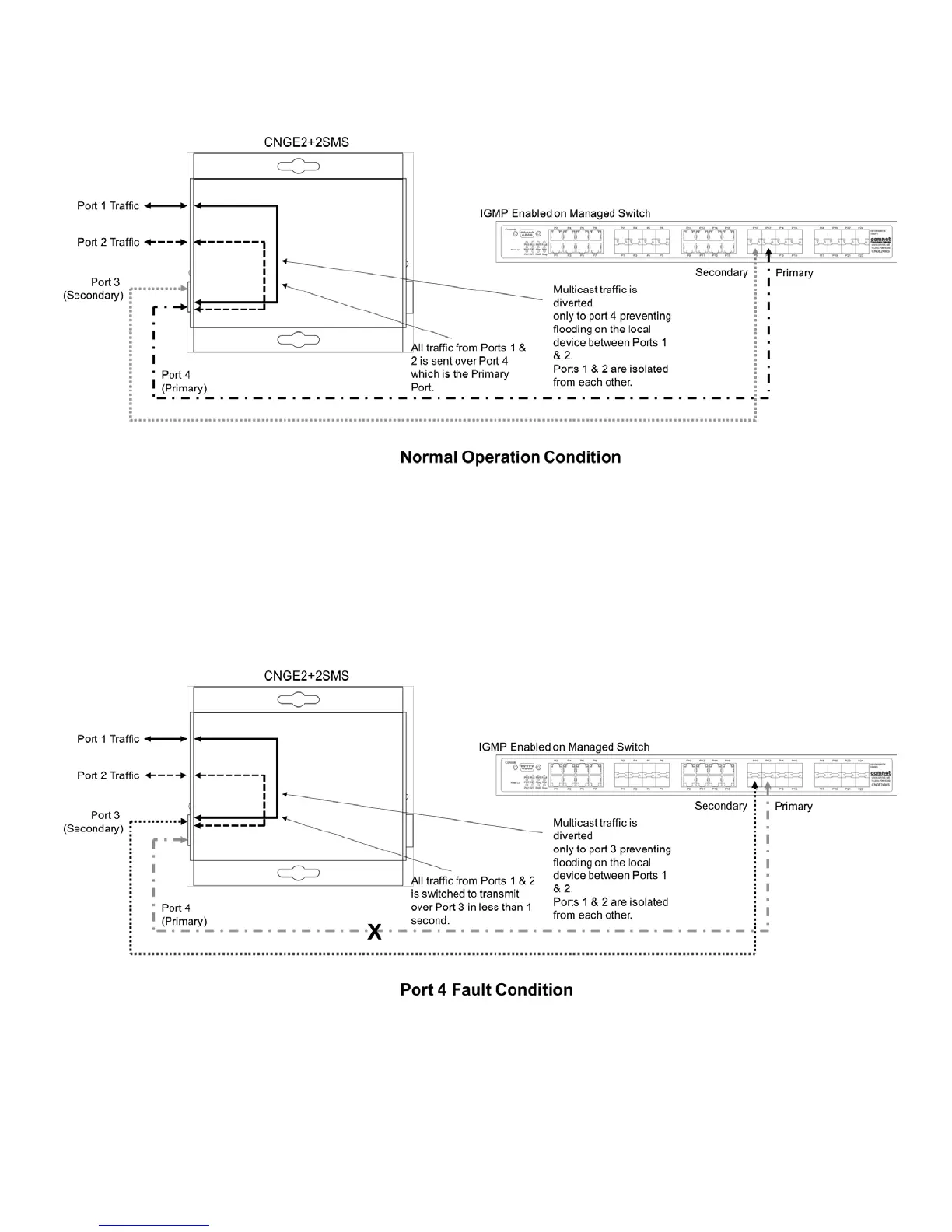

Redundant SFP (RSFP) Enabled + SMS MUX Enabled (3rd Party Switch) (DIP Switch 2 & 4 ON)
Note: Disabling MAC Address Learning on the 3rd party switch (if supported) can sometimes
allow for faster port switchover times.
Multicast traffic is diverted only to port 4 preventing flooding on the local device between
Ports 1 & 2. Ports 1 & 2 are isolated from each other.
Redundant SFP (RSFP) Enabled + SMS MUX Enabled (3rd Party Switch) (DIP Switch 2 & 4 ON)
Note: Disabling MAC Address Learning on the 3rd party switch (if supported) can sometimes
allow for faster port switchover times.
Multicast traffic is diverted only to port 4 preventing flooding on the local device between
Ports 1 & 2. Ports 1 & 2 are isolated from each other.
When Port 4 comes back online all traffic from Ports 1 & 2 is switched back to transmit
over Port 4 in less than 1 second.
