Removal and Replacement Procedures - Convertible Minitower (CMT) Chassis

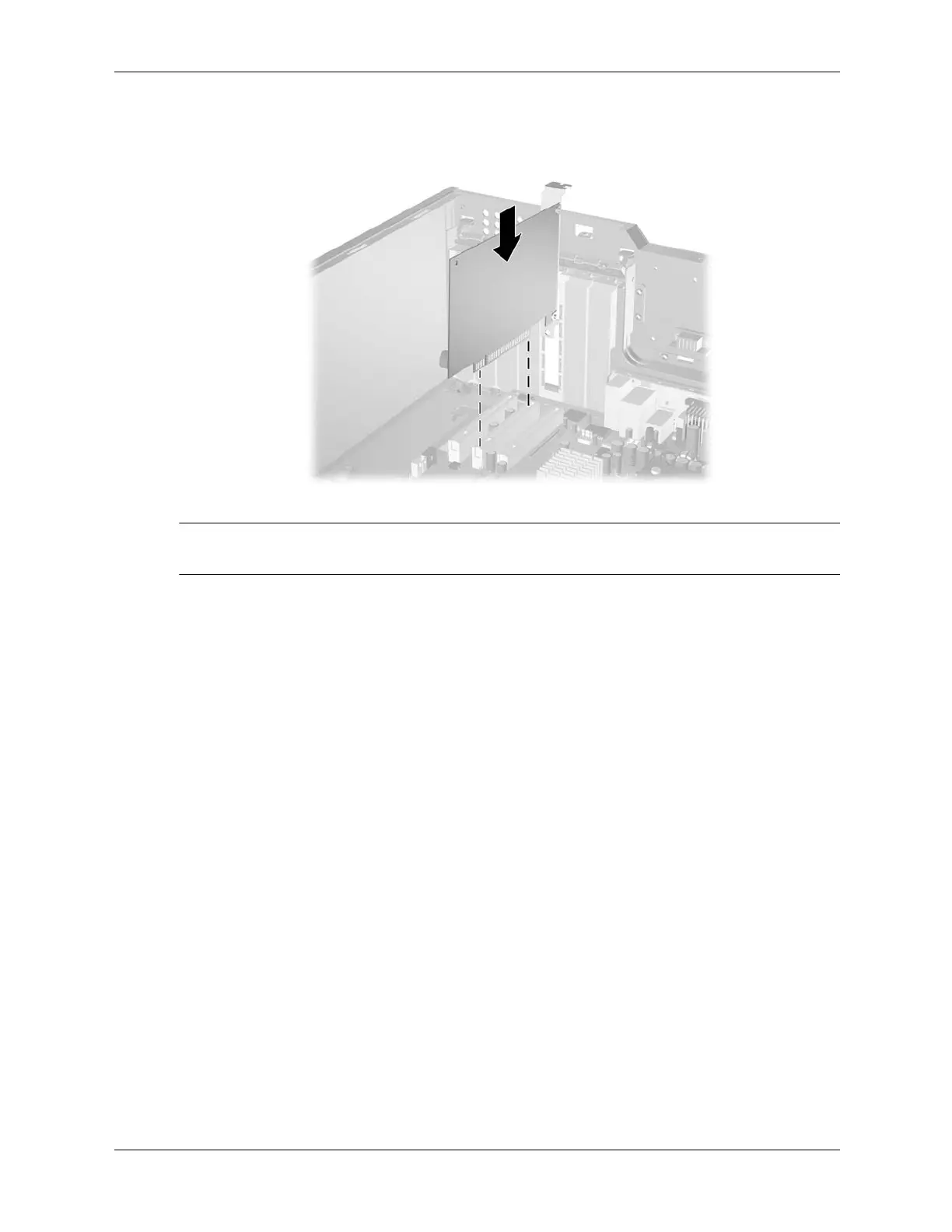

10. Slide the bracket on the end of the expansion card down into the slot on the back of the
chassis and press the card down firmly into the socket on the system board.
✎
When you install an expansion card, make sure you press firmly on the card so that the whole
connector seats properly in the expansion card socket on the system board.
11. Close the expansion slot latch, making sure that it snaps firmly into place.
12. Connect external cables to the installed card and internal cables to the system board as
needed.
13. Replace the computer access panel.
14. If you normally lock the Smart Cover Lock, use Computer Setup to relock the lock and
enable the Smart Cover Sensor.
15. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide on
the Documentation and Diagnostics CD for instructions about using Computer Setup.
