6–4 359782-002 Service Reference Guide, dx2000 uT
Removal and Replacement Procedures— Microtower (µT) Chassis
6.4 Front Drive Bezels
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel (Section 6.3, “Front Bezel”).
3. Remove the front bezel (Section 6.3, “Front Bezel”).
6.4.1 5.25" Drive Bezel Blank

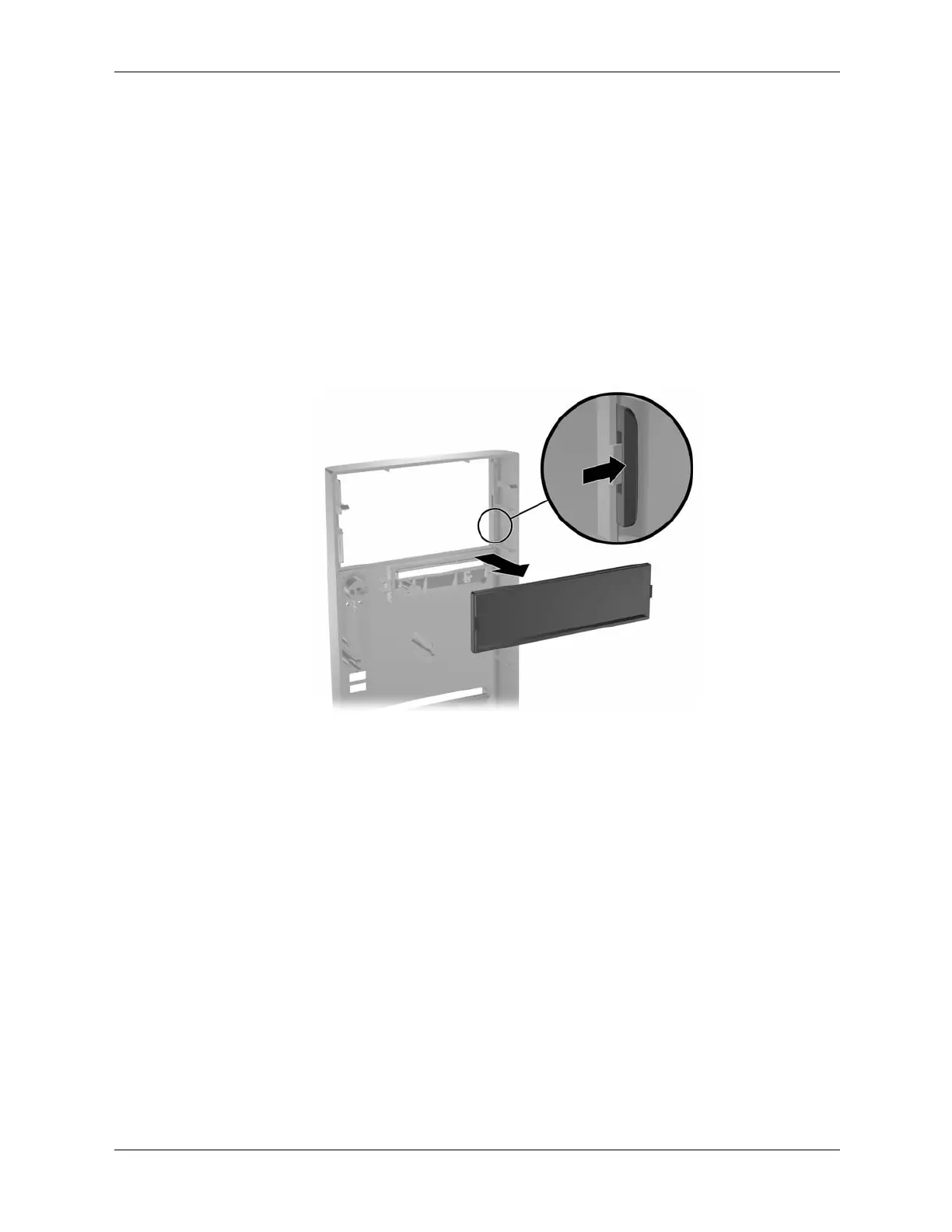

Press one of the retaining tabs on the inside of the large bezel towards the outer edge of the bezel
to release the bezel blank. At the same time, pull the bezel blank inwards to remove it from the
main bezel.
To install a bezel blank, reverse the removal procedure.
