6–16 359782-002 Service Reference Guide, dx2000 uT
Removal and Replacement Procedures— Microtower (µT) Chassis
6.10 Speaker
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the right access panel (Section 6.2, “Access Panel”).
3. Remove the front bezel (Section 6.3, “Front Bezel”).

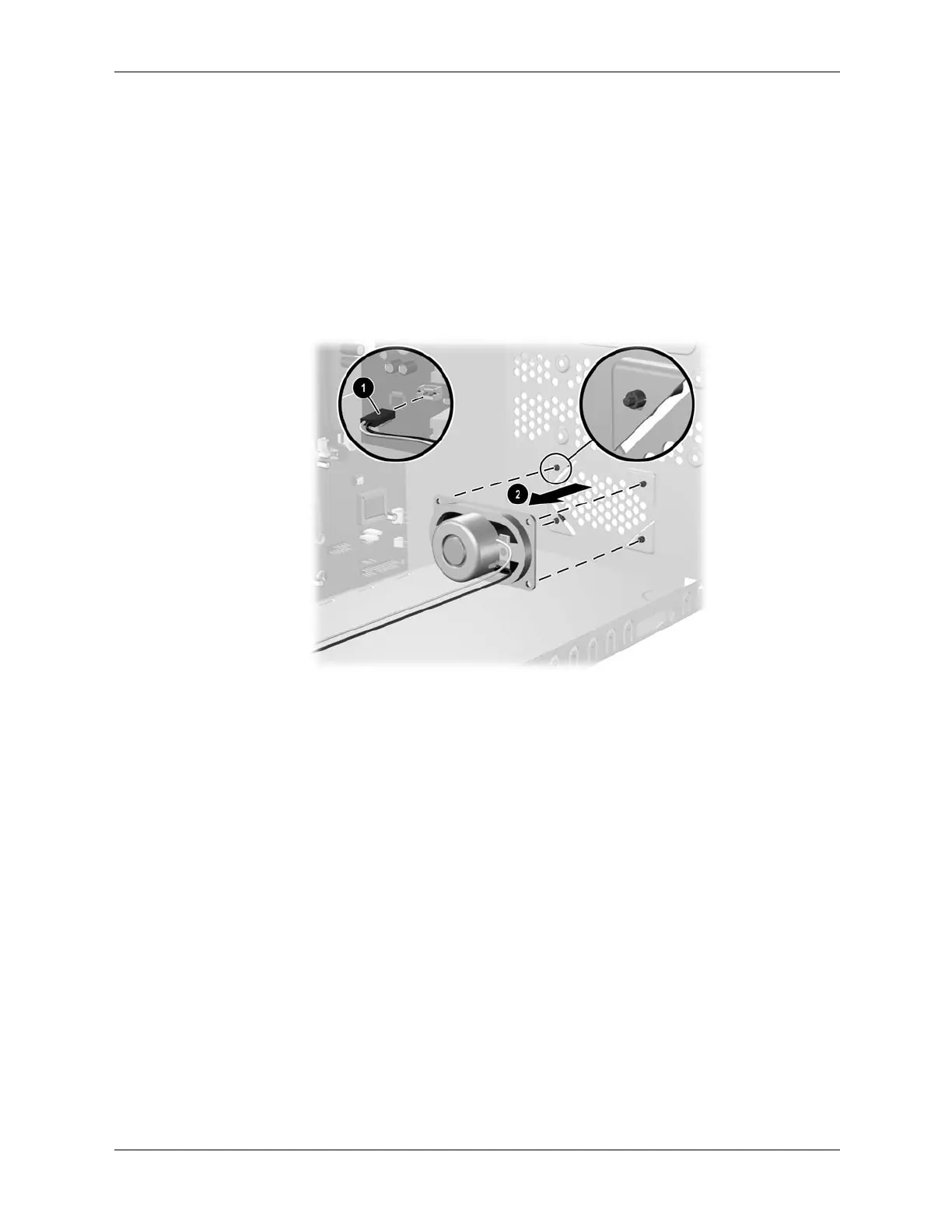

4. Disconnect the speaker cable from the system board 1.
5. From the outside of the chassis pull out the stems of the four push pins to release the
speakers then, remove the speaker 2.
To install the speaker, reverse the removal procedure. To ensure proper alignment, install the
push pins in an X pattern.
