Compaq dx2000 - Microtower PC User Manual

Service Reference Guide, dx2000 uT 359782-002 A–1
A
Connector Pin Assignments
This appendix contains the pin assignments for many computer and workstation connectors.
Some of these connectors may not be used on the product being serviced.

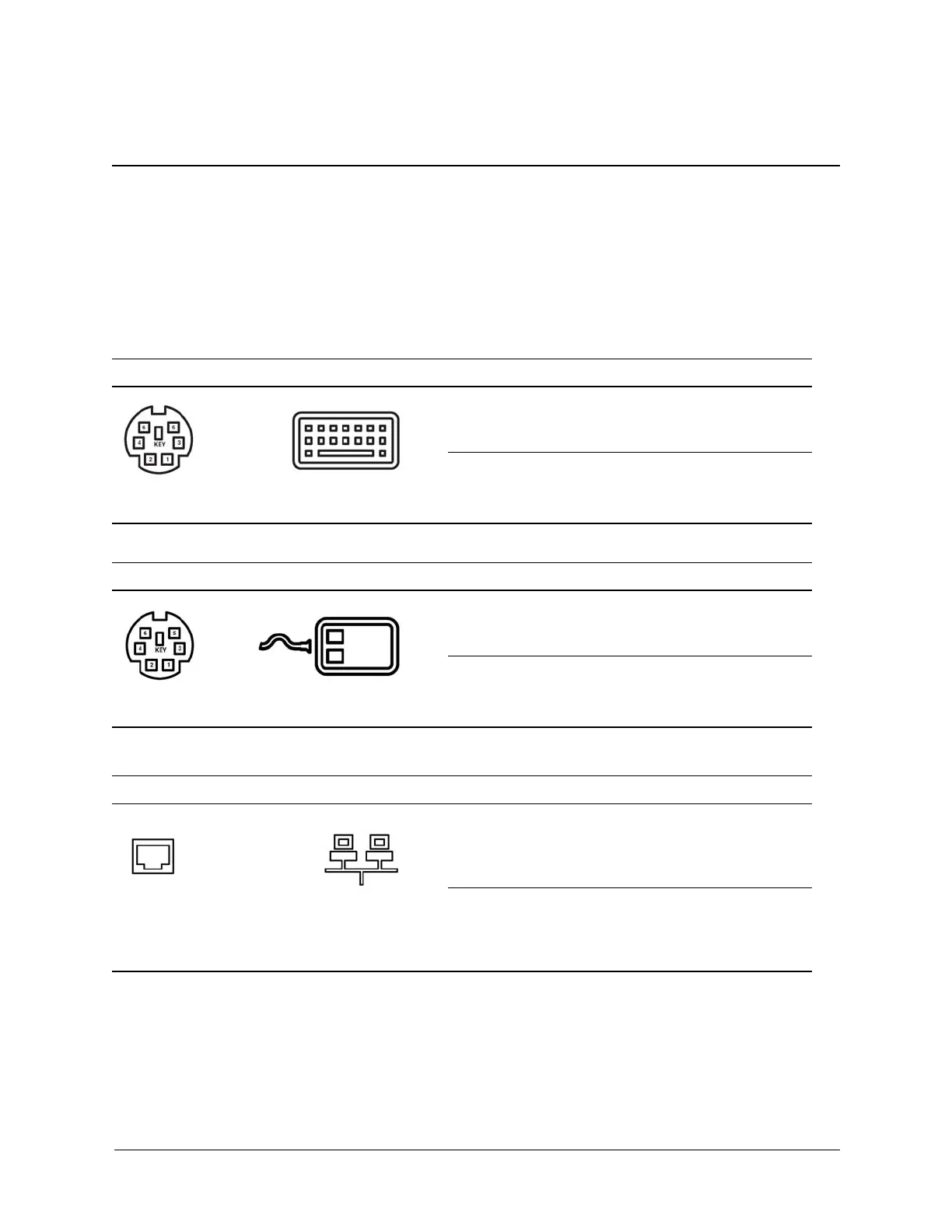

Enhanced Keyboard
Connector and Icon Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Mouse
Connector and Icon Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Ethernet RJ-45
Connector and Icon Pin Signal
1
2
3
4
(+) Transmit Data
(-) Transmit Data
(+) Receive Data
Unused
5
6
7
8
Unused
(-) Receive Data
Unused
Unused
