Servi
ce Ref
erence Guide
, dx2000 u
T
3
5
9
7
8
2
-00
2
6–5
Remo
val and Replacement Procedur
es— Micr
otow
er (µT) Chassis
6.4.2 Disk
et
te Driv
e Bezel

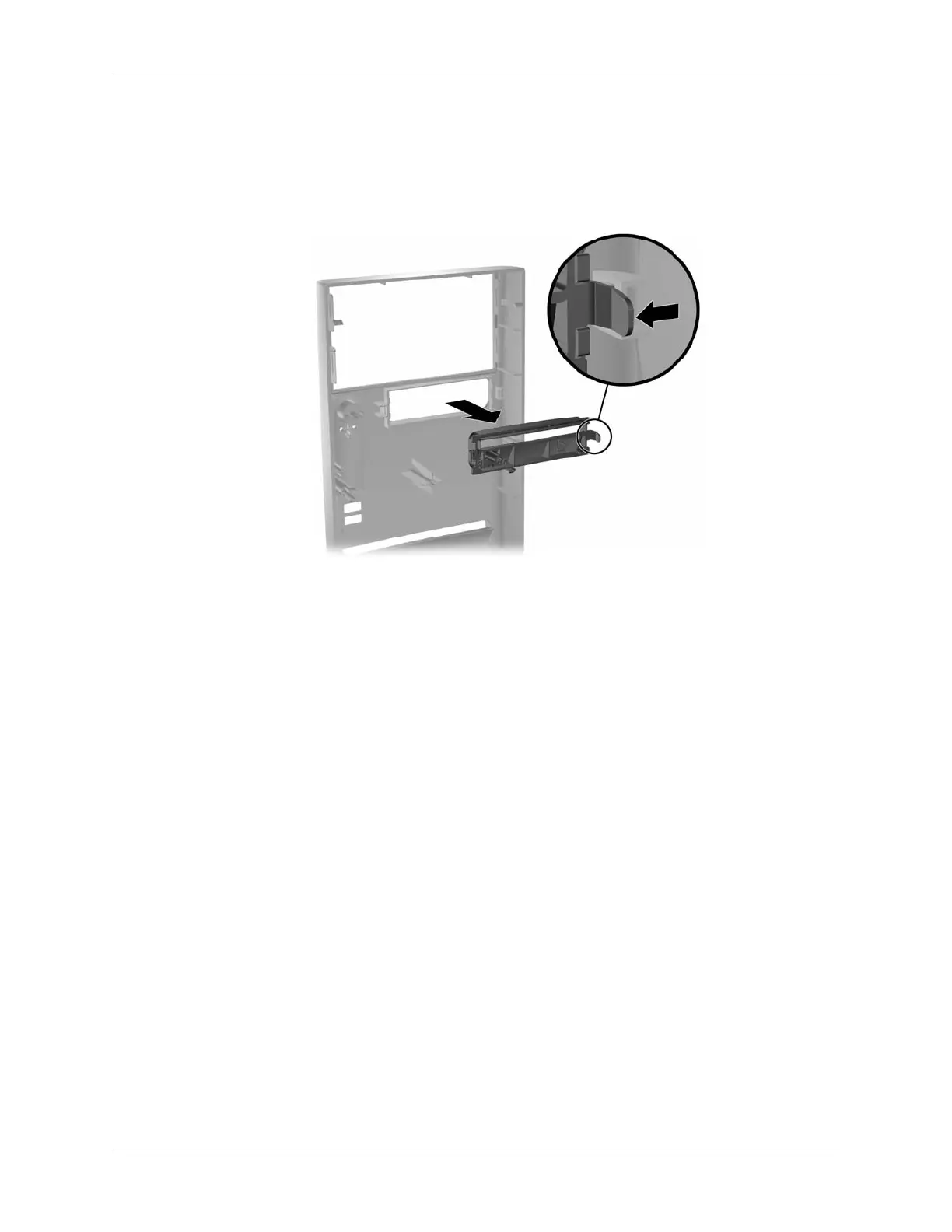

Pull the right retaining tab to
ward
s the center of the main bezel.
At the same time, pull the bezel
inwards to remo
ve it from the main bezel.
T
o install a diskette dri
ve bezel, re
verse the remo
val procedure.
46
48
Table of Contents
Contents
5
Installing the Operating System
9
1.1 Microsoft Windows XP
9
1.1.1 Installing or Upgrading Device Drivers
9
1.2 Converting to NTFS
10
1.2.1 Windows XP Home and XP Professional
10
1.3 HP Software
10
Setup Utilities and Diagnostics Features
11
2.1 Power-On Self-Test (POST)
11
2.2 Computer Setup Utilities
12
2.2.1 Using Computer Setup (F10) Utilities
12
2.2.2 Computer Setup Menu
14
2.3 Protecting the Software
18
2.4 Restoring the Software
18
Desktop Management
19
3.1 Initial Configuration and Deployment
19
3.2 ROM Flash
19
3.2.1 FailSafe Boot Block ROM
20
3.2.2 Dual-State Power Button
20
3.2.3 Power Management
21
3.2.4 World Wide Web Site
21
3.3 Security
22
3.3.1 Password Security
22
3.3.2 Establishing a Setup Password Using Computer Setup
22
3.3.3 Establishing a Power-On Password Using Computer Setup
22
3.3.4 Surge-Tolerant Power Supply
25
Ultra ATA Drive Guidelines and Features
27
4.1 Ultra ATA Jumpers
27
4.2 Ultra ATA Cables
27
4.2.1 Cable Layout
27
4.3 Drive Installation Guidelines
28
4.3.1 Device Classes
29
4.3.2 Attach Sequence Rules by Class Priority
29
4.3.3 Attach Sequence Worksheet
30
4.3.4 Additional Drive Application Notes
32
4.4 SMART
32
4.5 Drive Capacities
33
Identifying the Chassis, Routine Care, and Disassembly Preparation
35
5.1 Chassis Designations
35
5.1.1 Microtower (µT)
35
5.2 Electrostatic Discharge Information
36
5.2.1 Generating Static
36
5.2.2 Preventing Electrostatic Damage to Equipment
36
5.2.3 Personal Grounding Methods and Equipment
37
5.2.4 Grounding the Work Area
37
5.2.5 Recommended Materials and Equipment
37
5.3 Routine Care
38
5.3.1 General Cleaning Safety Precautions
38
5.3.2 Cleaning the Computer Case
38
5.3.3 Cleaning the Keyboard
39
5.3.4 Cleaning the Monitor
39
5.3.5 Cleaning the Mouse
39
5.4 Service Considerations
40
5.4.1 Power Supply Fan
40
5.4.2 Tools and Software Requirements
40
5.4.3 Screws
40
5.4.4 Cables and Connectors
41
5.4.5 Hard Drives
41
5.4.6 Lithium Coin Cell Battery
41
Removal and Replacement Procedures- Microtower (µT) Chassis
43
6.1 Preparation for Disassembly
43
6.2 Access Panel
44
6.3 Front Bezel
45
6.4 Front Drive Bezels
46
6.4.1 5.25" Drive Bezel Blank
46
6.4.2 Diskette Drive Bezel
47
6.5 Memory
48
6.5.1 Installing Memory Modules
48
6.6 Expansion Card
50
6.7 Drives
51
6.7.1 Drive Positions
51
6.7.2 Removing a 5.25" Drive
52
6.7.3 Removing a Diskette Drive
53
6.7.4 Removing the Lower Drive Cage
54
6.7.5 Removing a 3.5" Hard Drive
55
6.8 Front USB Device
56
6.9 Power Switch Assembly
57
6.10 Speaker
58
6.11 System Fan
59
6.12 Processor and Heatsink
60
6.13 System Board
61
6.14 Battery
62
6.15 Power Supply
64
Connector Pin Assignments
65
Power Cord Set Requirements
69
POST Error Messages
71
Troubleshooting Without Diagnostics
75
Memory
101
Index
103
