Service Reference Guide, dx2000 uT 359782-002 6–11
Removal and Replacement Procedures— Microtower (µT) Chassis
6.7.3 Removing a Diskette Drive
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove both the right and left access panels (Section 6.2, “Access Panel”).
3. Remove the front bezel (Section 6.3, “Front Bezel”).
4. Disconnect the power, and data cables from the back of the drive.

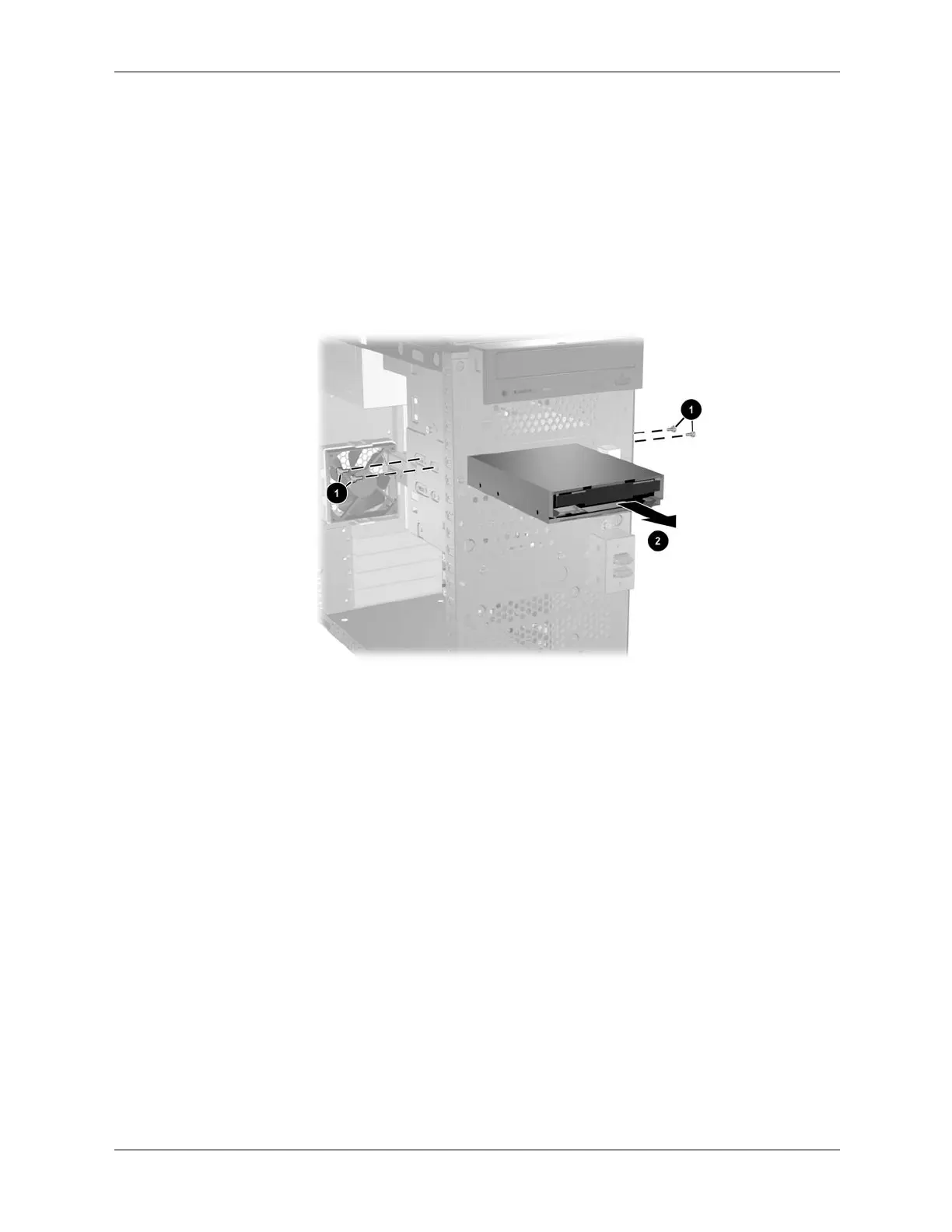

5. Remove the four screws, two from each side, that secure the drive in the drive cage 1.
6. Slide the drive out of the front of the chassis 2.
To replace the diskette drive, reverse removal procedure.
