Compaq EN Series - Appendix D Compaq 10;100 TX PCI Intel WOL UTP Controller Card; D.1 Introduction

Technical Reference Guide
Compaq Personal Computers
Changed - June 1998
D-1
Appendix D
COMPAQ 10/100 TX PCI INTEL
WOL UTP CONTROLLER CARD
D. Appendix D Compaq 10/100 TX PCI Intel WOL UTP Controller Card
D.1 INTRODUCTION
This appendix describes the Compaq 10/100 TX PCI Intel WOL UTP Controller card (# 323550-
001). Key features of this card include:
♦ Intel 82558 Fast LAN controller with 32-bit architecture and 3-KB TX/RX buffers.
♦ Dual-mode support with auto-switching between 10BASE-T and 100BASE-TX PHY.
♦ Power down and Wake up support in both APM and ACPI environments (PME- and WOL).
♦ LED indicators for link, activity, and speed status.
♦ LanDesk Service Agent (LSA) ver 2.0 boot code contained in on-board flash memory.
The card installs into a PCI slot and provides Wake-On-LAN (WOL) support.
This appendix covers the following subjects:
♦ Functional description (D.2) page D-2
♦ Configuration/control (D.3) page D-5
♦ RJ-45 connector (D.4) page D-5
♦ Specifications (D.5) page D-5

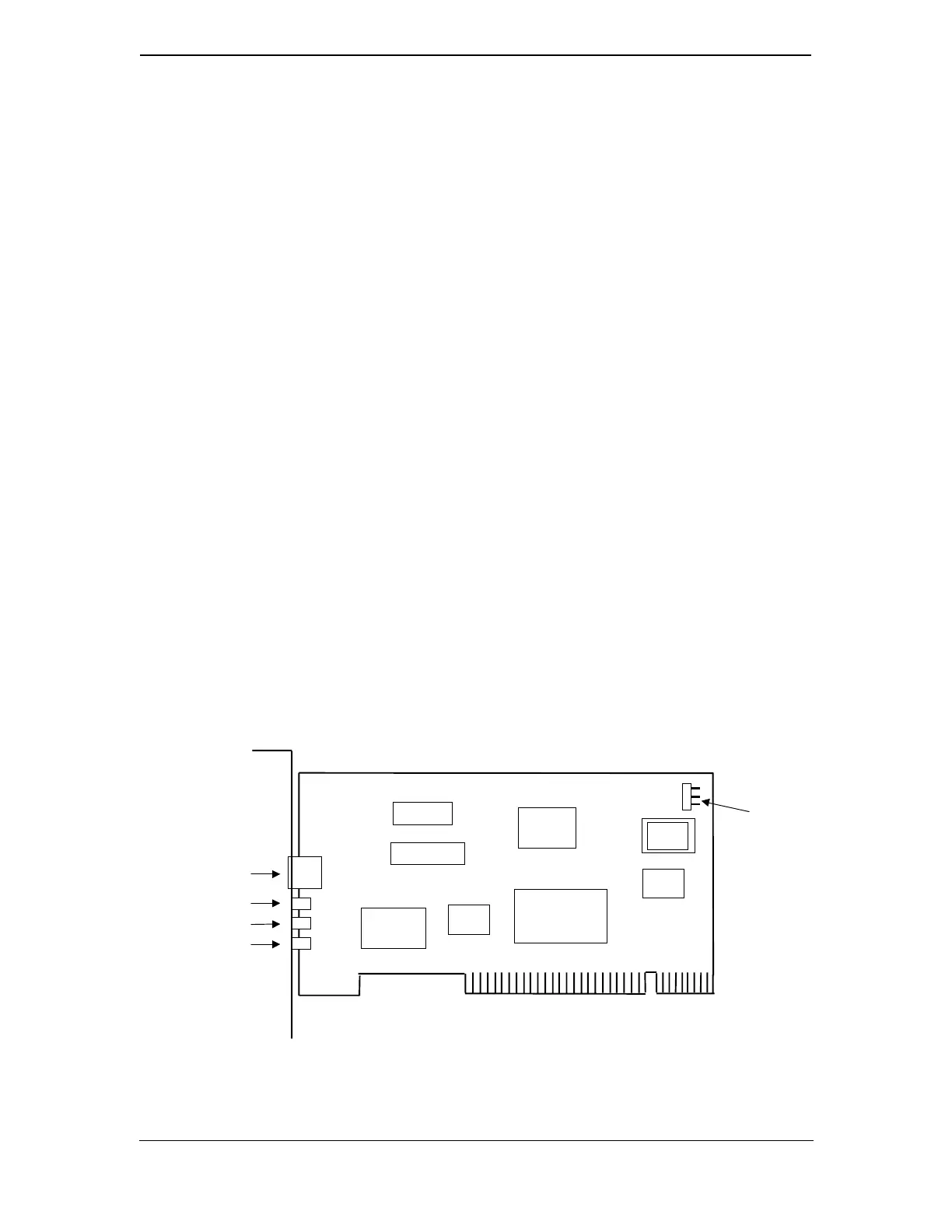

Figure D–1.
Compaq 10/100 TX WOL Controller Card Layout (PCA# 323550-001)
WOL Header
RJ-45
Connector
Link LED
Activit
y
LED
100TX LED
82558
LAN
Controller
