Technical Reference Guide
Compaq Deskpro EN Series of Personal Computers
Desktop and Minitower Form Factors
Third Edition - September 1998
2-5
Item Function
1 AC Line In Connector
2 Smart Cover Lock Screws
3 Line Voltage Switch
4 USB Interface Port B
5 USB Interface Port A
6 100TX speed LED
7 Activity LED
8Link LED
9 NIC Connector
10 SCSI connector
11 Audio Headphone Input
12 Audio Microphone Input
13 Audio Line Output
14 Audio Line Input
15 Keyboard Connector
16 Mouse Connector
17 Parallel Interface Connector
18 Serial Interface Connector (COM1)
19 Serial Interface Connector (COM2)
20 Graphics Monitor Connector

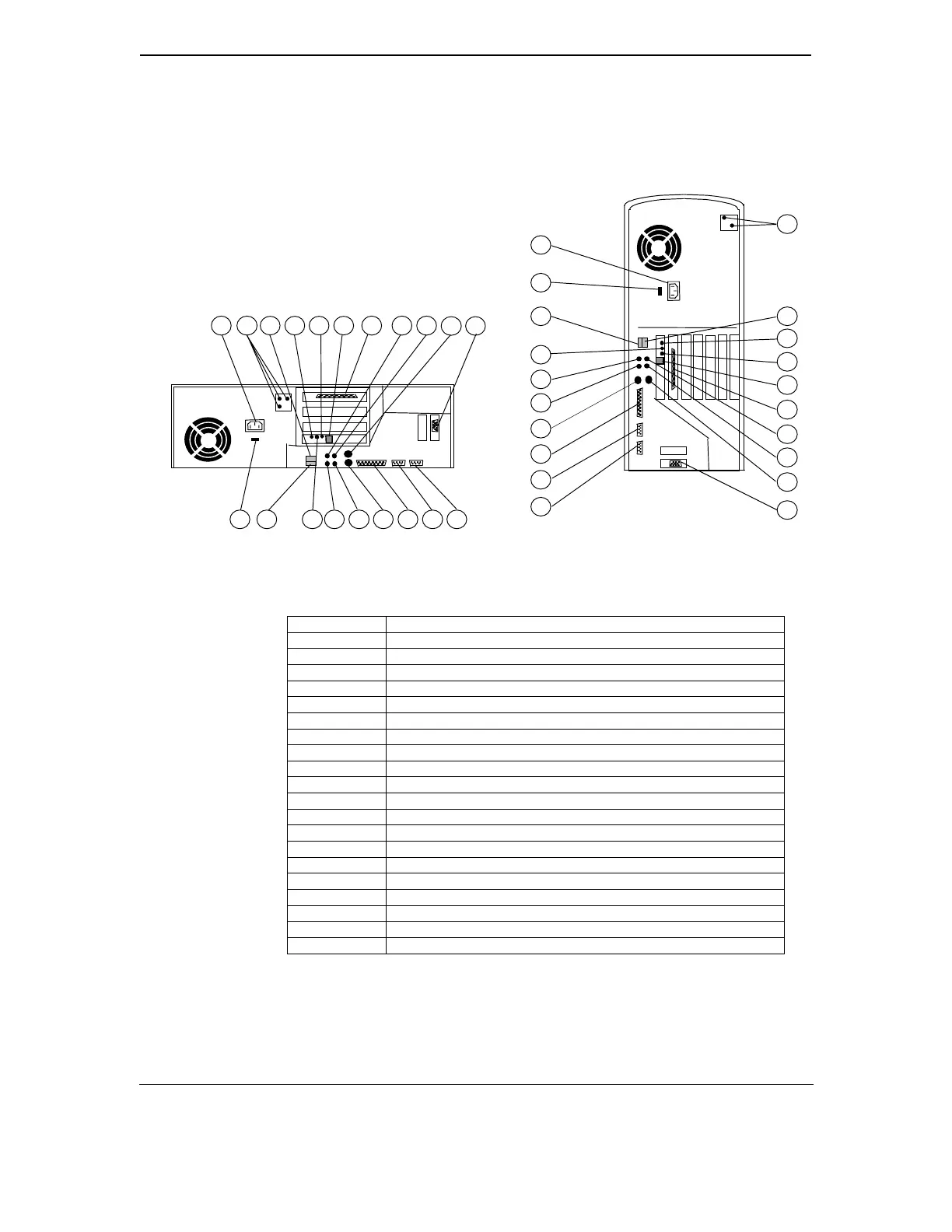

Figure 2–3. Cabinet Layouts, Rear View
Minitower
1
8
7
6
5
4
2
3
9
11
12
13
15
2
3 5
7
8
94
1 16
11 13
10 12 14
6
15
Desktop
17 18 19
20
10
14
16
20
17
18
19
